Onboard logic engine

The trend for image-based code readers is moving toward a “black box” solution with the ability to perform self- and application-diagnostics in real time without connecting to remote software. The O2I5 series includes powerful internal programmable logic to keep you informed…

  • when your printer starts to run out of toner.

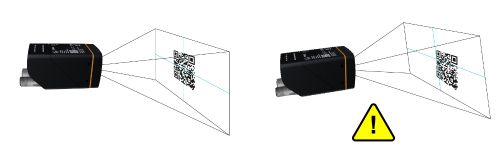

  • when someone knocks the reader out of alignment.

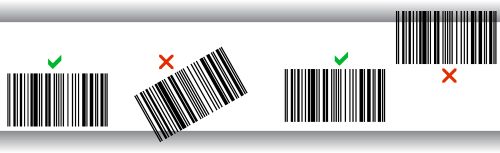

  • when your code starts to draw or skew.

These and many other logic function blocks are available within the Vision Assistant configuration software. To implement them, simply drag and drop the desired function blocks and interconnect them as appropriate.

Local device backup and cloning

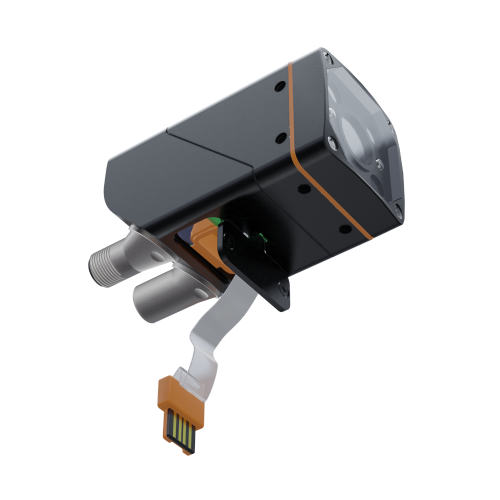

Critical application and configuration data is saved locally in a removable flash drive, providing near instantaneous device cloning. When replacing a damaged sensor or cloning an application for a new location, commissioning time can be completed in less than one minute.

An integrated USB dongle stores up to 18,000 failed images for later diagnostics. Images can be stored with or without corresponding decoding, quality and time stamp data.

The reader is equipped with an integrated web browser for real-time remote access to configuration files, software, failed images and diagnostics.


The O2I5 family includes an electromechanical autofocus, which is optimized during the initial setup. Depending on the size and type of code, the depth of field can vary and still produce a readable code image. Internal testing has shown with autofocus completed at a distance of 200 mm, a ECC200 code and an EAN-13 code were both readable from 100…300 mm.

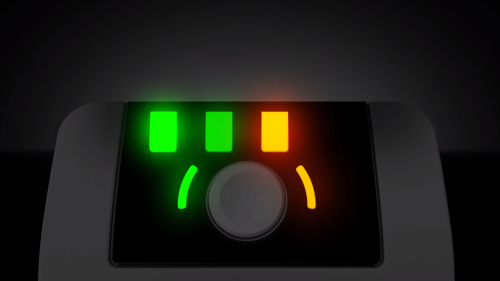

One-button programming

For single codes, the teach button is used to set focus, exposure time and code type. Within seconds, the sensor is ready for use.

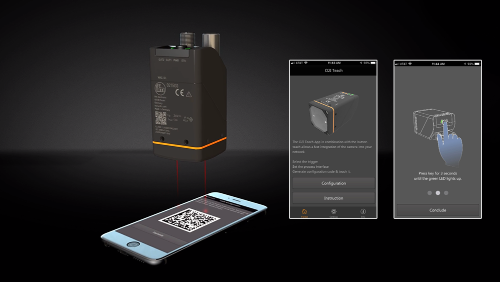

Configuration via smartphone app

A smartphone app (IOS and Android) is available for basic configuration of the device. IP address, trigger and other settings can be changed on the app. Then a data matrix code is created on the smartphone with the configuration. When this code enters the field of view of the reader, the parameters are automatically uploaded and saved to the reader.

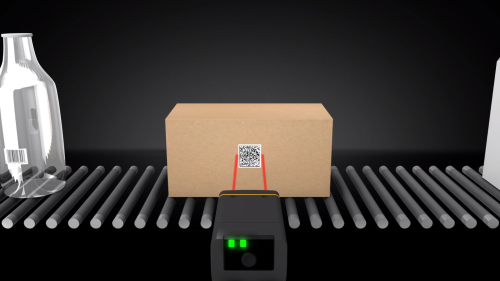

Alignment laser

Parallel alignment laser are used during teach / set-up to make finding codes easy. Laser pointers turn on automatically when using the Teach button. When using the Vision Assistant for set-up, the laser pointers can be toggled on and off in the “Images & Trigger” tab in the “Application” set-up screen. Simply place the code between the two beams.

LED light sources

The code readers come complete with integrated high intensity LED light sources.

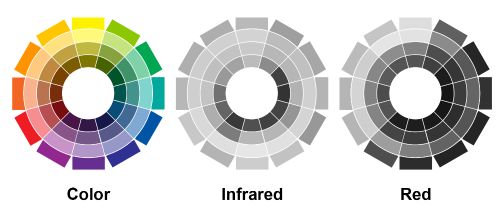

Light type Advantages Disadvantages
Visible red

Best solution for most applications, especially on printed codes with high contrast.
Able to minimize glare and "hot spots" on shiny surfaces.
Best suited for establishing contrast in non-standard color combinations between material background and printed code.

Flashing red light, while not dangerous to personnel, may be unappealing.
Potentially susceptible to large changes in ambient lighting, though still extremely robust.


Best suited for codes applied directly to parts such as dot-peened, engraved, etched, etc.
Less affected by extraneous light, including sunlight.
Color independent, so it is ideal when code color or background changes.
Invisible to human eye, so no impact on personnel in the area.

Color independent, so entire image is washed out.
Not suited for highly reflective or curved surfaces due to glare.


Polarizing LEDs

The optional polarization filter built into the O2I5xxx readers ensures sufficient contrast to reliably read codes printed or dot-peened onto metal surfaces.

When light is reflected from a shiny object to a camera without using a polarization filter, glare can make the code difficult to read.

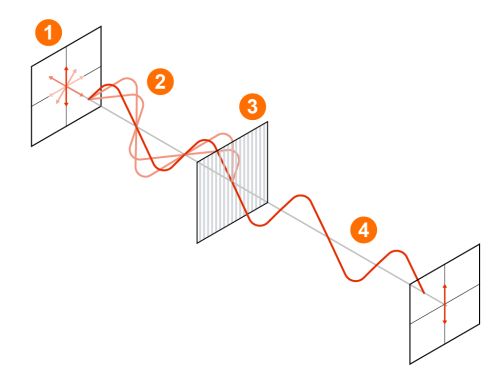

All light sources (1) emit waves in all directions. This is unpolarized light (2). When the light passes through a polarization filter (3), all waves are blocked except that in the orientation of the filter (4).

Within the Vision Assistant configuration software, the LEDs and polarization filters can be turned off and on to provide the most reliable image.

List of codes

The following codes can be detected and evaluated by the O2I5 family of readers
Interleaved 2-of-5 Codabar EAN13 Add-On 5 UPC-E Add-On 5 GS1 DataBar Expanded
Industrial 2-of-5 EAN8 UPC-A GS1 DataBar Omnidirectional GS1 DataBar Expanded Stacked
Code 39 EAN8 Add-On 2 UPC-A Add-On 2 GS1 DataBar Truncated GS1 - 128
Code 93 EAN8 Add-On 5 UPC-A Add-On 5 GS1 DataBar Stacked ECC200
Code 128 EAN13 UPC-E GS1 DataBar Stacked Omnidirectional PDF-417
Pharmacode EAN13 Add-On 2 UPC-E Add-On 2 GS1 DataBar Limited QR
Micro-QR Aztec Code GS1 ECC200 GS1 QR Code GS1 Aztec Code


Other specifications

CMOS imager resolution 1280 x 960 pixels
Communication EtherNet/IP, TCP/IP, ProfiNet
Available I/O

1 digital input for triggering

2 configurable digital outputs

Read distance 85...4000 mm
Max inclination to plane 45 °
Max reading rate 40 Hz
