Article no longer available - archive entry

Replaced by: OT5211 – Product comparison: OT5201 / OT5211

Diffuse reflection sensors with background suppression

OTH-CPKG

OT5201

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

Download
Technische Details
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 25; ((24 V))
Protection class II
Reverse polarity protection yes
Type of light Infrared light
Wave length [nm] 950
Outputs
Electrical design PNP
Output function complementary
Max. voltage drop switching output DC [V] 2.9
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 700
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [mm] 50...700; (white paper 200 x 200 mm)
Range adjustable yes
Max. light spot diameter [mm] 35
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -40...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
Mechanical data
Housing rectangular
Dimensions [mm] 75 x 17 x 33
Material Polycarbonat
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Accessories
Accessories (supplied)
Angle bracket: 1 x, E20441
screwdrivers
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC; 4 x 0.34 mm²
Diagrams and graphs

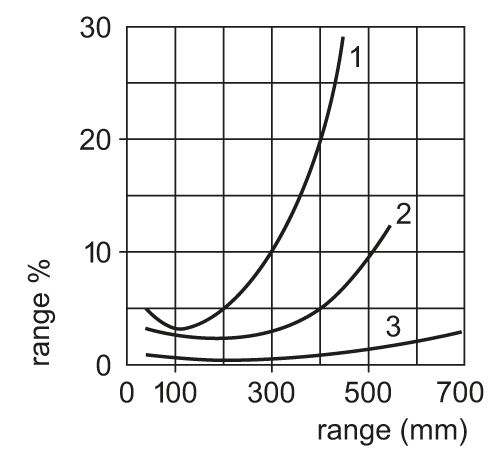

Background suppression chart
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
Note : range % = setting in % of the range
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OT5201-00 — 06.03.2003 —
