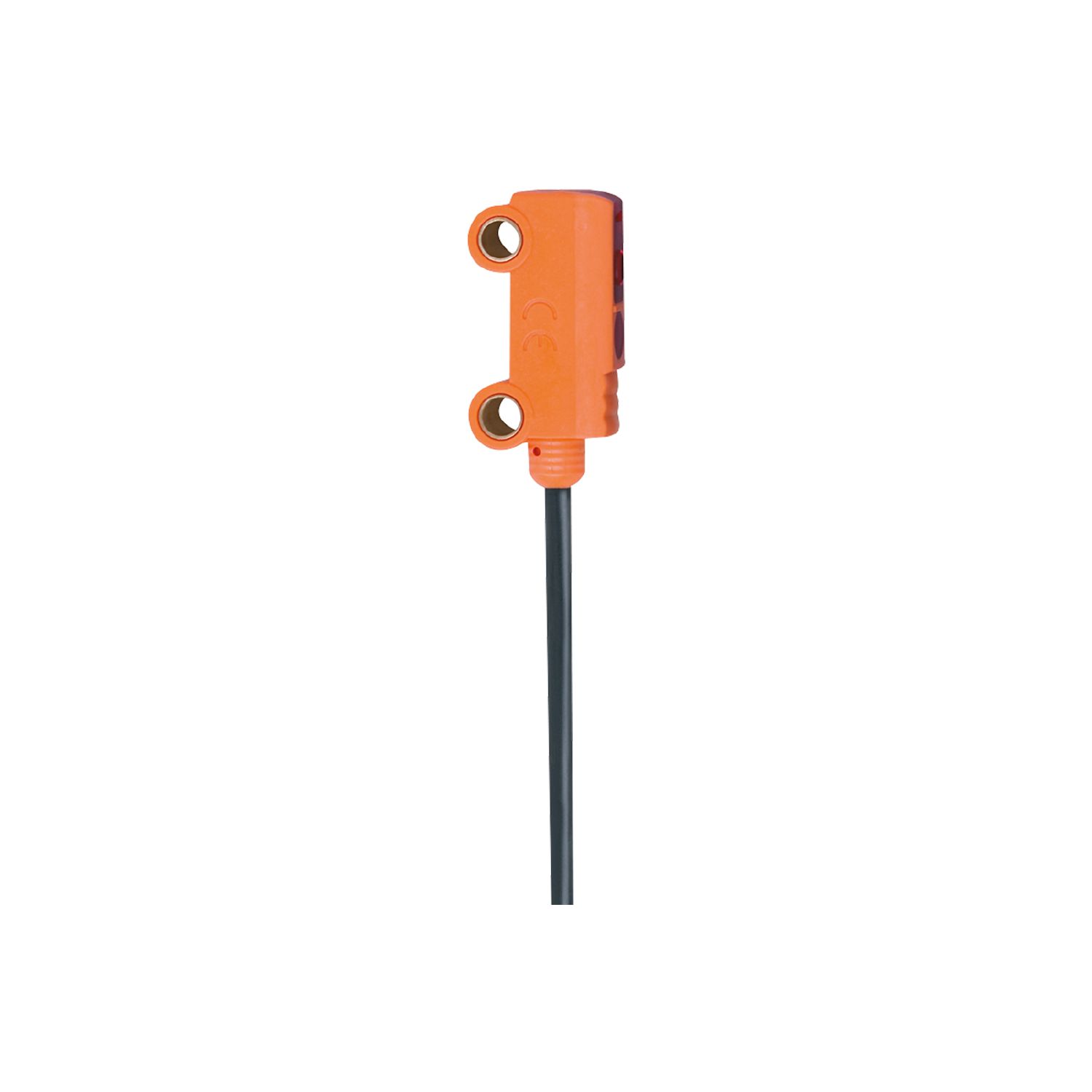

Diffuse reflection sensor with background suppression
OH5018
OHH-HPKG/0,20M/AS
Diffuse reflection sensor with background suppression
OH5018
OHH-HPKG/0,20M/AS
- Короткий корпус для використання в місцях з обмеженим простором
- Надійне виявлення невеликих об'єктів
- Для застосування в робототехніці, технології складання та маніпулювання
- Просте вирівнювання завдяки видимому червоному променю світла
- Негайно готовий до роботи завдяки фіксованому налаштуванню
Article no longer available - archive entry
Alternative articles: O8H202 Product comparison: OH5018 / O8H202 When selecting an alternative article and accessories please note that technical data may differ!
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Typ. lifetime [h] | 75000 |
| Reference temperature for service life [°C] | 25 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Permanent current rating of switching output DC [mA] | 50 |
| Switching frequency DC [Hz] | 800 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range [mm] | 1...15; (white paper 200 x 200 mm 90% remission) |
|---|---|
| Range adjustable | no |
| Max. light spot diameter [mm] | 2.5 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
Response times
| Response time [s] | < 0.6 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...50 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 15 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 25.1 x 7.6 x 12.5 | |
| Materials | ABS | |
| Lens material |
|
|
| Lens alignment | side lens |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 0.2 m, PVC |
|---|---|
| Connection | Connector: 1 x M8; coding: A |
