OG5068

Through-beam sensor receiver

OG5068

OGELFPKG/B2/V4A/US-100

Through-beam sensor receiver

OG5068

OGELFPKG/B2/V4A/US-100

Article no longer available - archive entry

Alternative articles: OGE700 Product comparison: OG5068 / OGE700 When selecting an alternative article and accessories please note that technical data may differ!

Product characteristics

Type of light	red light
Housing	threaded type

Application

Special feature	Gold-plated contacts; Function check output
Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 30
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	675

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Function check output	yes
Max. voltage drop of function check output [V]	3.5
Max. current load for function check output [mA]	10
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	< 6
Range adjustable	yes
Diameter of the smallest detectable object [mm]	1

Operating conditions

Ambient temperature [°C]	-10...50
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Housing

threaded type

Dimensions [mm]

M18 x 1 / L = 72

Thread designation

M18 x 1

Materials

stainless steel (316L/1.4404); PBT

Lens material

PMMA

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green
function	1 x LED, red

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

Diagrams and graphs

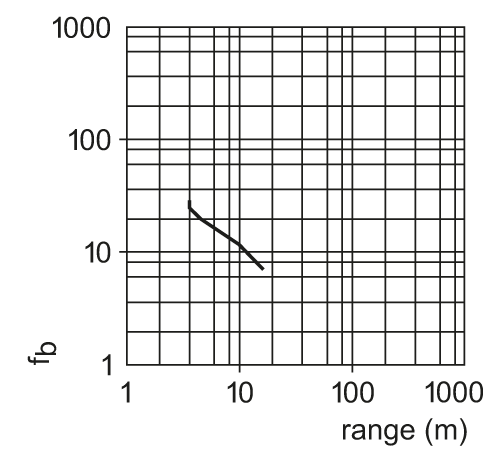

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OG5068-01 — 16.07.2007 —
