Different versions of the intelligent valve positioner are supplied as a comprehensive set, which includes the MVQ301 sensor and control unit, a pneumatic solenoid valve, a throttle plate and a Y cable. Select the best IO-link enabled valve positioner for your application below.

Valve positioner kits for quarter-turn valves

Part number	Valve type	Interface	IO-Link port	Operating pressure	Max. flow rate
ZZ0686	Double-acting	IO-Link	B-port	3...10 bar	1250 L/min
ZZ0701*	Double-acting	IO-Link	B-port	2.5...8 bar	1250 L/min
ZZ0687	Spring-return	IO-Link	B-port	3...10 bar	1250 L/min
ZZ0688	Double-acting with defined safety position	IO-Link	B-port	3...10 bar	1250 L/min

*Designed for harsh environments

Kit components

For all positioner kits
MVQ301	Sensor and control unit

For ZZ0686 - Double acting valves

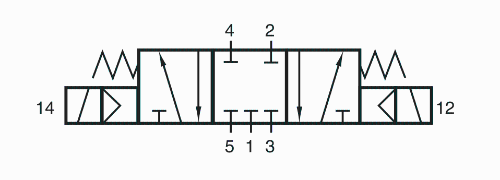

ZJF120	5/3-way dual coil solenoid pilot valve
ZJF122	Throttle plate
EVC508	Y-splitter cable, 5-pin, 0.6 m

For ZZ0701 - Dauble acting valves (harsh environments)
ZJF190	5/3-way dual coil solenoid pilot valve
ZJF191	Throttle plate
EVT440	Y-splitter cable, 5-pin, 0.5 m
For ZZ0687 - Spring-return valves
ZJF121	3/3-way dual coil solenoid pilot valve
ZJF123	Throttle plate
EVC508	Y-splitter cable, 5-pin, 0.6 m

For ZZ0688 - Double acting valves with defined safety positions

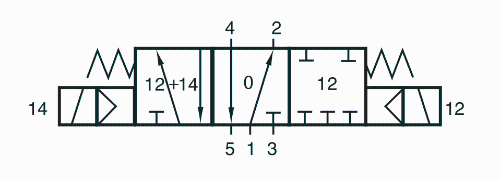

ZJF119	5/3-way dual coil solenoid pilot valve with predefined home position
ZJF122	Throttle plate
EVC508	Y-splitter cable, 5-pin, 0.6 m

Other valve sensors available

ifm's MVQ301 provides precise valve position feedback and real-time positioning to a specific degree.

ifm’s MVQ101 and MVQ201 also offer valve position feedback, with the MVQ201 capable of controlling the opening and closing of solenoid valves. The main difference is that the MVQ301 can set the valve to a specific position, while the MVQ201 can only open or close the valve.

For more information on these other valve sensors, visit the Learn more page.

MVQ sensors
	Interface	Output function	Electrical design	Points to consider

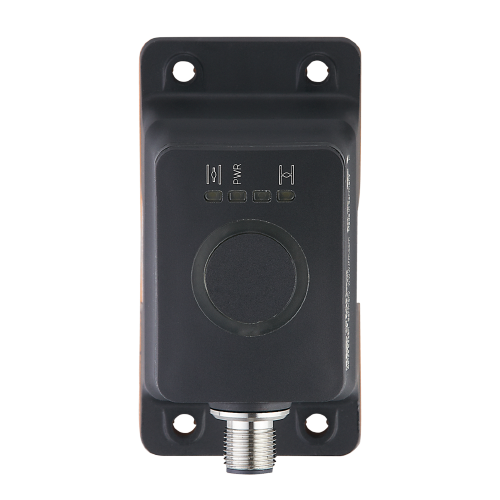

MVQ101	IO-Link	3x normally open/normally closed (selectable)	PNP	1x M12 connectors Continuous valve position feedback 1 digital output for system warning

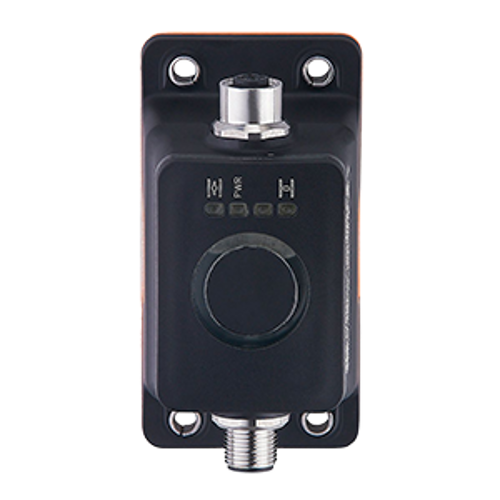

MVQ201	IO-Link	2x normally open/normally closed (selectable) 1x digital input for solenoid control	PNP	2x M12 connectors Continuous valve position feedback with direct control of the solenoid valve Reduced wiring requirements for a simpler installation Control of mono-stable and bi-stable solenoid valves Automatic and PLC teach-in modes for flexible setup On-demand flashing function for easy device identification

Browse the ifm's entire family of valve sensors and valve positioners.
