Connectivity

Connect data from plant floor

To transfer data from sensors on the plant floor to the cloud, IIoT devices are needed. Ethernet field modules, also known as IO-Link masters, serve as gateways, connecting up to eight IO-Link devices such as sensors, valves, or I/O modules. The IO-Link master then connects to the edgeGateway, providing a secure remote connection to your IT infrastructure for seamless data transfer to cloud platforms like ifm moneo, Microsoft Azure IoT Hub, or AWS IoT Core.

Choose the connection that fits your setup

ifm's edgeGateway makes internet connectivity simple by supporting Ethernet, WiFi, and cellular.

Whether you're operating in a well-connected facility, a mobile installation, or a remote field site, you can reliably send critical machine and sensor data from the edge to the cloud.

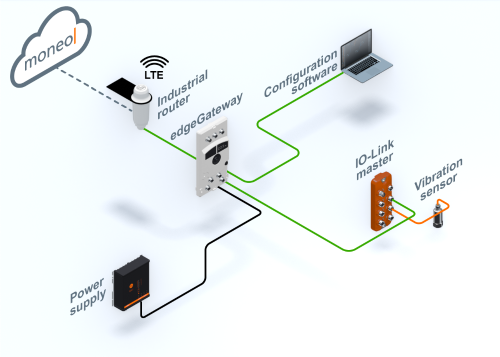

LTE cellular

For installations without access to a local network, LTE provides a direct cellular connection to the cloud. Pair the edgeGateway with ifm’s rugged LTE industrial router, compatible with any nano SIM card, so you can use the provider that best fits your location.

Benefits:

Provides cloud access in off-grid or remote areas
Operates independently of on-site infrastructure
Flexible network provider selection via private SIM

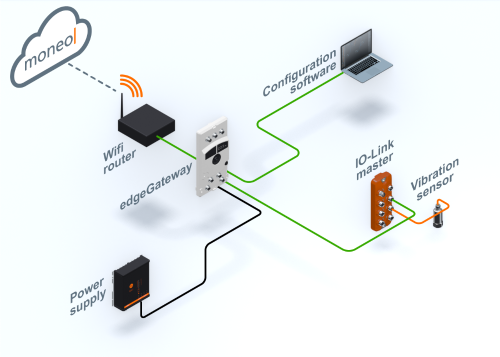

WiFi network

In applications where wired connections are impractical, WiFi allows for convenient wireless connectivity. Use your existing WiFi router to enable cloud access without additional cabling.

Benefits:

Wireless installation for ease and mobility
Integrates with existing WiFi infrastructure
Ideal for mobile or modular system layouts

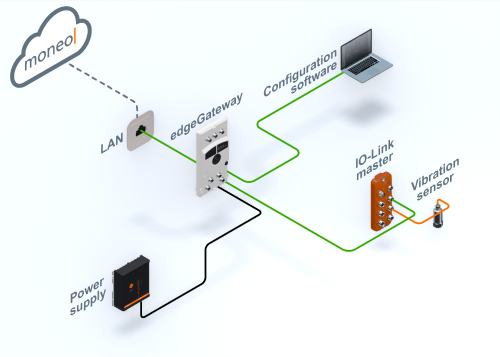

LAN (Ethernet)

If you have an established local network, Ethernet provides a straightforward, wired connection for cloud integration. It’s well suited for stable environments with existing network infrastructure.

Benefits:

Uses existing LAN infrastructure
Consistent and secure connection
Supports continuous data transfer needs

IO-Link masters

Sensor connection

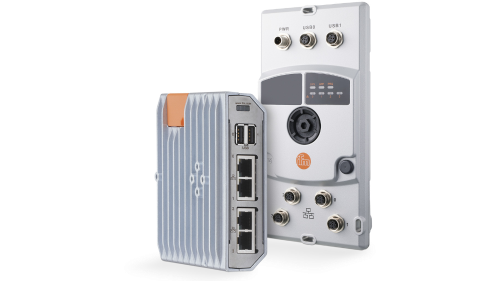

edgeGateways

Cloud connection

LTE wireless router

Internet connection

Article number:
AL13

$377.50 to $503.50
one-time

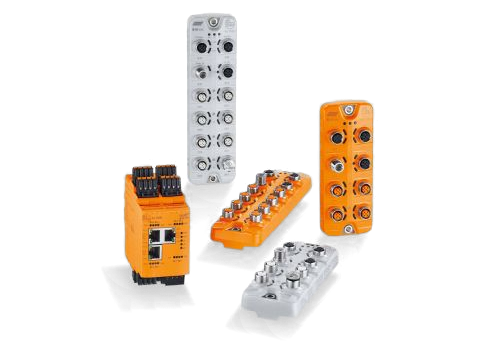

IO-Link masters acquire data from IO-Link enabled sensors and actuators, connecting them to fieldbus systems or higher-level IIoT platforms.

IO-Link simplifies the integration of intelligent sensors and actuators into IIoT platforms, offering several key advantages:

Reduced cable complexity: Connect existing fieldbuses and IIoT systems using the Y-Path, simplifying wiring and installation.
Increased data security: Protect sensitive data with IO-Link’s secure communication mechanisms.
Improved scalability: Easily connect a large number of devices to the IIoT platform.

Article number: AE2100 or AE2400
$902.50 or $1,090 one-time
The edgeController provides seamless integration of system infrastructure with IT, offering flexibility for use as a cloud connector, visualization system, or control system. It also delivers IO-Link data as readable values and units, ensuring smooth integration into your application.
Openness: Fast integration into OT and IT systems Scalability: Can be expanded as required Cyber Security: Comprehensive protection of sensitive data

Article number:
AE9001

$591.50
one-time

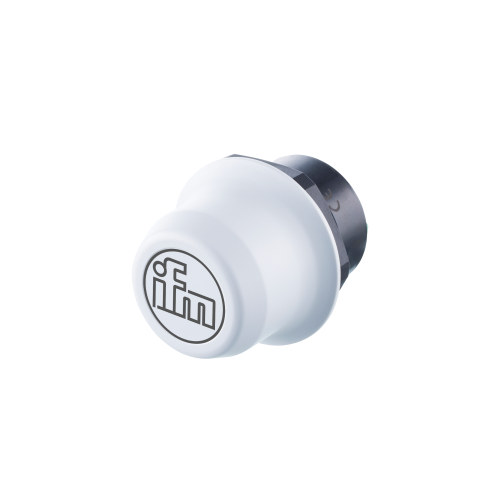

An industrial router that provides high-speed internet access to industrial machines via an LTE (4G) network with 3G fallback. It is designed for industrial use and harsh environments.

Supports locally available SIM-card (LTE Cat-4)
Fast data transfer (up to 100 Mbit/s download, 50 Mbit/s upload)
Supports TCP/UDP-based protocols (e.g., MQTT and OPC UA)
GNSS satellite positioning (GPS, GLONASS, Galileo and BeiDou). 
Built-in firewall, NAT, and DHCP server
