- moneo IIoT platform
- Guidance and support
Get started with moneo
Welcome to the moneo Guide – your introduction to the world of industrial digitalization
With moneo, you take an important step towards smarter production. Our IIoT platform helps you make your machines and processes more transparent, efficient and future-proof. The guide below will guide users to setting up their moneo instances step-by-step.
Whether you are just starting out or already have some experience in the moneo environment, you will find concise explanations, practical tips and helpful links to simplify your startup journey.
Get started by selecting a gateway device below!
| Device | Software module | Description | Access URL | Functions |
|---|---|---|---|---|
io-key |
MIOT (mobile IoT suite) |
moneo instance and contract management portal | https://suite.miot.ifm/ |
|
| moneo | moneo instance: Software as a Service (Saas) Full-featured cloud IIoT platform |
e-us.moneo.ifm/ |
|
|
| Device | Software module | Description | Access URL | Functions |
AE2400 |
MIOT (mobile IoT suite) |
moneo instance and contract management portal | https://suite.miot.ifm/ |
|
| moneo | moneo instance: Working application interface | e-us.moneo.ifm/ |
|
|
| AMS (Appliance Management System) |
edgeGateway management system |
In browser: enter Gateway IP Address: [ETH 0 or ETH 2] [ /ams] |
|
|
| edge|moneo | IIoT edgeGateway |
In browser: enter Gateway IP Address: [ETH 0 or ETH 2] [ /shell] |
|
|
| Device | Software module | Description | Access URL | Functions |

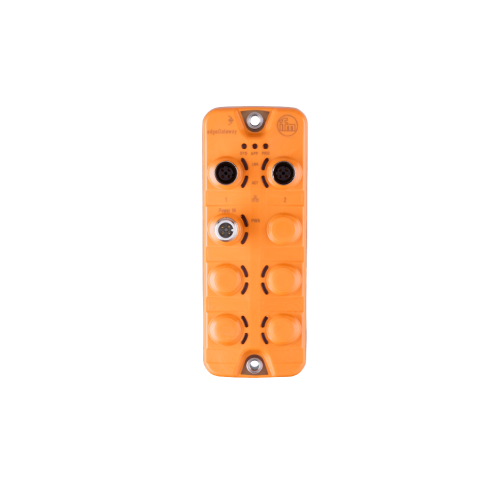

AE1400 |
Coming soon | |||
Using moneo in the cloud
The data is transferred to the moneo Cloud via so-called edge devices. These devices are integrated in your network, they detect sensor data and send these to the moneo Cloud. Depending on the device type, they offer different functions and features.
| Article number | Product | Data flow rate (value/sec.) | Calculated values (calc. values/sec.) | Number of navigation nodes | Max. number of connected field devices | Data flow - interval options | Data flow - aggregation options | Number of smart limits | Parameter setting of connected sensors via the moneo Cloud | Remote maintenance using moneo remoteConnect |
|---|---|---|---|---|---|---|---|---|---|---|

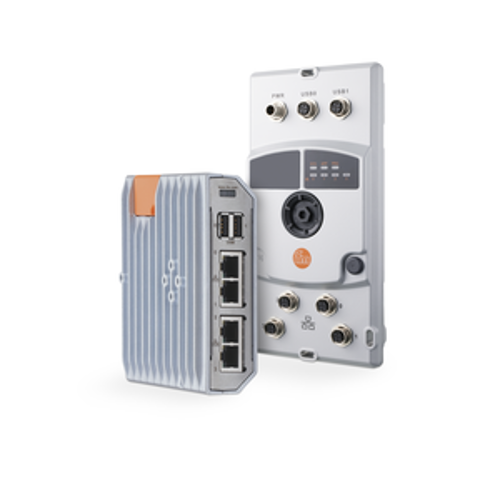

| AE21001.) | IIoT edgeGateway IP20 | 500 | 20 | 20 | 25 |
|
|
0 | Possible | Possible (after manual activation) |
| AE24001.) | IIoT edgeGateway IP67 | 500 | 20 | 20 | 25 |
|
|
0 | Possible | Possible (after manual activation) |

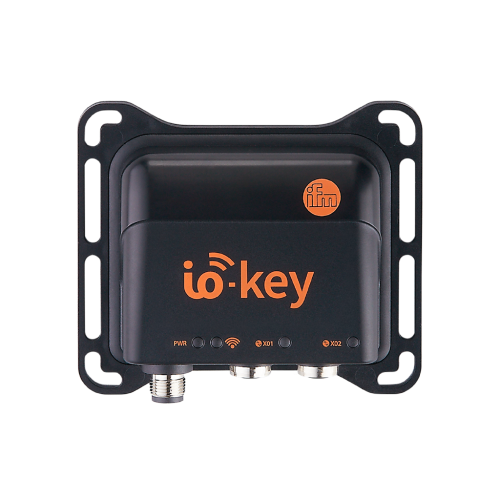

| AIK0501.) | io-key Cellular IoT Gateway | IO-Link sensors can be directly connected to the two available IO-Link ports. *Depending on the selected data tariff, the last value is transmitted to the cloud every 10 or every 60 seconds. |
|
|
0 | Possible | Not possible | |||
1.) For information on the technical details, please click on the article number.
