  1. PL industrial pressure transmitters
  2. Select products

Select the best solution for your application

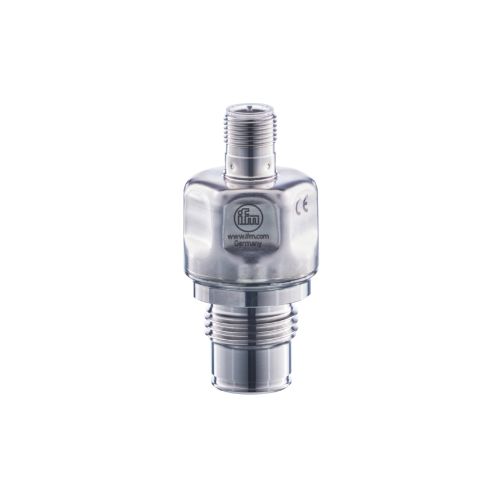

PL15 sensors with G½ BSPP process connection

  Part no. Pressure range
(psi)		 Signal Points to consider
PL1507 -0.73...14.5 • Transmitter

• IO-Link

• 4...20 mA scalable analog via IO-Link

• Temperature measurement via IO-Link

• G½ BSPP process connection

• Medium temp. -25...110 ºC
PL1506 -1.81...36
PL1515 -14.5...87
PL1504 -14.5...145
PL1514 -14.5...232
PL1503 -14.5...363
PL1543 -14.5...580
PL1523 0...870
PL1502 0...1450
PL1512 0...2320
Accessories for PL15 sensors
  Part no. Description
E30509 Welding adapter, Ø32 mm
E43440 Welding mandrel
E30516 1" NPT adapter
Rear sealing ring, ID Ø18.5 mm, OD Ø23.9 mm
E30492 FKM (Supplied with sensor)
E30451 EPDM
E30513 FFKM
Sealing ring alternatives for use without ifm adapters
Front sealing ring, ID Ø16.4 mm, OD Ø18.4 mm
E30510 FKM
E30511 EPDM
E30512 FFKM

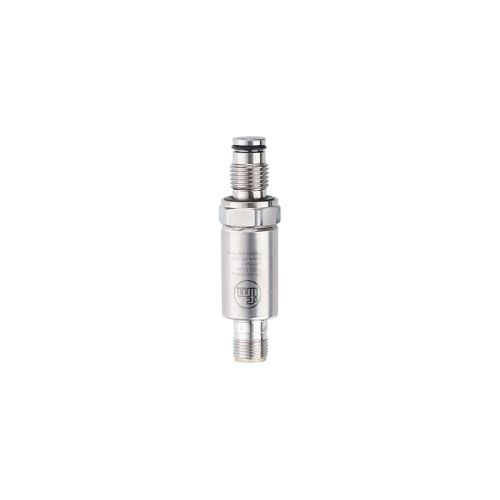

PL54 sensors with G¼ BSPP process connection

  Part no. Pressure range
(psi )		 Signal Points to consider
PL5423 0...870 • Transmitter • 4...20 mA fixed analog

• G¼ BSPP process connection

• Medium temp. -20...90 ºC
PL5402 0...1450
PL5412 0...2320
PL5401 0...3625
PL5400 0...5800
Accessories for PL54 sensors
  Part no. Description
E30503 Welding adapter, Ø35 mm
E30508 Welding mandrel
E30521 ½" NPT adapter
Sealing ring alternatives
Front sealing ring, ID Ø8.5 mm, OD Ø11.5 mm
E30517 FKM (Supplied with sensor)
E30519 EPDM
E30518 FFKM
Rear sealing ring, ID Ø11.6 mm, OD Ø16.5 mm
E30145 FKM (Supplied with sensor)
E30442 EPDM
E30520 FFKM

Other solutions for flush mounted pressue applications

  Pressure range
(psi)		 Signal Points to consider

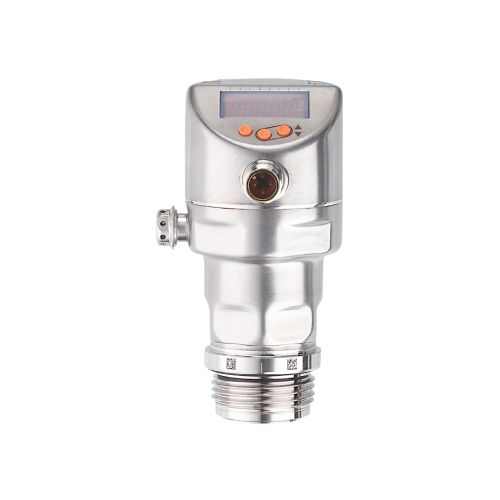

PIxxxx		 -14.5...363
(PI2602 - 1450 psi)		 • Transmitter
• Switch
• IO-Link		 • Numeric display with status LED
• 4...20 mA scalable analog via IO-Link or pushbuttons
• Approvals for use in Food and Beverage applications
• inH2O range available
• G1 BSPP process connection
• Various process adapters available

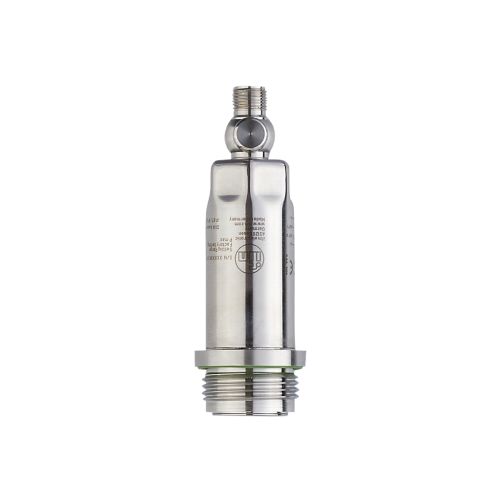

PM17xx		 -14.5...363
(PM1602 - 1450 psi)		 • Transmitter
• IO-Link		 • 4...20 mA scalable analog via IO-Link or pushbuttons
• Approvals for use in Food and Beverage applications
• inH2O range available
• G1 BSPP process connection
• Various process adapters available

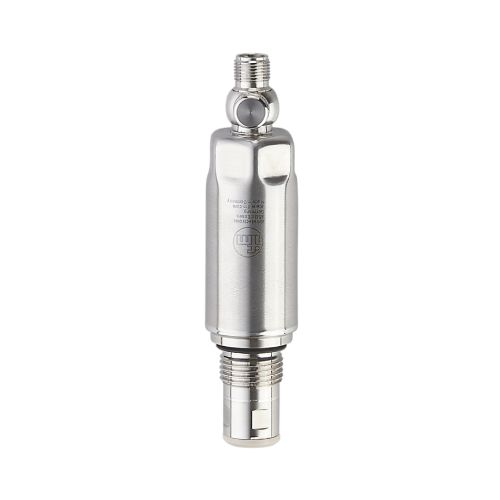

PM15xx		 -14.5...580 • Transmitter
• IO-Link		 • 4...20 mA scalable analog via IO-Link or pushbuttons
• Approvals for use in Food and Beverage applications
• Temperature measurement via IO-Link
• G½ BSPP process connection
• Various process adapters available
