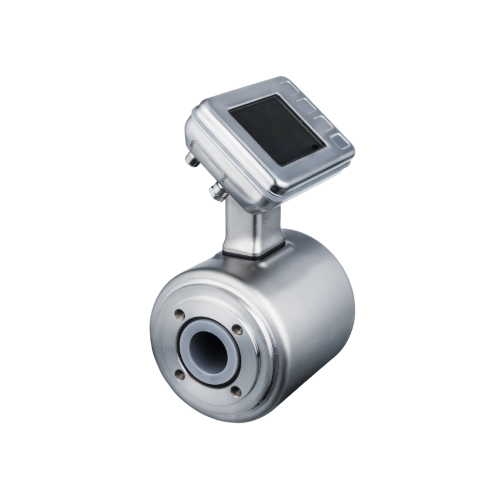

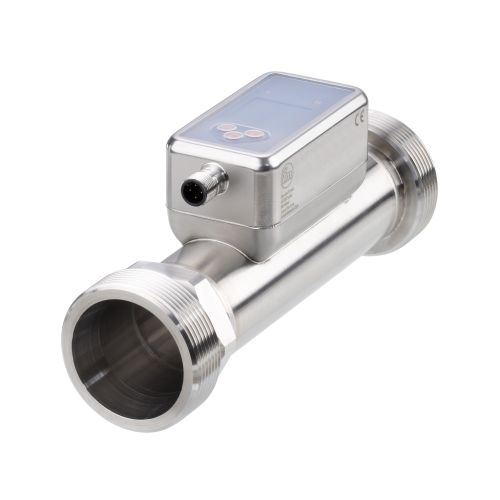

Magmeters and other water flow meters from ifm measure use purely digital signals via IO-Link to provide high-accuracy measurements. They also feature on-the-fly recipe changes and device adjustment.
Choose the best sensor for your needs and visit the magmeter setup and support page for installation guides.

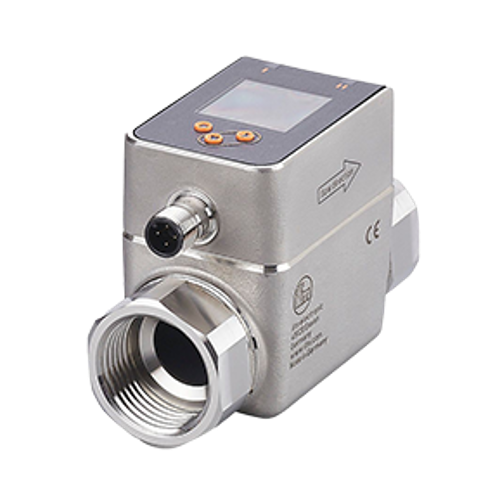

Part number | Process connection | Measuring range | Internal gasket material | |
---|---|---|---|---|
SM4020 | G 1/4 (BSPP) | 5...5000 ml/min | FKM | |
SM4120 | EPDM | |||
SM6020 | G 1/2 (BSPP) | 0.05...35 lpm 0.01...9.25 gpm |
FKM | |
SM6120 | EPDM | |||
SM6621 | 1/2" NPT | FKM | ||
SM7020 | G 3/4 (BSPP) | 0.1...75 lpm 0.02...19.82 gpm |
FKM | |
SM7120 | EPDM | |||
SM7621 | 3/4" NPT | FKM | ||
SM8020 | G 1 (BSPP) | 0.2...150 lpm 0.06...39.6 gpm |
FKM | |
SM8120 | EPDM | |||
SM8621 | 1" NPT | FKM | ||

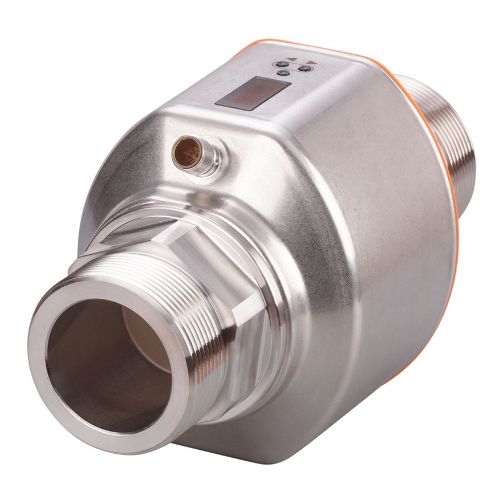

SM9000 | G 2 (BSPP) | 5...300 lpm | FKM | |
SM9100 | EPDM | |||
SM9001 | 1.3...80 gpm | FKM | ||
SM9601 | 1 1/2" NPT | FKM | ||
SM2000 | G 2 (BSPP) | 5...600 lpm | FKM | |
SM2100 | EPDM | |||
SM0510 | 5...900 lpm | FKM | ||
SM2130 | EPDM | |||
SM2001 | 1.3...160 gpm | FKM | ||
SM2601 | 2" NPT | FKM |
More options of SM sensors are available here. For versions that have dual analog outputs, please check out the SMxxx4 part numbers. |
FKM = Fluoroelastomers
EPDM = Ethylene Propylene Diene Monomer
Part number | Description |
---|---|
US0059 | 1/4" NPT adapters for SM4 |
US0049 | 1.5" Tri-clamp adapter for SM8 units with G 1 process connection |
US0030 | 2" Tri-clamp adapter for SM8 units with G 1 process connection |
US0053 | 1.5" Tri-clamp adapter for SM9 / SM2 units with G 2 process connection |
US0043 | 2" Tri-clamp adapter for SM9 / SM2 units with G 2 process connection |
E40234 | Grounding clamp for installation on plastic or ungrounded pipes |
E40249 | Mounting plate for units with the TFT display housing style |
ZH4217 | Totalizer reset kit with push button |
E80121 | Plug-in 1 A power supply |
Sensor Family | Flow Rate | Line Size | Medium Temperature | Accuracy | Points to Consider |
---|---|---|---|---|---|
SV |
0.26…26.4 gpm | 1/2"…3/4" | 14…194 °F -10…90 °C |
~ ±2% | • Display flow and temperature • Water content ≥ 95% • Pressure rating ≤ 174 psi • Long straight pipe required |
SA |
0.1…5400 gpm | 1/2"…16" | -4…212 °F -20…100 °C Higher upon request |
~ ±10% | • Pressure ≤ 1450 psi • Avoid rapid medium temperature changes |
SB |
0.1…50 gpm | 3/4"…1-1/2" | 14…212 °F -10…100 °C |
~ ±5% | • No straight pipe runs required • Response time ≤ 10 msec • Pressure ≤ 580 psi |
SI |
3…100 cm/s | 1/8"…8" | -13…176 °F -25…80 °C |
~ ±10% | • Pressure < 4350 psi • Sanitary versions available • Avoid rapid medium temperature changes |
