Sensor family | Temperature range | Insertion length | Process connection | Signal | Visualization | Points to consider |
---|---|---|---|---|---|---|

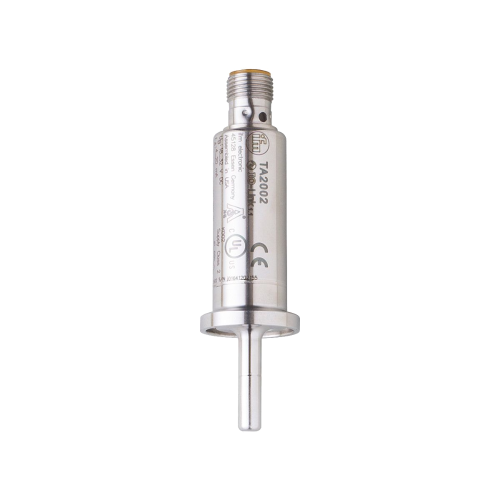

TA20 |
-58…392 °F -50…200 °C |
1"…2.4" | Clamp DN10...DN20 (1/2...3/4") | Transmitter IO-Link |
Status LED | • ±0.54 °F accuracy • One piece stainless steel construction • Ultra fast (0.5/2 sec) response time |
TA22 |
2" ... 13.8" | Ø 6 mm probe | ||||

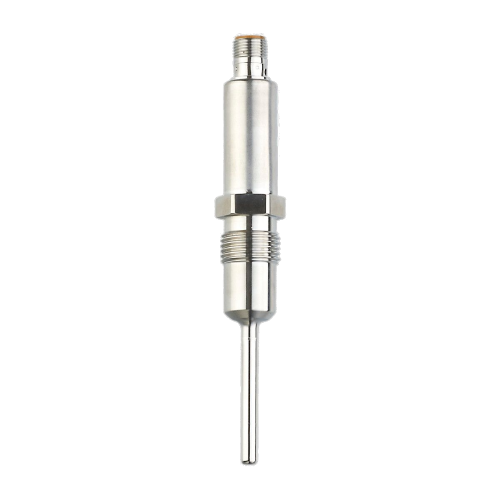

TA25 |
1.2" ... 5.9" | G 1/2 sealing cone | ||||

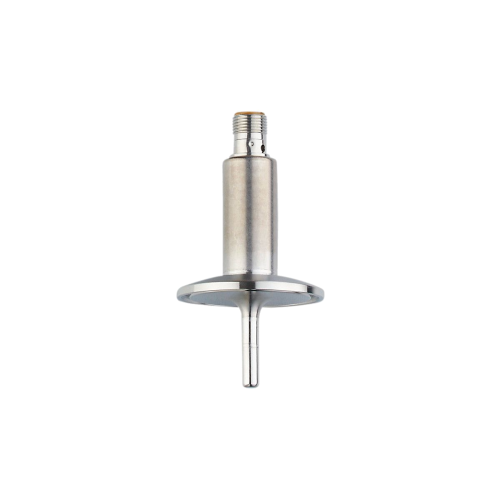

TA28 |
Clamp DN25...DN40 (1...1,5") |
Thermowells protect temperature sensors against harmful influences and make it possible to replace sensors in the running process. Check out thermowells for sanitary applications.
Sensor family | Temperature range | Insertion length | Signal | Construction | Visualization | Points to consider |
---|---|---|---|---|---|---|
TCC |
-13...320 °F -25…160 °C |
1.2"...21.7" | Transmitter | Integrated | Large status LED | • Dual element • Auto drift detection • Digital data values • ± 0.36 °F accuracy |
TD |
-58...302 °F -50…150 °C |
1.18"…6" | Transmitter | Integrated | Numeric display | • ± 0.54 °F accuracy • One piece stainless steel construction • 4-digit display • Fast (1/3 sec) response time |
TM |
-40...302 °F -40...150 °C |
1.18"…6" | RTD | 6 mm RTD probe with integrated process connector | – | • Class A accuracy Pt100 • M12 connection for easy wiring • Integrated process connection |
