PM flush mount pressure transmitters
Select products
PM17 - 1" sensor connection

Transmitters with 1" connection

The PM17 family of sensors come with an external G1 aseptoflex vario process thread. Explore the table below to determine which part number you need based on the pressure range in your application. Additionally, explore the range of accessories for this product line, including cordsets, process adapters, replacement O-rings, and vent protection. Then, follow our installation guidelines for seamless integration into your facility.

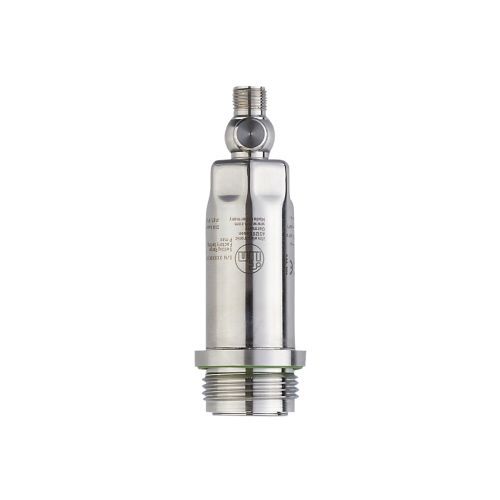

PM17 digital or analog, 4...20 mA (scalable)
Part No.	Factory default range (psi)	Full range (psi)	IO-Link range (psi)	IO-Link resolution (psi)	Overload / burst pressure (psi)
PM1789	0...40 inH₂O	-2...40 inH₂O	-4...42.15 inH₂O	0.008 inH₂O	58 / 435
PM1708	0...100 inH₂O	-5...100 inH₂O	-10...105.4 inH₂O	0.02 inH₂O	84 / 435
PM1718	0...160 inH₂O	-20...160 inH₂O	-28...169 inH₂O	0.04 inH₂O	116 / 435
PM1709	-14.5...14.5	-14.5...14.5	-14.5...15.95	0.008	145 / 435
PM1707	0...14.5	-0.73...14.5	-1.45...15.23	0.003	145 / 435
PM1717	0...23.21	-1.45...23.21	-2.61...24.37	0.005	215 / 580
PM1706	0...36.26	-1.82...36.26	-3.625...38.07	0.008	290 / 725
PM1705	0...58	-14.5...58	-14.5...60.9	0.015	435 / 1450
PM1715	0...87	-14.5...87	-14.5...91.4	0.030	435 / 1450
PM1704	0...145	-14.5...145	-14.5...152.3	0.030	725 / 2175
PM1714	0...232	-14.5...232	-14.5...243.7	0.076	1085 / 3625
PM1703	0...362.6	-14.5...362.6	-14.5...381	0.076	1450 / 5075
PM1743	0...580.2	-14.6...580.2	-14.5...609	0.145	1800 / 5800

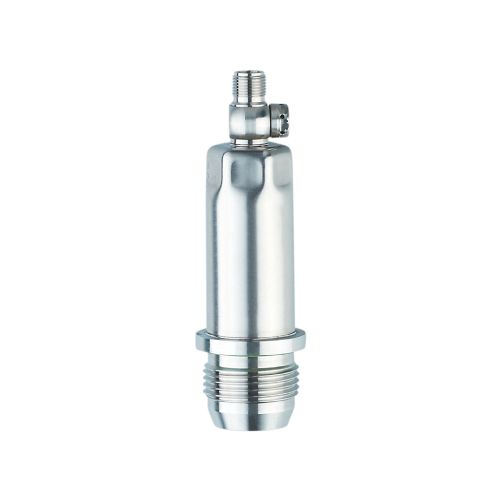

PM1602*	-14.5...1450	-14.5...1450	-14.5...1523	0.304	2900 / 9425

* PM1602 has a different process connection from the PM17 transmitters. Please consult the datasheet for appropriate fittings.

Cordsets for the PM transmitters

Connector type	Article number	Length

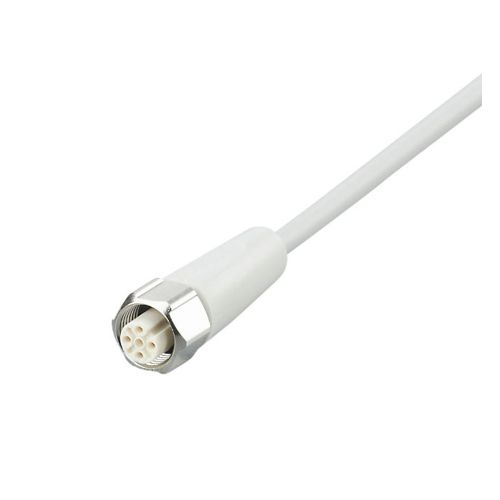

Straight	EVF001 EVF002	5 m 10 m

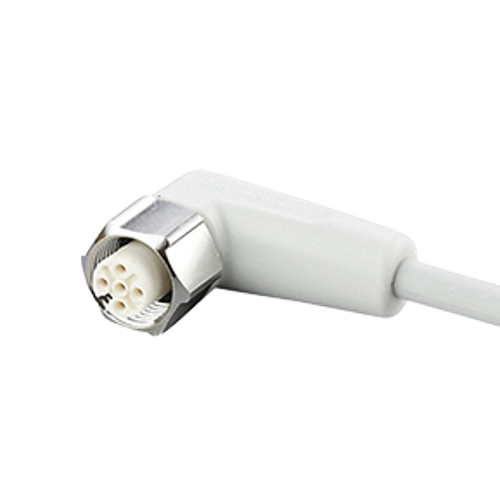

Right angle	EVF004 EVF005	5 m 10 m

Process adapters for the PM17 transmitters

Triclamp fittings
Article number	Size	Description
E33208	1.5"	Tri-clamp process adapter for G1 aseptoflex vario
E33209	2"	Tri-clamp process adapter for G1 aseptoflex vario

Weld fittings
Article number	Description	Recommendation	Tank diameter	Wall thickness	Customer benefits
E30528	Weld adapter, 85mm dia.; concave form; 26.5 mm height; 6 mm rim height	For installation in tank heads and walls – recessed sensing face location	> 1.5 m	< 4mm	Recessed sensor location is better drainage when installed in tank head Flanged design adsorbs stresses during welding to keep sealing profile in tolerance Larger 85mm diameter is easier to weld
E30529	Weld adapter, 85mm dia.; convex form; 16.5 mm height; 6 mm rim height	For installation in tank bottoms, walls, larger tank diameters – protruding sensing face location better for drainage off sensing face	> 1.5 m	< 4mm	Protruding location is better for drainage in conical sections or on the bottom of tanks. Flanged design adsorbs stresses during welding to keep sealing profile in tolerance Larger 85mm diameter is easier to weld
E30130	Weld adapter, 50mm dia. straight wall	Standard weld adapter for tanks and pipes with 3A approval	> 1.5 m	4mm	Standard ifm adapter for experienced welders
E30149	Weld adapter, 60mm dia. straight wall	Standard weld adapter for larger tanks and pipes with 3A approval	> 1.5 m	4mm (or less)	Standard ifm adapter for experienced welders with smaller rim height for thinner tank walls

Weld-in shell, tank spud, and weld accessories
Article number	Description
E33349	E+H universal adapter for short E+H weld-in shell 61001740
E33350	Anderson flush mount adapter for short Anderson weld-in shells 71060-A4, -A6, -A8

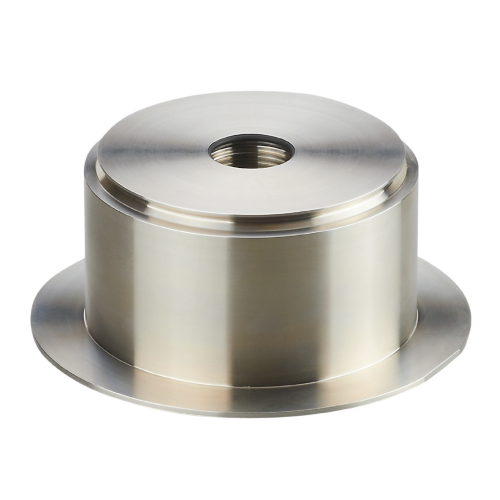

E33434	Rosemount sanitary spud for short Rosemount 1199-0061-0001

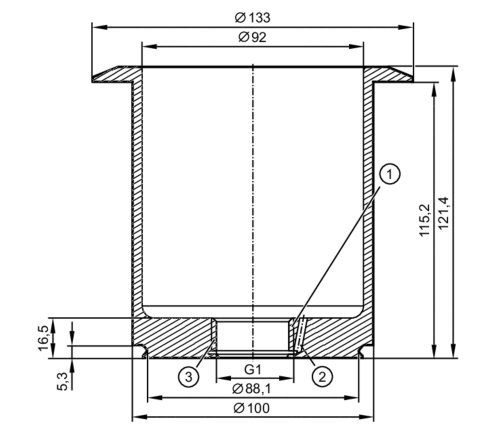

ZH4160	Rosemount sanitary spud 6" for long Rosemount 1199-0061-0002
E30452	Weld mandrel recommended when installing any of ifm’s weld adapters on tanks or pipes to act as a heat sink and prevent warpage of the weld adapter.

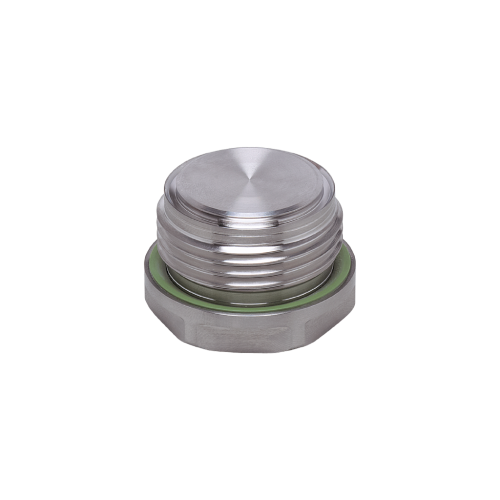

E30128	Plug used to seal unused ports or for pressure / leak testing

Replacement o-rings

Article number	Material	Description	Supplied with:
E30054	EPDM FDA compliant	EPDM is the most common gasket material used in F&B applications and has a very good suitability with hot water / steam and both acidic / alkaline CIP fluids. This O-ring seals between the face of the process connection and the adapter.	Aseptoflex Vario adapter
E30123	FKM FDA compliant	FKM is very suitable for oil applications as there is minimum swelling even with mineral oils, and it is the most common material for industrial applications with excellent chemical and high temperature resistance.	Optional accessory purchased seperately
E30124	PEEK FDA compliant	PEEK is a more durable seal if devices are removed during the cleaning process, has universal resistance to chemicals, and is more stable than elastomers that become hard and brittle over time.	Optional accessory purchased separately

Vent accessories

Article number	Description
E30139	Filter cover with tube fitting and vent tube that can be located in a protected and dry area.
E30467	Filter cover with rotatable push to connect fitting, additional plug-in filter cover, and vent tube. Recommended for applications where the end of the vent tube cannot be protected or where chemically demanding external cleaning is conducted.
