IO-Link provides real-time data about your process

Keep reading to learn how IO-Link adds more value to PM pressure transmitters with ceramic capacitive technology. Or, browse our line of PM models to find the right one for your application.

Via IO-Link, the PM family can provide:

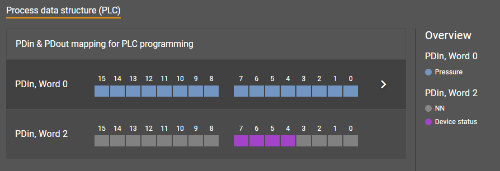

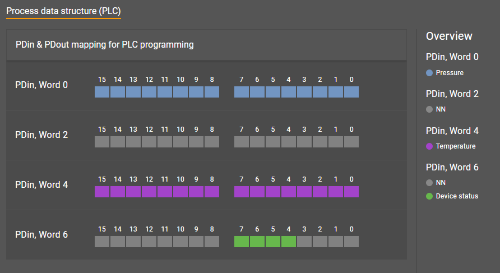

The process data mapping structure is slightly different for each of the PM families.

0	Device is OK	Sensor is operating normally
1	Maintence required	Flash sequence active (write/reading to/from sensor)
2	Out of specification	Process Pressure over/under run (≥ 105 %VMR* or ≤ -5 %VMR*) Process Temperature over/under run (≥ 115°C / 239°F or ≤ -30°C / -22°F) Device Temperature range exceeded or below limits (≥ 125°C / 257°F or ≤ -25°C / -13°F)
3	Functional check	Process Temperature range is critically exceeded or below limits (≥ 125°C / 257°F or ≤ -35°C / -31°F) Parameter setting error Measurement error
4	Failure	Hardware failure, replace unit

*VMR = final value of the measuring range
