PM flush mount pressure transmitters
Select products
PM15 - 1/2" sensor connection

Transmitters with 1/2" connection

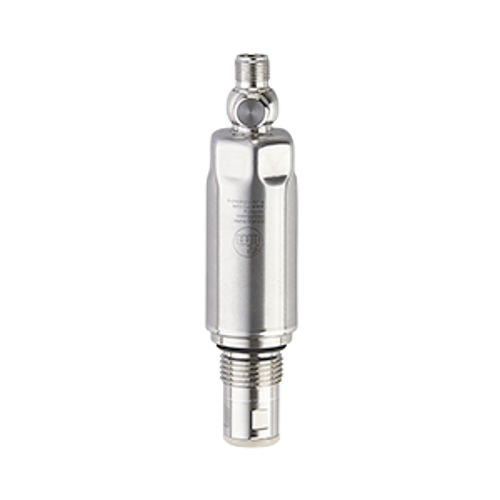

The PM15 family of sensors come with a G 1/2 external thread sealing cone. Explore the table below to determine which part number you need based on the pressure range in your application. Additionally, explore the range of accessories for this product line, including cordsets, process adapters, replacement O-rings, and vent protection. Then, follow our installation guidelines for seamless integration into your facility.

PM15 digital or analog, 4...20 mA (scalable)

Part no.	Factory default range (psi)	Full range (psi)	IO-Link range (psi)	IO-Link resolution (psi)	Overload / burst pressure (psi)
PM1507	0...14.5	-0.73...14.5	-1.45...15.23	0.003	290 / 580
PM1506	0...36.26	-1.82..36.26	-3.62...38.07	0.007	435 / 725
PM1505	0...58	-14.5...58	-14.5...60.9	0.015	580 / 1200
PM1515	0...87	-14.5...87	-14.5...91.4	0.029	725 / 2900
PM1504	0...145	-14.5...145	-14.5...152.3	0.029	1100 / 2538
PM1514	0...232	-14.5...232	-14.5...243.7	0.073	1600 / 3625
PM1503	0...362.6	-14.5...362.6	-14.5...384.6	0.073	2300 / 3600
PM1543	0...580.0	-14.5...580.2	-14.5...609.2	0.145	2900 / 4350

Cordsets for the PM transmitters

Connector type	Article number	Length
Straight	EVF001 EVF002	5 m 10 m
Right angle	EVF004 EVF005	5 m 10 m

Process adapters for the PM15 transmitters

Triclamp fittings
Article number	Size	Description

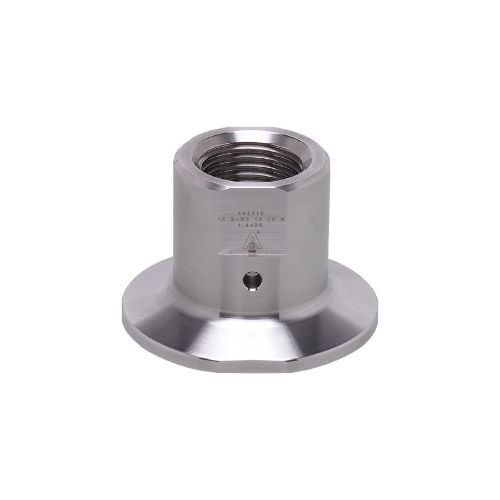

E43311	1.5"	Tri-clamp process adapter for G 1/2 external thread sealing cone

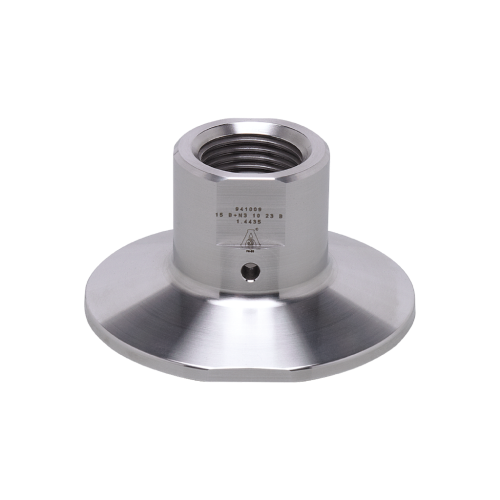

E43312	2"

Weld fittings
Article number	Description	Recommendation	Tank diameter	Wall thickness	Customer benefits

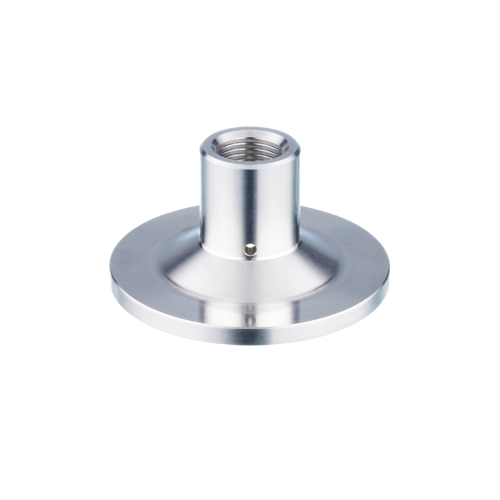

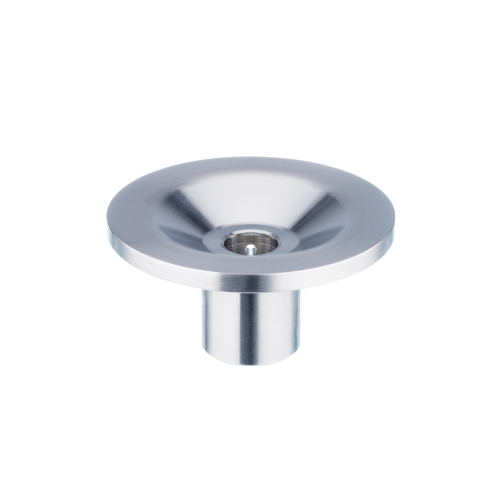

E43919	Weld adapter, 85mm dia.; concave form; 26.5 mm height; 6 mm rim height	For installation in tank heads and walls – recessed sensing face location	> 1.5 m	< 4mm	Recessed sensor location is better drainage when installed in tank head Flanged design adsorbs stresses during welding to keep sealing profile in tolerance Larger 85mm diameter is easier to weld

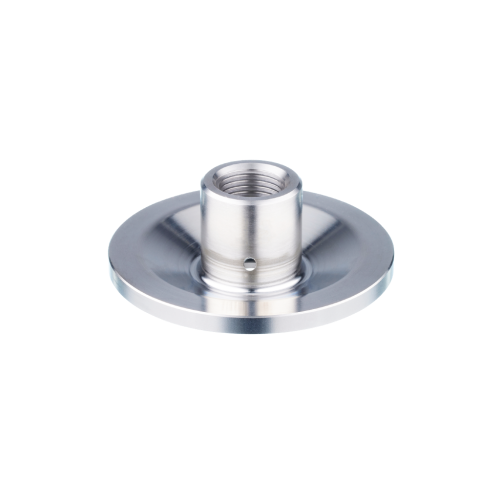

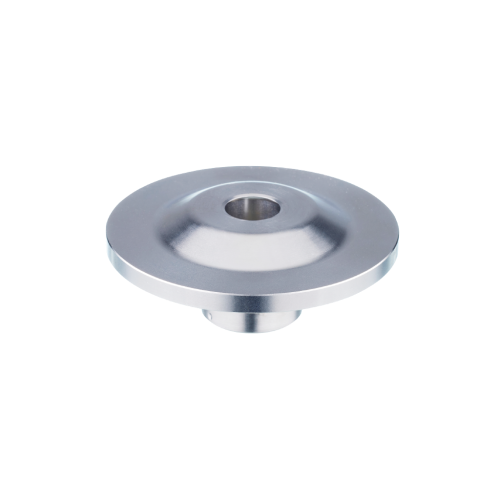

E43918	Weld adapter, 85mm dia.; convex form; 16.5 mm height; 6 mm rim height	For installation in tank bottoms, walls, larger tank diameters – protruding sensing face location better for drainage off sensing face	> 1.5 m	< 4mm	Protruding location is better for drainage in conical sections or on the bottom of tanks. Flanged design adsorbs stresses during welding to keep sealing profile in tolerance Larger 85mm diameter is easier to weld

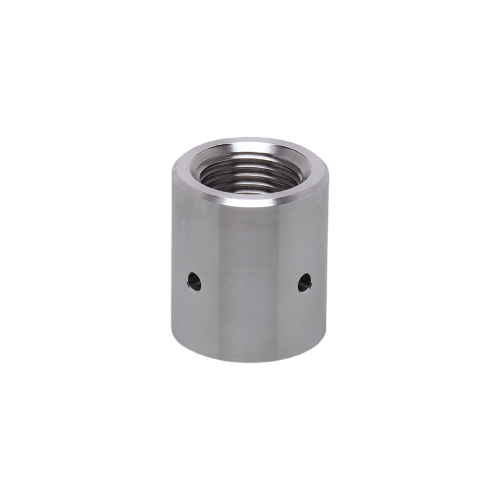

E43309	Weld adapter, 30mm dia.	Standard weld adapter for tanks with 3A approval			Standard ifm adapter

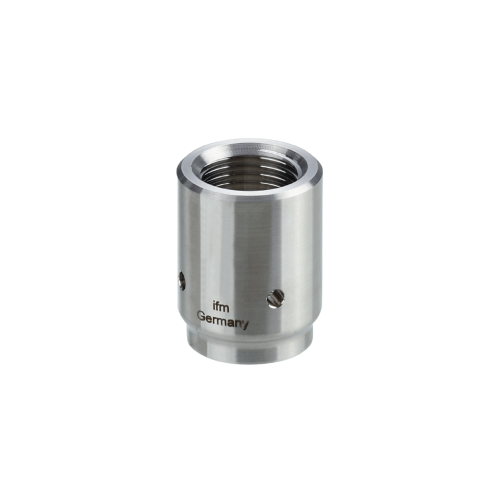

E43412	Weld adapter, 30mm dia.	Standard weld adapter for pipes with 3A approval			Standard ifm adapter

Replacement o-rings

Article number	Material	Description	Supplied with:

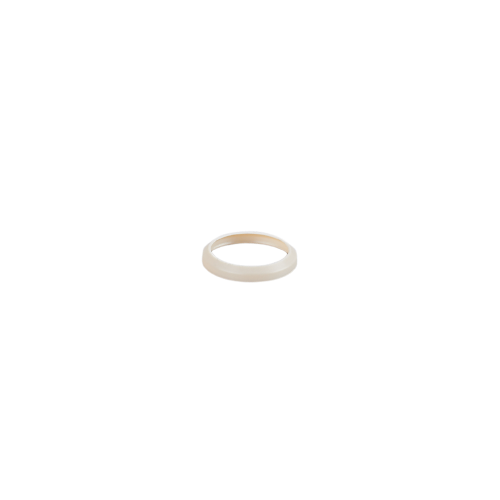

E30459	PEEK FDA compliant	PEEK process seal for non-metal sealing surface between the sensor and adapter	Attached to the sensor

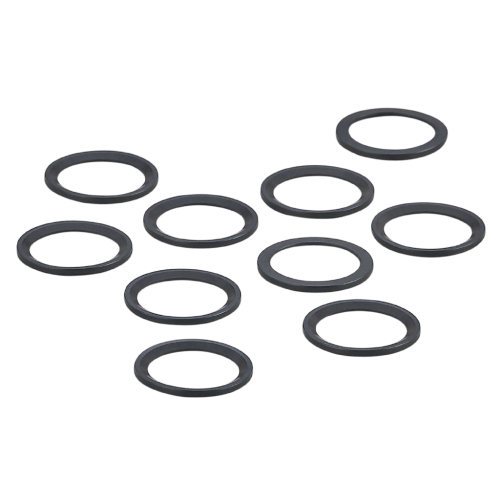

E30451	EPDM	EPDM dust seal gasket prevents material from outside the process to get into the process, supplied with the sensor	Sensor

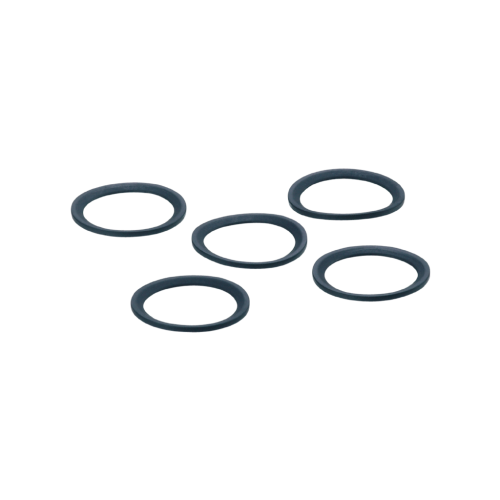

E30492	FKM	FKM dust seal gasket prevents material from outside the process to get into the process	Optional accessory purchased separately

Vent accessories

Article number	Description
E30139	Filter cover with tube fitting and vent tube that can be located in a protected and dry area.
E30467	Filter cover with rotatable push to connect fitting, additional plug-in filter cover, and vent tube. Recommended for applications where the end of the vent tube cannot be protected or where chemically demanding external cleaning is conducted.
