Inductive sensors monitor wheel rotation and ground speed

Crane in a junkyard and inset with an inductive sensor for wheel rotation

An inductive sensor detects a metal target on a rotating wheel and outputs a digital signal with each signal pulse corresponding to a rotation or a segment of a rotation. The evaluation unit counts the pulses and converts them into rotational speed from which ground speed can be calculated.

Benefits

Simple and cost effective to install and integrate.
Non-contact detection reduces wear and tear, and extends the lifespan of the machine.
Insensitive to environmental factors.
High switching frequency does not limit the vehicle's speed.

Product selection

ifm offers a wide variety of encoders and robust inductive sensors that are suitable for outdoor use on mobile equipment for ground speed measurement. The high protection rating and wide operating temperature range allow the sensors to withstand harsh environmental conditions.

Protection rating IP65 / IP67 / IP68 / IP69K
	DC PNP N.O.	DC NPN N.O.	Sensing Range

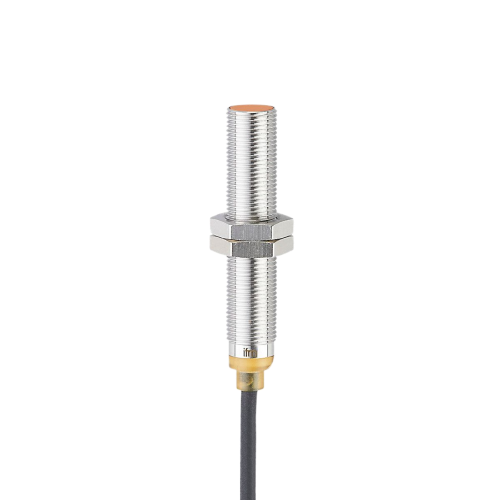

M12 x 60 mm	IFS252	IFS254	4 mm flush
M12 x 60 mm	IFS253	IFS255	7 mm nonflush

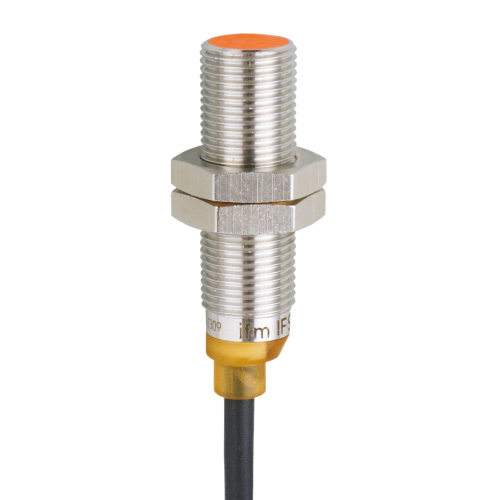

M12 x 45 mm	IFS256	IFS258	4 mm flush
M12 x 45 mm	IFS257	IFS259	7 mm nonflush

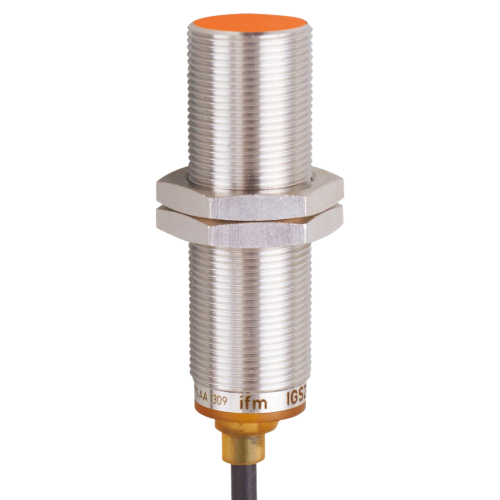

M18 x 60 mm	IGS244	IGS246	8 mm flush
M18 x 60 mm	IGS245	IGS247	12 mm nonflush
M18 x 45 mm	IGS248	IGS250	8 mm flush
M18 x 45 mm	IGS249	IGS251	12 mm nonflush

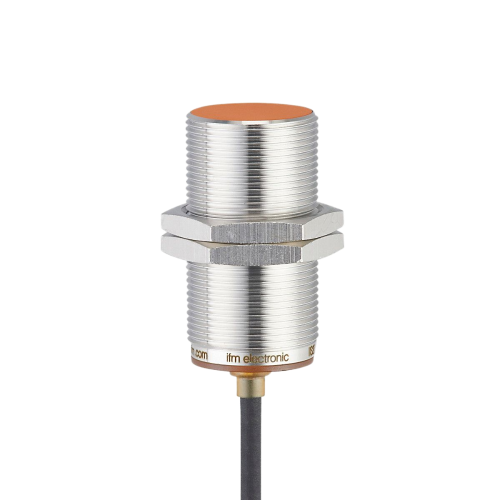

M30 x 60 mm	IIS238	IIS240	15 mm flush
M30 x 60 mm	IIS239	IIS241	22 mm nonflush

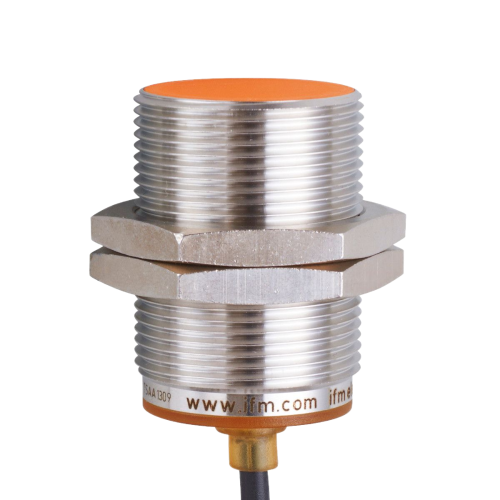

M30 x 45 mm	IIS242	IIS244	15 mm flush
M30 x 45 mm	IIS243	IIS245	22 mm nonflush

Quick disconnection versions available. DEUTSCH, Packard, and AMP available on request.
