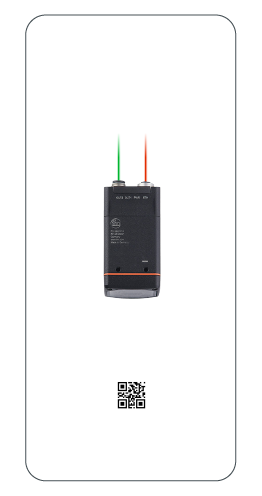

Image-based code reading
Close
  • Supports 1D/2D codes
  • 100s of codes in one application
  • Complete imaging/lighting/evaluation
  • One button setup
  • Local logic and configurable I/O
  • Requires line-of-sight
Communication support:
  • Ethernet/IP
  • TCP/IP
  • ProfiNet
View platform
HF RFID Platforms
Close
  • 13.56 MHZ ISO15693
  • Inductive Coupoling Principle
  • One tag per antenna at given time
  • Self-triggering for read/write cycles
  • Maximum operating range 220 mm
  • Up to 64k bytes tag
  • Does not need line-of-sight
View platforms
UHF RFID Platforms
Close
  • 902-928 MHz ISO18000-6C
  • EPC Class1 Gen2
  • RF Backscatter Principle
  • Many tags per antenna at given time
  • Local filtering and logic capabilities
  • Maximum operating range 10 M
  • Up to 8k bits tag memory
  • Does not need line-of-sight
View platforms

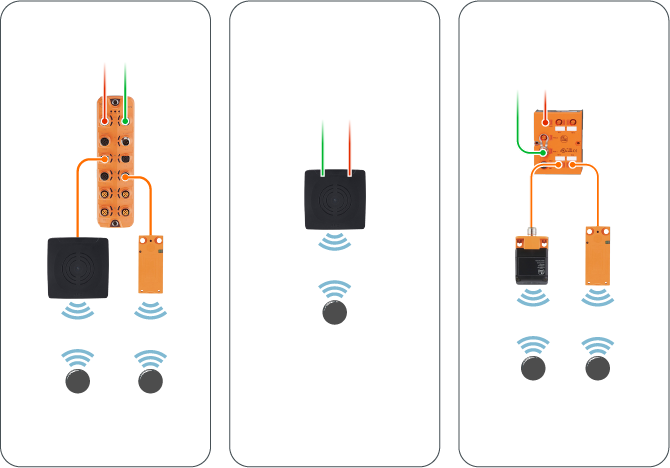

IO-Link HF Systems
Close
  • 13.56 MHz ISO15693
  • Supports up to 8 antennas and I/O
  • Lowest cost of implementation
  • Easy installation
  • Diverse antenna offering
  • Read/write range of up to 220mm
  • One tag per antenna per cycle
Communication support:
  • TCP/IP
  • MQTT, HTTP, JSON
  • AS-i
  • Modbus TCP
  • ProfiNet
  • Profibus
  • Ethernet/IP
  • EtherCAT
View platform
Modular HF Systems
Close
  • 13.56 MHz ISO15693
  • Supports up to 4 antennas and I/O
  • Optimized for high-speed targets
  • Optimized for large data payloads
  • Diverse antenna offering
  • Read/write range of up to 220mm
  • One tag per antenna per cycle
Communication support:
  • Profibus DP
  • ProfiNet
  • EtherCAT
  • Ethernet/IP
  • CANopen
  • TCP/IP
  • MQTT, HTTP, JSON
View platform

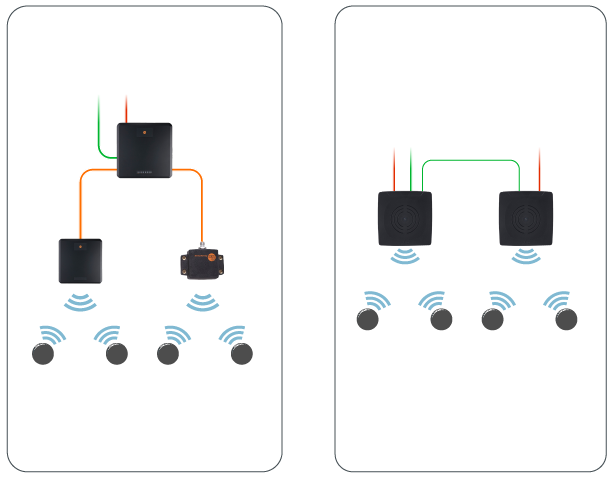

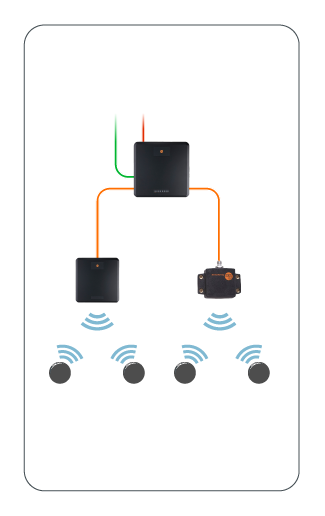

Modular UHF Systems
Close
  • FCC 902-928 MHZ ISO1800-6C
  • EPC Global Gen2 Compatible
  • Supports 4 antennas and 8 local I/O
  • Optimized for high speed targets
  • 100s of tags at one time
  • Read/write range up to 10 m
  • Local tag filtering and data handling
Communication support:
  • Ethernet/IP
  • TCP/IP
  • LLRP
View platform

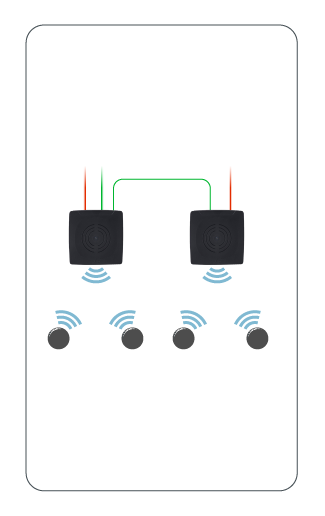

All-in-one UHF Systems
Close
  • FCC 902-928 MHZ ISO1800-6C
  • EPC Global Gen2 Compatible
  • Antenna/evaluation in one housing
  • Optimized for high speed targets
  • Read/write 16 tags at one time
  • Read/write range up to 4 m
  • Embedded logic layer for independent control
Communication support:
  • Ethernet/IP
  • ProfiNet
  • TCP/IP
  • MQTT, HTTP, JSON
View platform

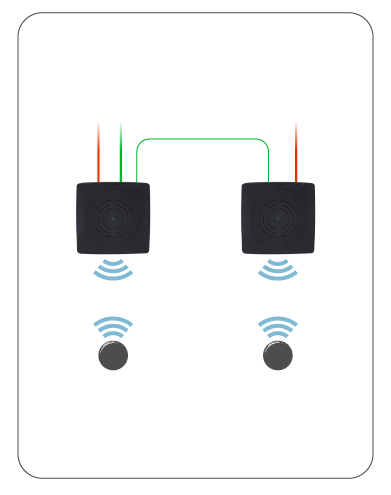

All-in-one HF Systems
Close
  • 13.56 MHz ISO15693
  • Antenna/evaluation in one housing
  • Optimized for high speed targets
  • Optimized for large data payloads
  • Configurable local I/O
  • Read/write range of up to 220mm
  • One tag per antenna per cycle
Communication support:
  • Ethernet/IP
  • TCP/IP
  • ProfiNet
  • MQTT, HTTP, JSON
View platforms
