O6D laser distance sensor: IO-Link benefits
The O6D laser distance sensor includes IO-Link capabilities. You will have access to continuous process data without the losses associated with data transmission. This allows you to access more parameters to make your application more robust.
Via IO-Link, the O6D provides:
- Transparent data generation and transmission without analog to digital signal loss
- Current distance value in mm
- Current reflectivity value in %
- Current device status, including status of switching outputs and diagnostic function check
- Easy and quick parameter setting with moneo configure software

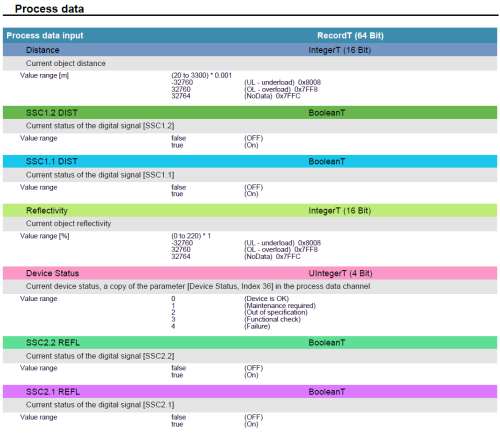

IO-Link process data configuration
| Process data input | RecordT (64 Bit) | ||
| Distance | IntegerT(16 Bit) | ||
| Current object distance | |||
| Value range [m] | (20 to 3300) * 0.001 | ||
| -32760 | (UL - underload) 0X8008 | ||
| 32760 | (OL - overload) 0x7FF8 | ||
| 32764 | (NoData) 0x7FFC | ||
| SSC1.2 DIST | BooleanT | ||
| Current status of the digital signal [SSC1.2] | |||
| Value range | false | (OFF) | |
| true | (On) | ||
| SSC1.1 DIST | BooleanT | ||
| Current status of the digital signal [SSC1.2] | |||
| Value range | false | (OFF) | |
| true | (on) | ||
| Reflectivity | InterT (16 Bit) | ||
| Current object reflectivity | |||
| Value range [%] | (0 to 220) * 1 | ||
| -37260 | (UL - underload) 0x8008 | ||
| 37260 | (OL - overload) 0c7FF8 | ||
| 32764 | (NoData) 0x7FFC | ||
| Device Status | UIntegerT (4 Bit) | ||
| Current device status, a copy of the paramater [Device Status, Index 36] in the process data channel | |||
| Value range | 0 | (Device is OK) | |
| 1 | (Maintenance required) | ||
| 2 | (Out of specification) | ||
| 3 | (Functional check) | ||
| 4 | (Failure) | ||
| SSC2.2 REFL | BooleanT | ||
| Current status of the digital signal [SSC2.2] | |||
| Value range | false | (OFF) | |
| true | (On) | ||
| SSC2.1 REFL | BooleanT | ||
| Current status of the digital signal [SSC2.1] | |||
| Value range | false | (OFF) | |
| true | (On) | ||
More information on understanding the IODD can be found here.
Browse all laser distance sensors from ifm.
