Sensor family |
Housing size | Sensing range | Design | Durability | Points to consider |
---|---|---|---|---|---|
Industrial automation applications |
• M12 • M18 • M30 |
++ | • Metal housing • Plastic face |
++ | • Precabled and quick disconnect • High protection rating • -40…185 °F temperature range |

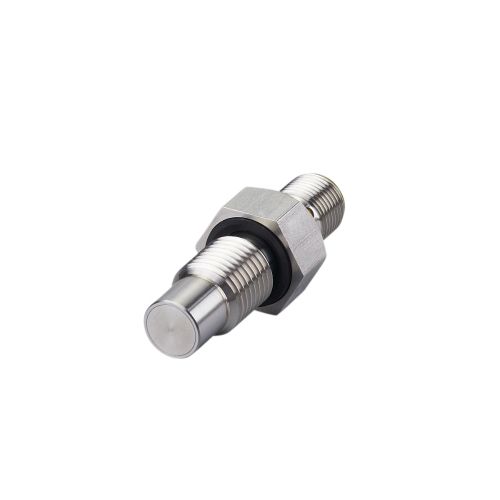

Metal face solutions |
• M8 • M12 • M18 • M30 |
++ | • Stainless steel housing • Stainless steel face |
+++ | • Robust design • High protection rating |
Mobile equipment applications |
• M12 • M18 |
++ | • Metal housing • Plastic face |
++ | • 200 mA load current available • e1 approval • Wide operating voltage and temperature range • High protection rating |
Hydraulic cylinder applications |
• M12 | + | • Stainless steel housing • Stainless steel face |
+++ | • Mounts directly in cylinder body • 7250 psi pressure rating • Senses the piston position • High protection rating |
