PY pressure transmitter for insulated tanks
Select products

Insulated tank solutions

The PY series of sanitary pressure transmitters from ifm offers the added advantage of real-time data via IO-Link. Below is a list of available models. Additionally, explore a range of compatible accessories, including process adapters, cordsets, replacement O-rings, and vent protection.

PY200x digital or analog, 4...20 mA (scalable)
	Part No.	Factory default range (inH₂O)	Full range (inH₂O)	IO-Link range (inH₂O)	IO-Link resolution (inH₂O)	Overload / burst pressure (psi)
	PY2006	0...1003.7	-50.2...1003.7	-100.4...1053.8	0.04	290 / 725

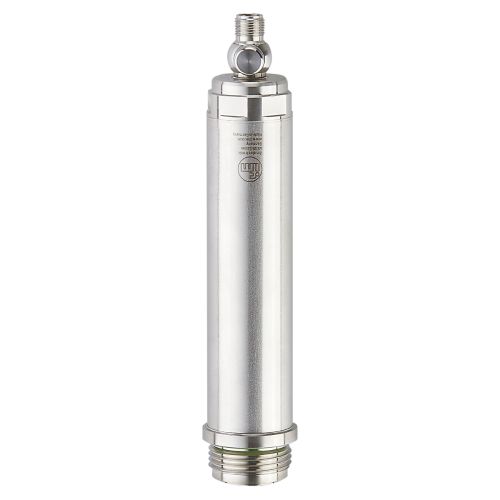

	PY2007	0...401.5	-20.1...401.5	-40.1...421.5	0.04	145 / 435

Double wall (insulated) tank shell
Competitor	Description	Part number

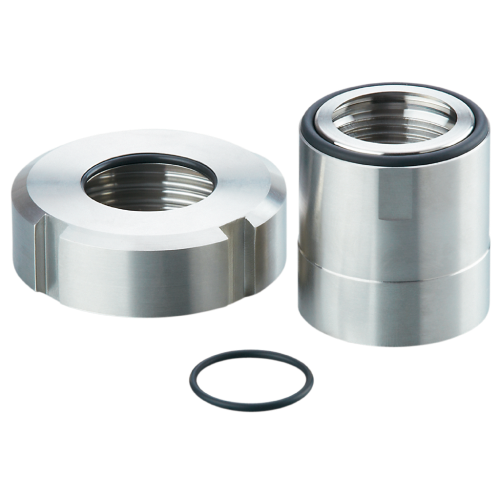

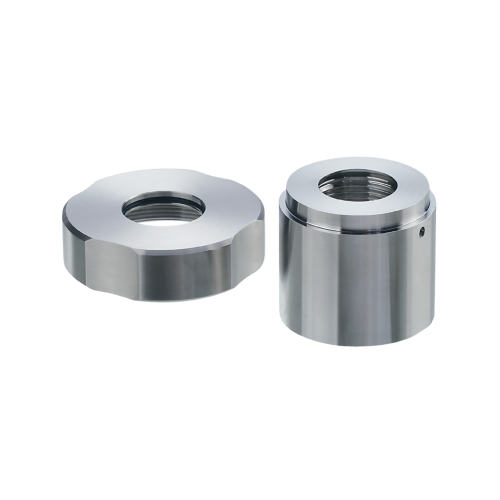

Anderson	Replaces Anderson flush mount sensor - long Mates to existing Anderson weld-in shell 71060-A3, -A5, -A7, -A9	E33350
Endress + Hauser	Replaces Endress + Hauser universal adapter - long Mates to existing Endress + Hauser weld-in shell 61001741	E33349

Explore more competitive adapters

Cordsets for the PY transmitters
Connector type	Article number	Length

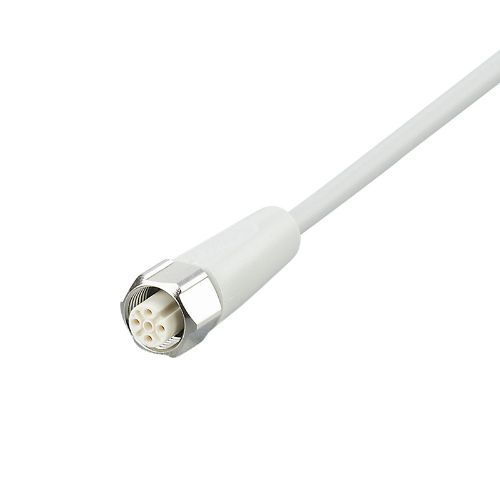

Straight	EVF001 EVF002	5 m 10 m

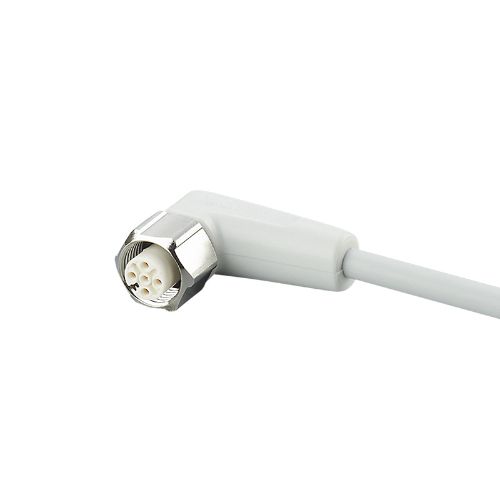

Right angle	EVF004 EVF005	5 m 10 m

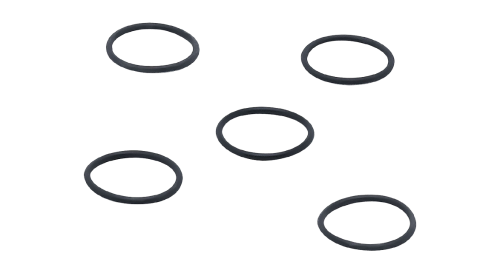

Replacement o-rings
Article number	Material	Description	Supplied with:
E30054	EPDM FDA compliant	EPDM is the most common gasket material used in F&B applications and has a very good suitability with hot water / steam and both acidic / alkaline CIP fluids. This O-ring seals between the face of the process connection and the adapter.	Aseptoflex Vario adapter

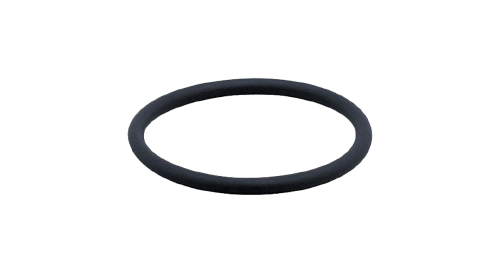

E30123 (1 piece) E30053 (5 pieces)	FKM FDA compliant	FKM is very suitable for oil applications as there is minimum swelling even with mineral oils, and it is the most common material for industrial applications with excellent chemical and high temperature resistance.	Optional accessory purchased seperately

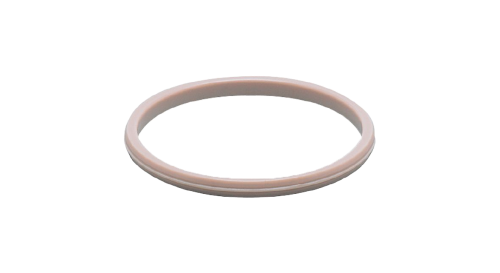

E30124	PEEK FDA compliant	PEEK is a more durable seal if devices are removed during the cleaning process, has universal resistance to chemicals, and is more stable than elastomers that become hard and brittle over time.	Optional accessory purchased seperately

Vent accessories
Article number	Description

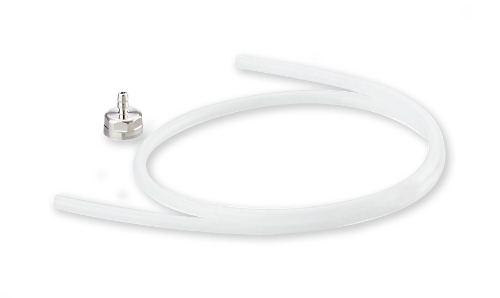

E30139	Filter cover with tube fitting and vent tube that can be located in a protected and dry area.

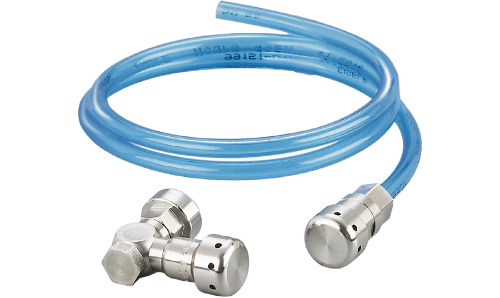

E30467	Filter cover with rotatable push to connect fitting, additional plug-in filter cover, and vent tube. Recommended for applications where the end of the vent tube cannot be protected or where chemically demanding external cleaning is conducted.
