- TD sanitary temperature transmitters
- Select products
Select products
For specific part numbers, click on the product below.
| Sensor family | Temperature range | Insertion length | Process connection | Signal | Visualization | Points to consider |
|---|---|---|---|---|---|---|
 TD22 |
-58...302 °F -50...150 °C |
2"...13.8" | Ø 6 mm probe | Transmitter IO-Link |
Numeric display | • ± 0.54 °F accuracy • One piece stainless steel construction • Integrated 1.5" and 2" triclamp • 4-digit display • Fast (1/3 sec) response time • Length up to 13" (350 mm) for stick probe versions |

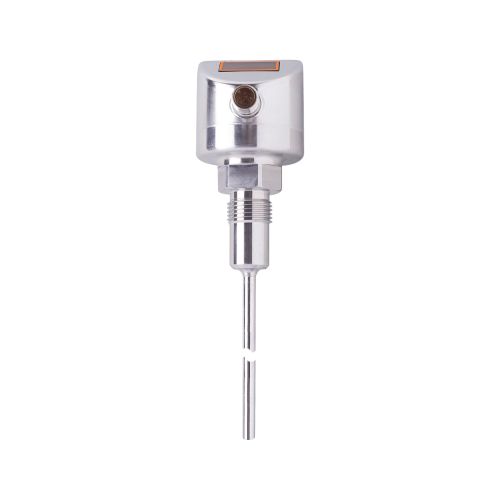

 TD25 |
1.18"...5.9" | G 1/2 sealing cone | ||||
 TD28 |
Clamp DN25...DN40 (1...1,5") | |||||
TD29 |
Clamp DN50 (2") |
Thermowells protect temperature sensors against harmful influences and make it possible to replace sensors in the running process. Check out thermowells for sanitary applications.
Other solutions for sanitary temperature applications
| Sensor family | Temperature range | Insertion length | Signal | Construction | Visualization | Points to consider |
|---|---|---|---|---|---|---|
 TCC |
-13...320 °F -25…160 °C |
1.2"...21.7" | Transmitter | Integrated | Large status LED | • Dual element • Auto drift detection • Digital data values • ± 0.36 °F accuracy |
 TA |
-58…392 °F -50…200 °C |
1.18"…6" | Transmitter | Integrated | Status LED | • ±0.54 °F accuracy • One piece stainless steel construction • Ultra fast (0.5/2 sec) response time |
 TM |
-40...302 °F -40...150 °C |
1.18"…6" | RTD | 6 mm RTD probe with integrated process connector | – | • Class A accuracy Pt100 • M12 connection for easy wiring • Integrated process connection |
