- TA industrial transmitters
- Select products
Select products
| Sensor Family | Temperature Range | Insertion Lengths | Process connection | Signal | Visualization | Points to Consider |
|---|---|---|---|---|---|---|

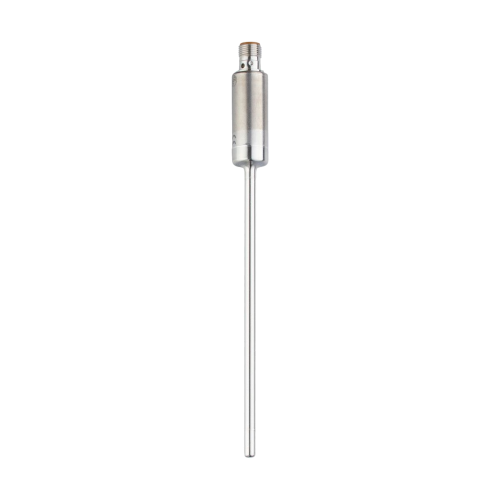

 TA21 |
-58…302 °F -50…150 °C |
1"… 5.9" | G 1/4 | Transmitter IO-Link |
Status LED | • ±0.54 °F accuracy • Two-color display • Integrated process connection |
 TA22 |
-58…392 °F -50…200 °C |
2"… 13.8" | Ø 6 mm probe | |||
 TA23 |
-58…302 °F -50…150 °C |
1.2" ... 5.9" | 1/2" NPT | |||
TA24 |
-58…302 °F -50…150 °C |
1.2" ... 5.9" | G 1/2 | |||
TA26 |
-58…302 °F -50…150 °C |
1"… 5.9" | 1/4" NPT |
Thermowells protect temperature sensors against harmful influences and make it possible to replace sensors in the running process. Check out thermowells for industrial applications.
Other temperature solutions....
| Sensor Family | Temperature Range | Insertion Lengths | Signal | Construction | Visualization | Points to Consider |
|---|---|---|---|---|---|---|
 TN |
-58…302 °F -50…150 °C |
1"…6" | • Transmiter • Switch |
Integrated | • Numeric display • Status LED |
• ±0.54 °F accuracy • Two-color display • Integrated process connection |
 TR |
-148…1112 °F -100…600 °C |
RTD dependent |
• Transmiter • Switch |
Modular | • Numeric display • Status LED |
• ±0.54 °F accuracy • Accepts 2 • Integrated process connection |
 TD |
-58…392 °F -50…200 °C |
1"…6" | Transmitter | Integrated | • Numeric display • Status LED |
• ±0.54 °F accuracy • Two-color display • Integrated process connection |
 TP |
-58…302 °F -50…150 °C |
RTD dependent |
Transmitter | Modular | Status LED | • ±0.54 °F accuracy • Two-color display • Integrated process connection |
 TK |
-58…572 °F -50…300 °C |
1"…6" | Switch | Integrated | Status LED | • ±0.54 °F accuracy • Two-color display • Integrated process connection |
 TV |
-13…284 °F -25…140 °C |
1"…6" | Switch | Integrated | – | • ±0.54 °F accuracy • Two-color display • Integrated process connection |
 TT / TM |
-58…302 °F -50…150 °C |
1"…6" | RTD | 6, 10 mm RTD probe | – | • ±0.54 °F accuracy • Two-color display • Integrated process connection |
 TS |
-40…302 °F -40…150 °C |
various | RTD | 6, 10 mm cabled RTD probe | – | • ±0.54 °F accuracy • Two-color display • Integrated process connection |
