LW radar level sensor
Select products

LW Radar level sensor: Select products

	Part no.	Measuring range	Technology	Signal	Points to consider
	LW2720	0.01...10 m (up to 15 m with good conditions)	Radar (unguided) Non-contact High accuracy Measurement not impacted in pressurized applications	Transmitter Switch IO-Link	Requires closed tank Has sanitary approvals (i.e. 3A, EHEDG, FDA) Washdown rated and CIP/SIP capable
	LW2120 (Shown with optional E33705 antenna and E33706 mounting bracket)	0.01...10 m (up to 15 m with good conditions)		Transmitter Switch IO-Link	Has FCC approvals for open tanks and outside applications Does not have sanitary approvals for closed tanks (has FDA approval) Washdown rated and CIP/SIP capable

Other sensors for sanitary level applications

Sensor Family	Measuring Range	Technology	Signal	Points to Consider
LR	100…2000 mm	Guided wave radar	Transmitter Switch IO-Link	Easy top-down mounting Cut-to-length measuring points Clean out-of-place 3A authorized design
PI	Unlimited	Hydrostatic pressure	Transmitter Switch IO-Link	Mount at the tank bottom Two-wire transmitter with display Inches H₂O range available
PG	Unlimited	Hydrostatic pressure	Transmitter Switch	Mount at the tank bottom Gauge / digital display Inches H₂O range available
PM	Unlimited	Hydrostatic pressure	Transmitter IO-Link	Mount at the tank bottom Two-wire transmitter Inches H₂O range available

Adapters for sanitary level sensors

Article	Description	Approval

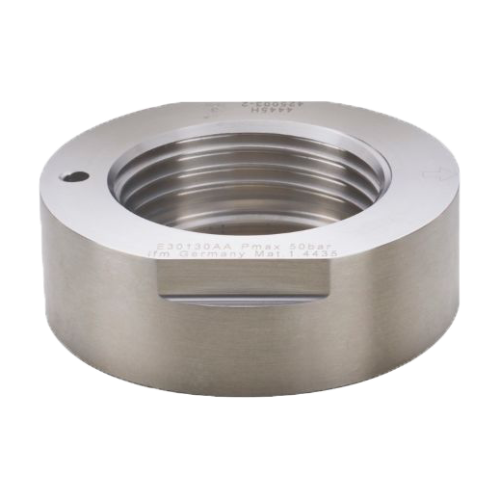

E30130	D50 Weld Adapter with leakage port	3A, EHEDG, FDA

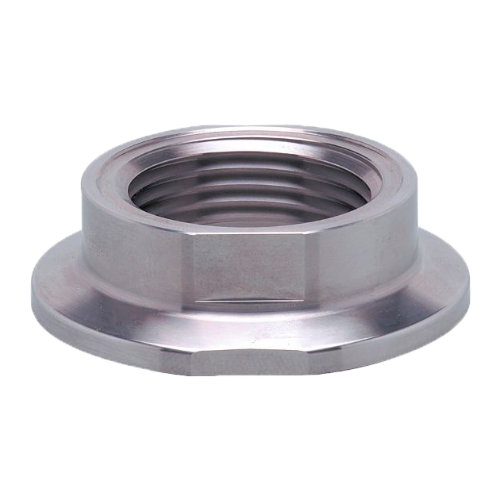

E33208	1.5" Triclamp fitting with leakage port	3A, EHEDG, FDA

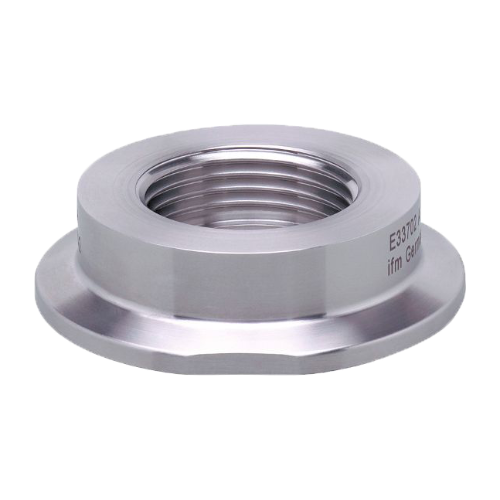

E33209	2" Triclamp fitting with leakage port	3A, EHEDG, FDA

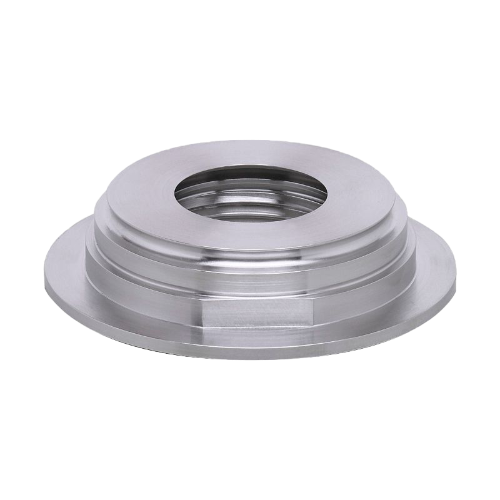

E33228	Varivent Type F (D = 50) with leakage port	3A, EHEDG, FDA

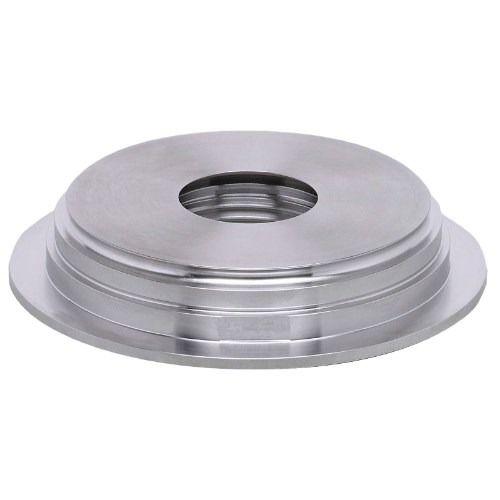

E33229	Varivent Type N (D = 68) with leakage port	3A, EHEDG, FDA

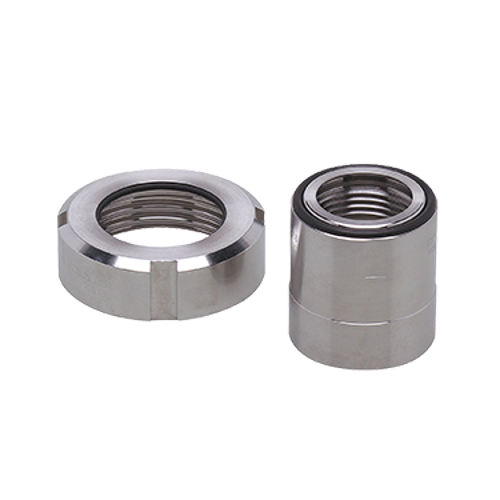

E33340	Universal adapter Rd 52	FDA

ZZ2720 IO-Link starter kit

LW2720 Electronic level sensor; PNP/NPN; switching signal; analog signal; IO-Link; Medium temperature -40...150; (see diagram:) °C; Pressure rating 8 bar; G 1 Aseptoflex Vario; Connector
AL1060 USB IO-Link master; Number of digital inputs 2; Number of digital outputs 2; IP 65; IP 67
E12689 USB adapter cable; 1 m; PUR; gold-plated contacts yes
EVF049 Connection cable; Operating voltage < 250 V AC; 2 m; MPPE; Housing materials PP Halogen-free; sealing: EPDM; IP 65; IP 67; IP 68; IP 69K; Free from silicone yes; Free from halogen yes; gold-plated contacts yes

IO-Link starter kit with LW2720

Experience IO-Link with the radar level sensor

With the starter kit for the radar level sensor, you have everything you need to start up the sensor. In this way, commissioning takes place in the shortest possible time and with minimal effort. The kit combines hardware and software and, with the included moneo license, offers you a convenient way to parameterize the radar sensor quickly and easily. In addition, in combination with an IO-Link master, you have the option of displaying the filling level via moneo and viewing it at any time.

To the starter kit
