Stack light mounting options for ifm tower lights and signal lamps

Mounting guidlines for ifm stack light models vary slightly for 1-, 3-, 5-, or 20-segment signal lamps. An integrated bracket and M4 screws and nuts are supplied with the unit, allowing it to be mounted vertically or horizontally.

Pole mounting options are also available.

3-, 5-, and 20-segment signal lamps

Step 1:  Choose lamp		DV2300 3-segment LED tower
		DV2310 3-segment LED tower with buzzer

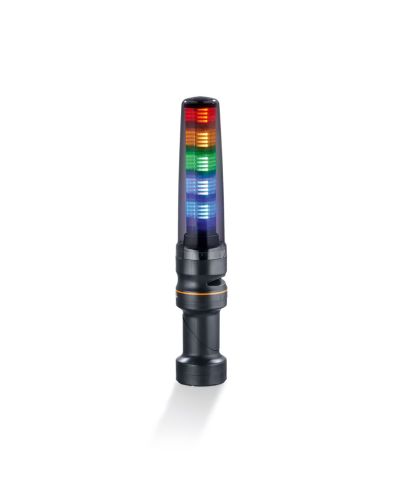

		DV2500 5-segment LED tower
		DV2510 5-segment LED tower with  buzzer
		DV2900 20-segment LED tower
		DV2910 20-segment LED tower with buzzer

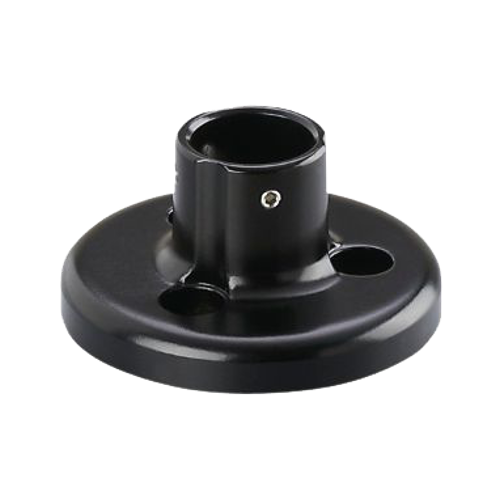

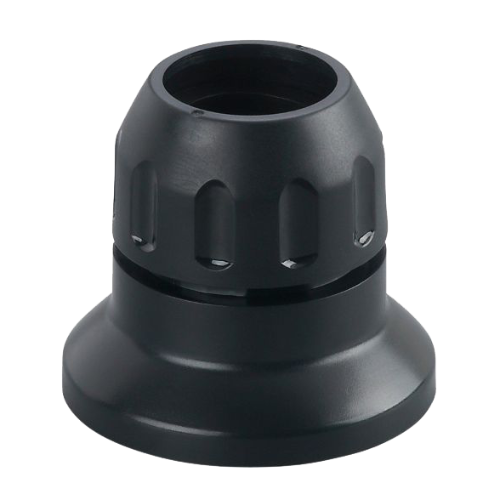

Step 2:  Adapter		E89060

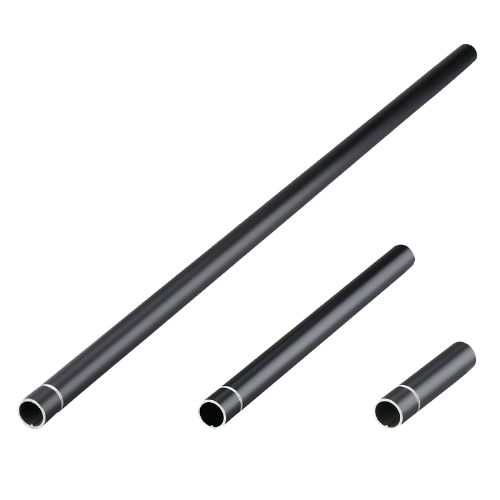

Step 3:  Choose pole length		E89065 -- 100 mm
		E89066 -- 300 mm
		E89067 -- 800 mm
Step 4:  Base for pole or wall mounting		E89060

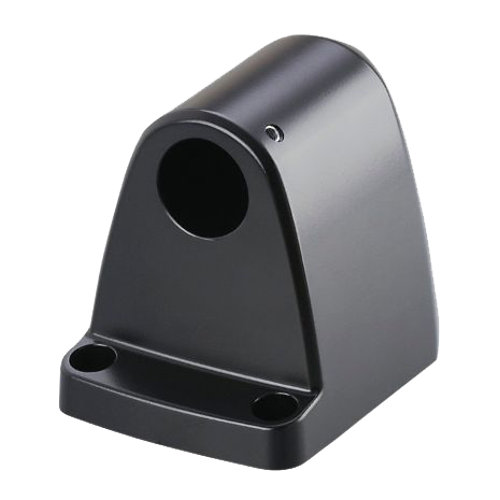

		E89061
