Capacitive touch sensor installation guidelines
Thank you for your purchase of a KTE capacitive touch sensor. On this and the following pages, you will find information to help you install the sensor and program it as well as answers to frequently asked questions.
Should you need additional support after selecting your touch sensor, feel free to contact our service center at 800-441-8246 and speak to one of our applications engineers.
Components and installation

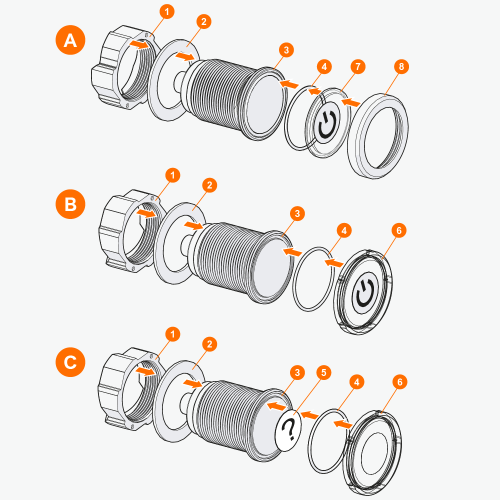

Observe assembly, sequence and direction of installation
Important information
- When operated without a symbol disc, actuations will not be reliably detected.
- Always operate the device with a symbol disc. - In case of improper assembly, water, dirt or similar can penetrate between the symbol disc and the sensing face and cause malfunction.
- Assemble the device and symbol disc when removed.
- Always install the device and symbol disc with the appropriate seals.
- The seal must lie completely in the groove provided.
- Screw on the symbol disc with a tightening torque of at least 1 Nm.
Control of the digital inputs as a clickable animation
The animation shows how the digital inputs of the KTE touch sensors can be controlled without IO-Link using, for example, the Y cables EVC847 and EVC848:
Clicking on touch sensor 2 and 3 sets their output to control a colour change of touch sensor 1. Clicking on “Master sensor” 1 overwrites the signals present at the inputs.
