  1. Asset health management
  2. Condition monitoring

Quick condition monitoring

Get started with asset health management through a simple proof-of-concept installation.

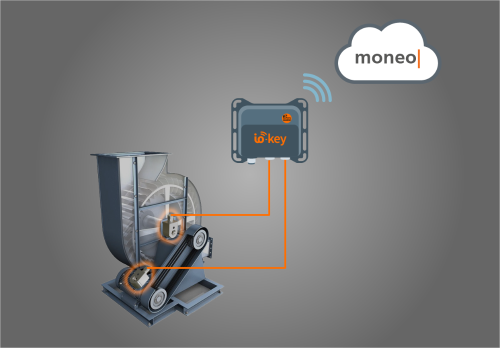

Install two ifm VVB3 3-axis vibration sensors and an io-key wireless IoT gateway for instant sensor-to-cloud connectivity—no programming or support from IT required. Gain access to custom dashboards, process visualizations, and real-time alerts for critical assets.

The io-key supports up to two sensors, transmitting 6 process values (v-RMS, a-Peak, a-RMS, temperature, bearing, and unbalance) per vibration sensor to the cloud every 10 seconds via the AIS973 data plan.

Add the VVB306, AIK050, QCM110 and AIS973 to your cart below and start monitoring today!

Total cost of proof-of-concept

An io-key supports up to two IO-Link sensors. Once connected, the io-key automatically downloads the sensors' IODD files. Each process value transmitted by a sensor counts as an info point.

VVB306 recommended io-key info point measurements Plan configuration: Additional capacity: Cost breakdown:
  • v-RMS magnitude
  • a-Peak magnitude
  • a-RMS magnitude
  • Temperature
  • Unbalance result (if speed configured)
  • Bearing result (if speed configured)
  • Each process value generates 1 info point per 10 seconds.
  • For 6 process values (recommended in first column):
    • Updates per minute = 6 (10-second intervals in 1 minute).
    • Info points per minute = 6 process values x 6 updates x 2 VVB sensors = 72 info points/min per io-key.
  • With a QCM110 moneo subscription supporting up to 100 info points/min, 28 info points are remaining for additional io-key connections.

For more capacity, a QCM001 subscription upgrade adds an additional 100 info points/min, allowing for sensors with more process value outputs or additional io-keys to be supported.
  • Hardware (one-time):
    AIK050 io-key = $434
  • Data plan (annual):
    AIS973 (1 plan per io-key) = $120
  • Cloud subscription (annual):
    QCM110 moneo = $480





Want to scale up?

Go from condition to prediction with comprehensive condition monitoring hardware & IIoT software. Monitor critical assets with ifm's automated asset health monitoring system.

Get started with predictive maintenance



Connect with a Solutions Architect to design a predictive maintenance solution tailored to your needs, fill out the form below.
