ecolink – Connection technology for industry
Safe. Fast. Reliable.
ecolink stands for innovative connection technology trusted across all industries – from production and mobile applications to sensitive and demanding environments. Our solutions are robust, intuitive to use and ensure maximum reliability – day after day, in every application.

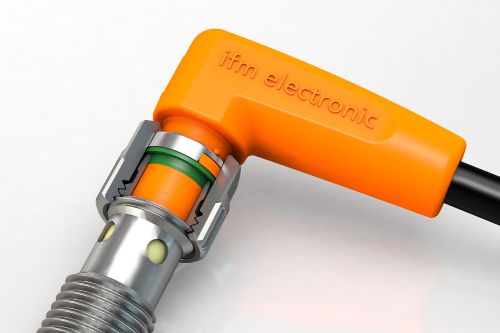

Mechanical end stop
- The O-ring is always optimally compressed
- Permanent sealing, even with repeated assembly

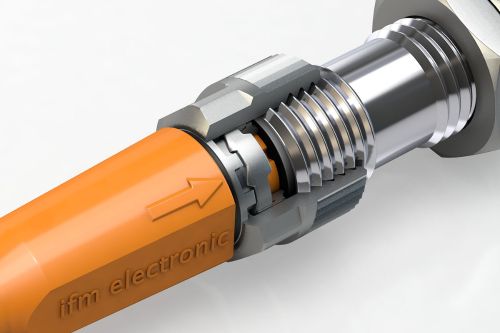

Patented sawtooth mechanism
- Prevents unintended loosening when exposed to vibration
- Fast tool-free assembly

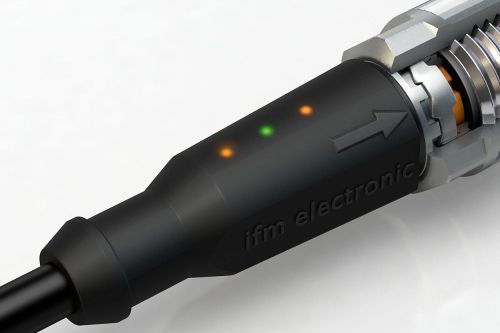

Clearly visible LEDs
- End stop prevents over-compression
- Faster installation, reduced error rate
- Safe, tight & vibration-resistant

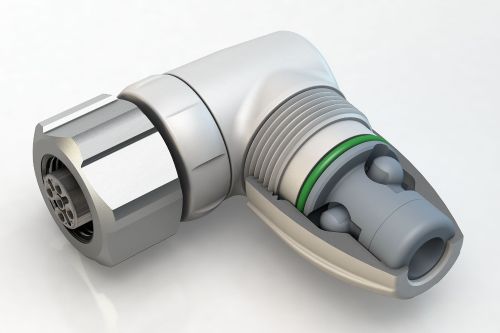

Integrated strain relief
for wireable plugs and sockets
- 3-point clamping protects the cable and the seal separately
- Reliable sealing even under movement and load

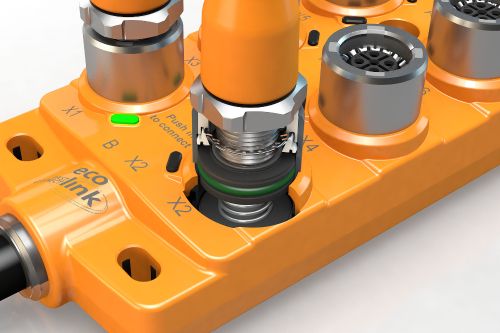

New: ecolink Fast Connect
Connect in seconds
- Tool-free push-in connection in seconds
- Optimised for direct port connection, no special cables required
- High resistance to shock and vibration

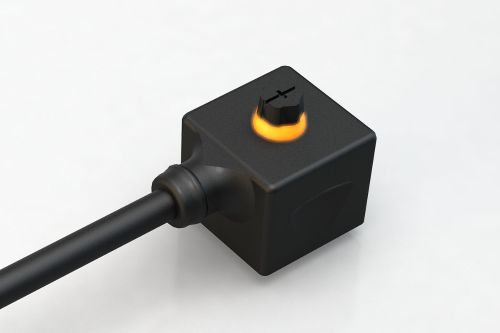

New: DIN A valve connector
Now with ecolink technology
- Simple push-on connection instead of screwing
- Faster installation, reduced error rate
- Safe, tight & vibration-resistant
Every environment has its own requirements. ecolink understands them.
ecolink connection technology from ifm is specifically designed for use in industrial automation. Field-proven product lines ensure the right fit for a wide range of applications and industries, from standard sensor-actuator connections to demanding custom solutions.
With their robust design and simple, tool-free installation, ecolink cables deliver real benefits in day-to-day operation. Reliable connections are ensured even under challenging conditions such as vibration, moisture and temperature fluctuations.
ecolink stands for robust, industrial connection technology. In-house development, application-oriented testing and close alignment with ifm’s sensors ensure high installation reliability and consistently dependable connections of the highest quality.
Product lines / product versions
| Link to products | EVC | EVF | EVM | EVT | EVW | EVCxxA | ENCxxA | Exxxx |
| Connection cables with socket |  |
|
|
|
|
|
|
|
| Connection cables with plug | |
|
|
|
|
|
 |
|
| Screened sensor cables | |
|
|
|
|
|
|
|
| Connection cables | |
|
|
|
|
|
|
|
| Ethernet cables | |
|
|
|
|
|
|
|
| CAN cables | |
|
|
|
|
|
|
|
| AMP cables | |
|
|
|
|
|
|
|
| Y splitters | EBC |
EBF |
|
EBT |
|
|
|
|
| Passive splitters | EBC |
EBF |
|
EBT |
|
|
|
|
| Wireable | |
|
|
|
|
|
|
|
| Adapter plugs | |
|
|
|
|
|
|
|
| Adapter sockets | |
|
|
|
|
|
|
|
| Valve plugs | |
|
|
|
|
|
|
|
Resistance properties of the different ecolink versions
| EVC | EBC | EVF | EBF | EVM | EVT | EBT | EVW | EVCxxA | ENCxxA | |
| Materials | ||||||||||
| Coupling nut | Brass, nickel-plated | Brass, nickel-plated | Stainless steel (316L / 1.4404) | Stainless steel (316L / 1.4404) | Stainless steel (316L / 1.4404) | Stainless steel (316L / 1.4404) | Stainless steel (316L / 1.4404) | Brass, non-stick | Stainless steel (316L / 1.4404) | Brass, nickel-plated |
| Body | TPU / PA | PA | PP / PA | PA | TPU | PVC | PA | TPU | TPU | TPU |
| Cable | PUR | PUR | MPPE | MPPE | PUR | PVC | PVC | PUR | PUR | PUR |
| Seal | FKM | FKM | EPDM | EPDM | FKM | EPDM | EPDM | FKM | FKM | FKM |
| Resistance properties | ||||||||||
| Oils and coolants/lubricants: Hocut 5450 Colometa ecoM625 Hycut ET46 Honilo 989 Rivolta K.S.P. 204 OEST H-LP 68 / Actis X HLPD68 |
|
|
|
|
|
|
|
|
|
|
| Salt spray | |
|
|
|
|
|
|
|
|
|
| Welding sparks | |
|
|
|
|
|
|
|
|
|
| ATEX | |
|
|
|
|
|
|
|
|
|
| Cleaning agents and disinfectants * | |
|
|
|
|
|
|
|
|
|
* (please note Ecolab approval – download on product page)
The ecolink range is designed to cover only the connector codings used in our in-house manufactured sensors. Accordingly, it includes A-, D- and L-coded versions as well as DIN Form A valve connectors. Other versions – such as B-, C-, T- or X-coding – are available as connection technology outside the ecolink range.
ecolink M12 versions
A-coded, 5 poles
- Typical applications: sensors
- Number of poles: 2 - 5
- Typical technical data:
• < 250 V AC
• < 300 V DC
• max. 4 A
A-coded, 8 poles
- Typical applications: sensors
- Number of poles: 6 - 8
- Typical technical data:
• < 60 V AC/DC
• max. 2 A
D-coded
- Typical applications: data cables
- Number of poles: 4
- Typical technical data:
• < 30 V AC
• < 60 V DC
• max. 4 A
• CAT 5e
L-coded
- Typical applications: voltage supply
- Number of poles: 4 + FE
- Typical technical data:
• < 50 V AC
• < 63 V DC
• max. 16 A
ecolink valve connector DIN A
- Typical applications: solenoid valves
- Number of poles: 2 + 2 PE
- Typical technical data:
• < 24 V AC/DC
• max. 4 A
ecolink M8 versions
M8, 3 poles
- Typical applications: sensors
- Typical technical data:
• < 50 V AC
• < 60 V DC
• max. 3 A
M8, 4 poles
- Typical applications: sensors
- Typical technical data:
• < 50 V AC
• < 60 V DC
• max. 3 A
Further connection technology
B-coded
- Typical applications: bus cables
- Number of poles: 4 or 5
- Typical technical data:
• < 48 V AC
• < 60 V DC
• max. 4 A
C-coded
- Typical applications: voltage supply
- Number of poles:
- Typical technical data:
• < 50 V AC
• < 60 V DC
• max. 16 A
T-coded
- Typical applications: voltage supply
- Number of poles: 4
- Typical technical data:
• < 50 V AC
• < 60 V DC
• max. 12 A
X-coded
- Typical applications: data cables
- Number of poles: 4
- Typical technical data:
• < 50 V AC
• < 60 V DC
• max. 0.5 A
• CAT6
