Contour / pattern matching
| Sensor type | Function |
Field of view (mm) |
Resolution (mm) |
Points to consider | |
|---|---|---|---|---|---|
 Contour / pattern match |
 |

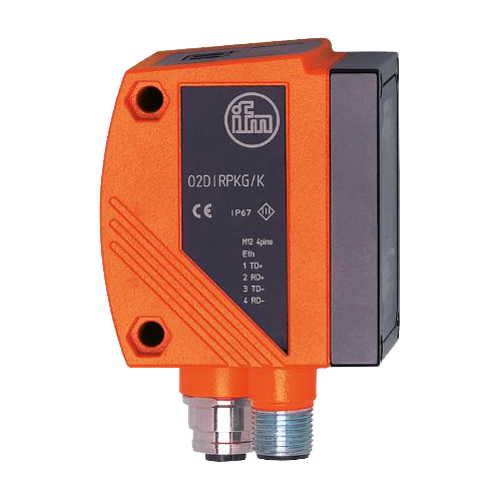

Pattern matching | • 15x11...400x300 • 16x12...640x480 • 33x24...1320x945 |
• 0.08… 2.5 • 0.1…4 • 0.3…8 |
• Quick set up with configuration wizard • PNP/NPN switching or Ethernet IP communication • Infrared light source • External lighting available |
 |
Shape detection | ||||
 |
Orientation | ||||
 |
Position | ||||
 |
Counting | ||||
 |
Sorting | ||||
