Programmable edge controllers for vibration: Select products
The fully programmable edge controller system includes the diagnostic electronics (VSE) and accelerometers (VSA/VSM/VSP). The VSE controllers have additional inputs for analog devices such as temperature and pressure.
Acceleration sensors (accelerometers) measure the dynamic forces at the machine surface and deliver the raw signal to the VSE for vibration monitoring or vibration diagnostics.
Browse our part numbers below to find the one that's right for your application. Then, follow our wiring guidelines for seamless integration into your facility.
VSE controllers
| Part number | Communication protocol | |
|---|---|---|
 |
 |
|
| IP20 | IP67 | |
| VSE150 | VSE950 | Profinet |
| VSE151 | VSE951 | EtherNet/IP |

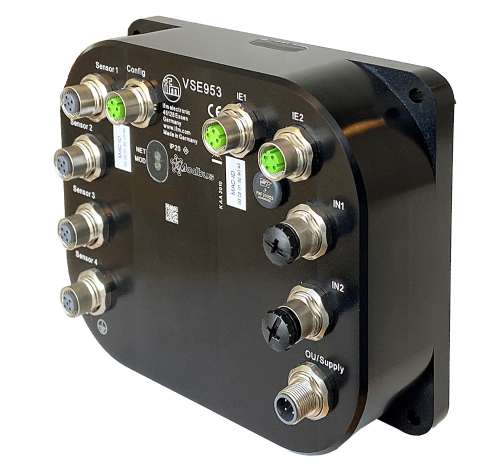

| VSE153 | VSE953 | Modbus TCP |

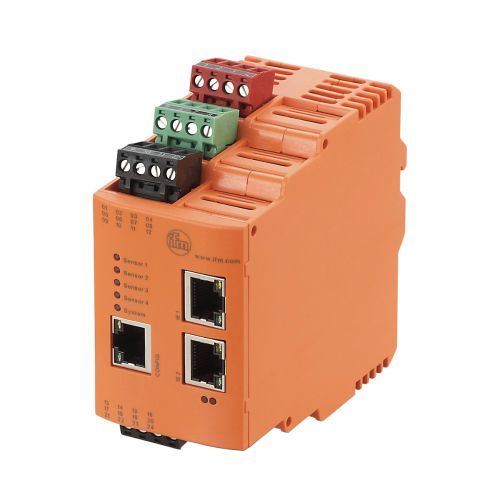

| VSE152 | - | EtherCAT |
| - | VSE903 | TCP/IP |
Accelerometers for the VSE
VSA / VSP acceleration sensors
Robust acceleration sensors in different housings of type VSA or VSP, also for mounting in difficult to access areas. Various measuring ranges with voltage output (100 mV/g) or current loop (0...10 mA). Connection to the VSE diagnostic electronics.
VSA acceleration sensors
Trouble-free operation in the event of fast movement or influence of high forces.
Integrated self-test for permanent safety.
Intrinsically safe acceleration sensor type VSP0xA
For the measurement of vibration in hazardous areas.
Connection to the VSE diagnostic electronics installed outside the ATEX zone via a barrier.
VSM acceleration sensors
Multi-axis acceleration sensors with MEMS chip and IEPE voltage output also detect vibrations in the axial and radial directions.
| VSA001 | VSA002 | VSA004 VSA005 |
VSA006 | VSA007 | VSA008 | VSA101 VSA201 |
VSA204 VSA205 |
VSM101 | VSM102 | VSM103 VSM104 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E30448 | M8 magnetic adapter |  |
|
|||||||||
| E30091 | M5 magnetic adapter | |
|
|
|
|
||||||
| E30449 | ¼"-28 UNF magnetic adapter | |
||||||||||
| E30471 | M8 90° adhesive adapter | |
|
|||||||||
| E30472 | ¼"-28 UNF adhesive adapter | |
||||||||||
| E30473 | M8 adhesive adapter | |
|
|||||||||
| E30474 | ¼-28 UNF adhesive adapter | |
||||||||||
| E30475 | M5 adhesive adapter | |
|
|
|
|
||||||
| E30468 | M5 / M8 mounting adapter - Ø 12.5 | |
|
|
|
|
|
|
||||
| E30469 | M5 / M8 mounting adapter - Ø 8.5 | |
|
|
|
|
|
|
||||
| E30493 | M8 mounting adapter - Ø 12.5 | |
|
|||||||||
| E30494 | M16 mounting adapter | |
|
|
|
|||||||
| E30495 | M8 mounting adapter | |
|
|||||||||
| E30539 | M5-M10 screw adapter | |
|
|
||||||||
| E30534 | M5-M12 screw adapter | |
|
|
||||||||
| E30540 | M5-M16 screw adapter | |
|
|
||||||||
| E30535 | M5-M20 screw adapter | |
|
|
||||||||
| E30536 | M8-M12 screw adapter | |
|
|||||||||
| E30537 | M8-M16 screw adapter | |
|
|||||||||
| E30538 | M8-M20 screw adapter | |
|
| VSP001 | VSP003 VSP004 |
VSP01A VSP02A |
||
|---|---|---|---|---|
| E30448 | M8 magnetic adapter | |
|
|
| E30449 | ¼"-28 UNF magnetic adapter | |
||
| E30471 | M8 90° adhesive adapter | |
|
|
| E30472 | ¼"-28 UNF adhesive adapter | |
||
| E30473 | M8 adhesive adapter | |
|
|
| E30474 | ¼-28 UNF adhesive adapter | |
||
| E30468 | M5 / M8 mounting adapter - Ø 12.5 | |
|
|
| E30469 | M5 / M8 mounting adapter - Ø 8.5 | |
|
|
| E30493 | M8 mounting adapter - Ø 12.5 | |
||
| E30495 | M8 mounting adapter | |
||
| E30536 | M8-M12 screw adapter | |
||
| E30537 | M8-M16 screw adapter | |
||
| E30538 | M8-M20 screw adapter | |
|
|
