LiDAR vs. radar: Comprehensive guide and comparisons

The LiDAR sensor vs. radar sensor landscape is rapidly evolving. Breakthrough innovations transform both technologies' capabilities and cost structures. Advances like 4D radar, improved LiDAR affordability, and sophisticated sensor fusion systems challenge traditional assumptions about when to use each technology.

Understanding each technology's strengths and limitations enables engineers to optimize performance while managing costs and environmental challenges.

Selecting between LiDAR vs. radar for distance measurement and object detection requires evaluating several critical factors:

• Required accuracy and resolution levels
• Operating environment conditions (weather, lighting, temperature)
• Detection range  and opening angle (monitoring coverage) requirements
• Budget constraints and cost considerations
• Integration complexity and processing capabilities

This comprehensive guide examines how LiDAR vs. radar perform across different applications, from autonomous vehicles to industrial automation.

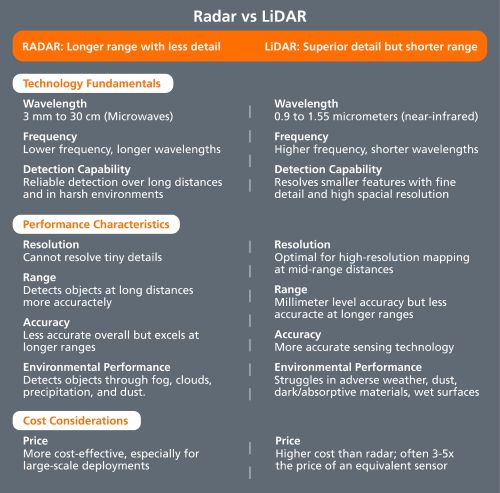

Radar and LiDAR technologies differ in features, advantages, and drawbacks.

Technical considerations

LiDAR uses micrometer-range wavelengths (0.9 to 1.55 micrometers, near-infared light). Radar uses wavelengths between 3 mm and 30 cm (microwaves).

Radar waves have peaks and troughs spaced much farther apart than LiDAR’s light waves. Shorter wavelengths have higher frequencies (they oscillate up and down faster).

This core difference affects their sensing capabilities and limitations:

• Wavelengths must be smaller than or comparable to detected objects. Shorter wavelengths resolve smaller features, enabling LiDAR's fine detail and high spatial resolution.
• However, short, high-frequency wavelengths are easily blocked or scattered by tiny particles like dust or raindrops.
• Longer wavelengths like radar microwaves cannot resolve tiny details.
• However, lower frequency and larger wavelengths bend around obstacles, enabling reliable detection over longer distances and in harsh environments.

LiDAR provides superior detail but shorter range, while radar offers longer range with less detail. These fundamentals determine optimal technology selection for industrial or mobile applications.

Performance

LiDAR is the more accurate sensing technology. But, radar is closing the gap in terms of resolution.

• Resolution: LiDAR sensors have higher resolution than radar. They are optimal for high-resolution mapping at mid-range distances.
• Range: LiDAR provides millimeter-level accuracy but is less accurate at longer ranges. Radar detects objects at long distances more accurately.
• Environment: Radar detects objects through fog, clouds, precipitation, and dust. LiDAR struggles in adverse weather and with dark/absorptive materials and wet surfaces.

Costs

LiDAR has a higher cost than radar. It is often three to five times the price of an equivalent sensor. Radar is more cost-effective, especially for large-scale deployments.

Radar and LiDAR technologies are converging toward higher capability and tighter integration rather than direct competition. This trend will likely strengthen over the next five years, with sensor fusion becoming more widespread.

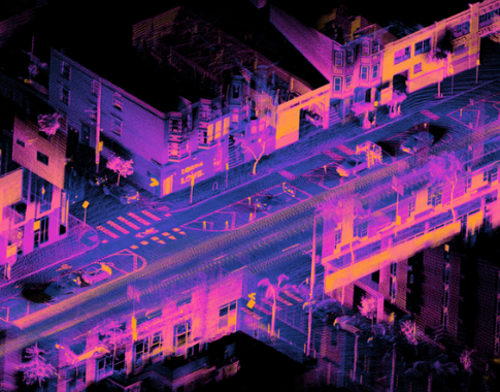

LiDAR will likely remain the leading precision mapping solution for surveying, autonomous vehicles, robotics*, and smart cities. It generates high-resolution 3D environmental models with superior spatial accuracy. and is the standard for centimeter-level 3D detail and object classification.

However, radar is better-suited for outdoor, harsh weather and environment and large-scale industrial deployments. It is also evolving into “imaging” or 4D sensing for richer point clouds with range, azimuth, elevation, and Doppler.

4D radar achieves this through larger virtual arrays, MIMO architectures, improved signal processing, and increasing radar-on-chip integration. These feature reduce cost and size, while AI/ML techniques add semantic understanding beyond simple detections.

Meanwhile LiDAR is shifting toward solid-state architectures, with clearer segmentation between 905 nm (cost-driven) and 1550 nm (long-range, higher eye-safe power) designs. There is also building momentum behind coherent/FMCW LiDAR for direct velocity measurement and improved interference robustness.

Across both technologies, standardized testing and validation are becoming more important as performance claims move closer to safety-critical use. This makes sensor fusion the dominaent industry strategy.

In this model, increasingly imaging-like radar and more robust, intelligent LiDAR work together at the system level to optimize reliability, cost, and safety. This will be a change from the two technologies competing head-to-head.

The LiDAR vs. radar choice requires balancing precision requirements against environmental challenges and cost constraints.

LiDAR excels in high-resolution 3D mapping and precise object detection at short to medium ranges, while radar provides reliable long-range detection in harsh conditions at lower cost.

For safety-critical applications, sensor fusion combining both technologies often provides optimal performance by leveraging each technology's strengths while compensating for their limitations.

Key decision factors for LiDAR vs. radar selection include: operating environment severity, required detection accuracy, budget, and integration complexity.

As both technologies continue evolving, staying informed about innovations like 4D radar and cost-effective LiDAR solutions enables optimal sensing technology decisions.
