- OU5026
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Diffuse reflection sensor for short ranges |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage [V] | 10...55 DC |
|---|---|
| Current consumption [mA] | 35; ((24 V)) |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length [nm] | 880 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 160 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range [mm] | 20...40; (white paper 200 x 200 mm) |
|---|---|
| Max. light spot diameter [mm] | 20 |
| Light spot dimensions refer to | at maximum range |
| Diffuse reflection sensor for short ranges | yes |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Housing | rectangular | |
|---|---|---|
| Dimensions [mm] | 28 x 16 x 51 | |
| Materials | PPO modified | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PVC; 3 x 0.34 mm² |
|---|
Diagrams and graphs
|

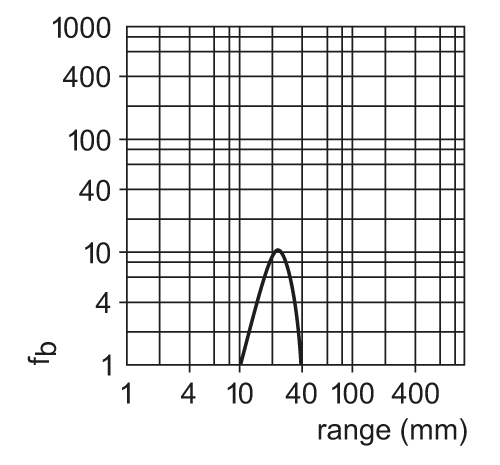

excess gain graph
|
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OU5026-00 — 06.03.2003 —
