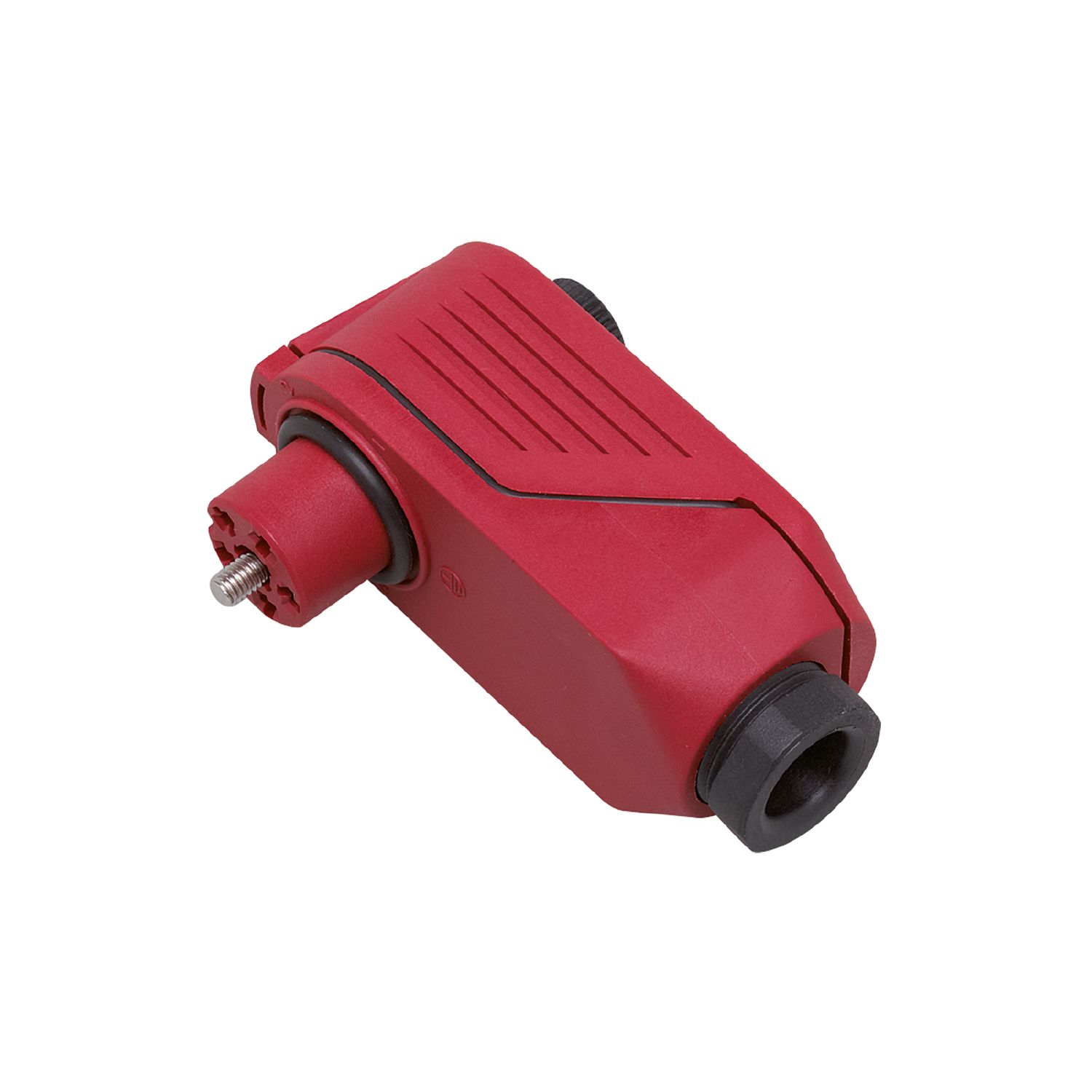

Wirable socket
E10087
SDOAT050--SFKPG
Wirable socket
E10087
SDOAT050--SFKPG
- For safe electrical connections
- Wide operating temperature range
- Angled type for use where space is restricted
- Safe cable connection with screw terminals
Article no longer available - archive entry
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 65.2 |
|---|---|
| Materials | PA |
| Moulded-body material | PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals: ...1.5 mm²; Cable sheath: Ø 5...11 mm |
Electrical connection - socket
| Connection | Connector: 1 x Ø 28 mm, angled; coding: A; Moulded body: PA |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10087-01 — 07.10.2011 —
E10087 –
SDOAT050--SFKPG
Electrical connection
terminals: ...1.5 mm²; Cable sheath: Ø 5...11 mm
Electrical connection - socket
Connector: 1 x Ø 28 mm, angled; coding: A; Moulded body: PA
