Retro-reflective sensor

OA5105

OAR-FCKG/T

Retro-reflective sensor

OA5105

OAR-FCKG/T

Article no longer available - archive entry
Alternative articles: O4P500 Product comparison: OA5105 / O4P500 When selecting an alternative article and accessories please note that technical data may differ!
Product characteristics
Type of light infrared light
Housing rectangular
Application
Special feature Function check output
Function principle Retro-reflective sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 50
Protection class II
Reverse polarity protection yes
Type of light infrared light
Wave length [nm] 880
Outputs
Electrical design PNP/NPN
Output function light-on/dark-on mode; (parameterisable)
Function check output yes
Max. current load for function check output [mA] 10
Permanent current rating of switching output DC [mA] 250
Max. current load in dual output mode [mA] 100
Switching frequency DC [Hz] 300
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Time function [s] 0.5...10
Detection zone
Range [m] 0.25...10; (Prismatic reflector Ø 80 E20005)
Range referred to prismatic reflector [m] 0.25...10; (Prismatic reflector Ø 80 E20005)
Range adjustable yes
Max. light spot diameter [mm] 350
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
Mechanical data
Weight [g] 0.285
Housing rectangular
Dimensions [mm] 90 x 30 x 70
Materials PPO modified
Lens material
PMMA
Displays / operating elements
Display
switching status 1 x LED, yellow
operation 1 x LED, green
function 1 x LED, red
Operating elements
on-delay or off-delay selectable via slide switch
Accessories
Items supplied
Angle bracket: 1, E20514
screwdrivers
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5
Diagrams and graphs

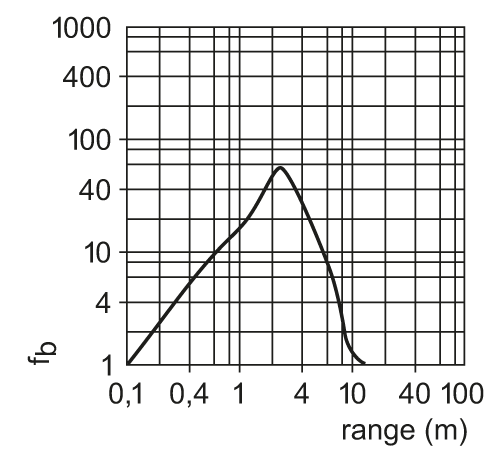

excess gain graph
