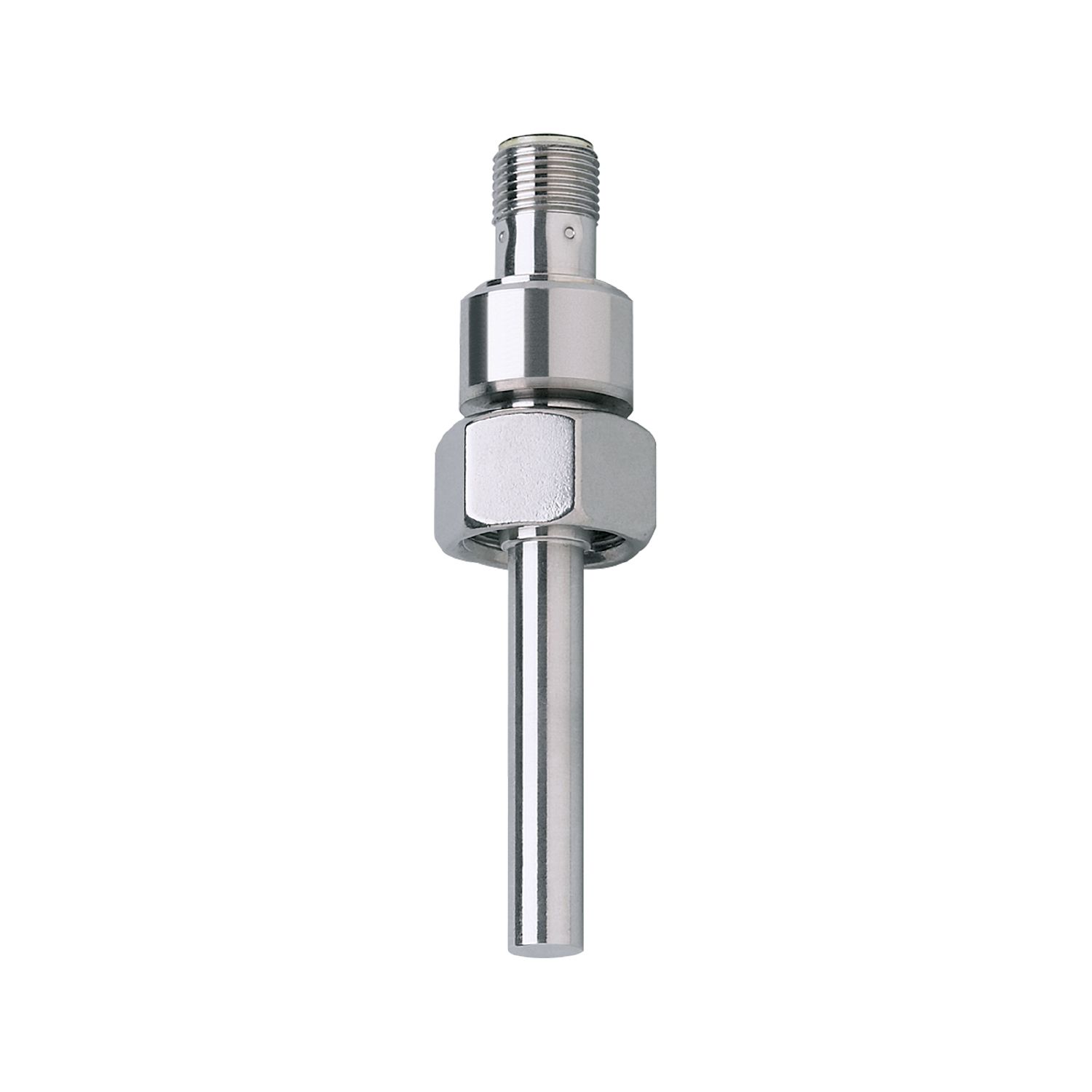

TM9550

Temperature sensor with process connection

TM-045-BEM18 /US

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Precise temperature measurement in containers, tanks and pipes
  • For the connection to an evaluation unit
  • Very short response time for use in processes with fast temperature fluctuations
  • Robust stainless steel housing with high protection rating and high pressure resistance
  • Variable process connection using adapters
  • cul
Download
Technische Details
Product characteristics
Measuring range
-40...125 °C -40...257 °F
Process connection threaded connection M18 x 1,5 Internal thread
Installation length EL [mm] 60
Application
System gold-plated contacts
Measuring element 1 x Pt 1000; (to DIN EN 60751, class B)
Media liquids and gases
Pressure rating [bar] 300
Minimum installation depth [mm] 15
Electrical data
Protection class III
Measuring/setting range
Probe length L [mm] 44
Measuring range
-40...125 °C -40...257 °F
Accuracy / deviations
Accuracy [K] ± (0,30 K + 0,005 x |t|)
Reaction times
Dynamic response T05 / T09 [s] 1 / 3; (according to DIN EN 60751)
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...100
Protection IP 68; IP 69K
Tests / approvals
MTTF [years] 22831
Mechanical data
Weight [g] 81.5
Material stainless steel (1.4404 / 316L)
Materials (wetted parts) stainless steel (1.4404 / 316L)
Process connection threaded connection M18 x 1,5 Internal thread
Probe diameter [mm] 8.2
Installation length EL [mm] 60
Remarks
Remarks
cULus - Class 2 source required
The values for accuracy apply to flowing water.
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Contacts: gold-plated
