Article no longer available - archive entry

Alternative article: OR0004 – Product comparison: OR0007 / OR0004
Note any deviating technical data for the selection of the alternative article and the accessories.

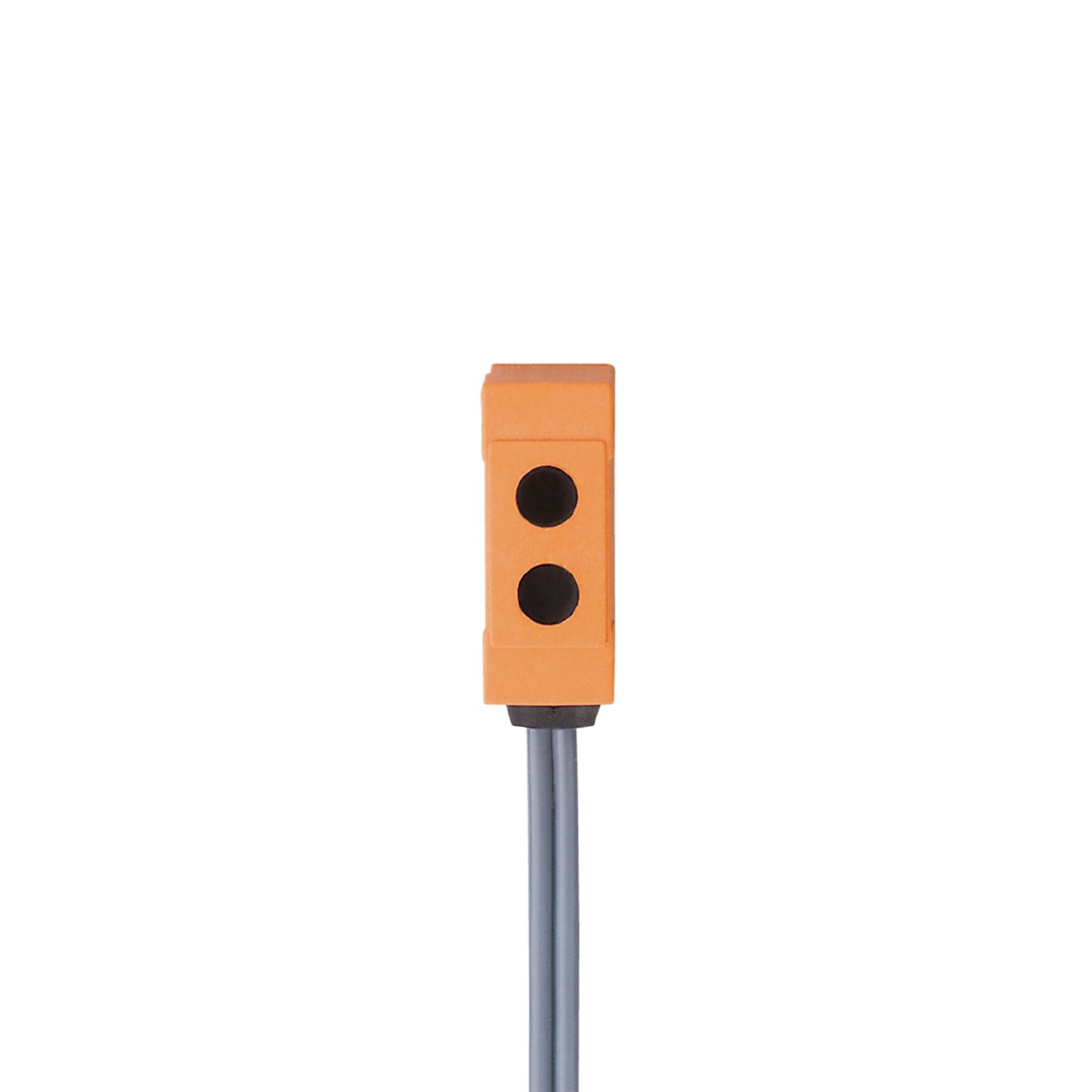

OR0007

Retro-reflective sensor

ORR/ORT-V/6M

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Particularly compact housing for use where space is restricted
  • Very long range
  • For connection to a switching amplifier
  • Ready for operation immediately thanks to fixed setting
Download
Technische Details
Product characteristics
Type of light Infrared light
Housing rectangular
Application
Function principle Retro-reflective sensor
Electrical data
Connection at circuit amplifier yes
Switching amplifiers Connection at circuit amplifier OV5012, OV0010
Type of light Infrared light
Wave length [nm] 950
Outputs
Short-circuit protection no
Overload protection no
Monitoring range
Range referred to prismatic reflector [m] 0.3...1; (Prismatic reflector Ø 80 E20005)
Range [mm] < 200; (white paper 200 x 200 mm)
Operating conditions
Ambient temperature [°C] -20...80
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 26548
Mechanical data
Weight [g] 0.141
Housing rectangular
Material PPO modified
Lens alignment Side sensing
Accessories
Accessories (supplied)
Angle bracket: 1 x, E20212
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 6 m; 2 x 0.14 mm²
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OR0007-00 — 28.05.2013 —
