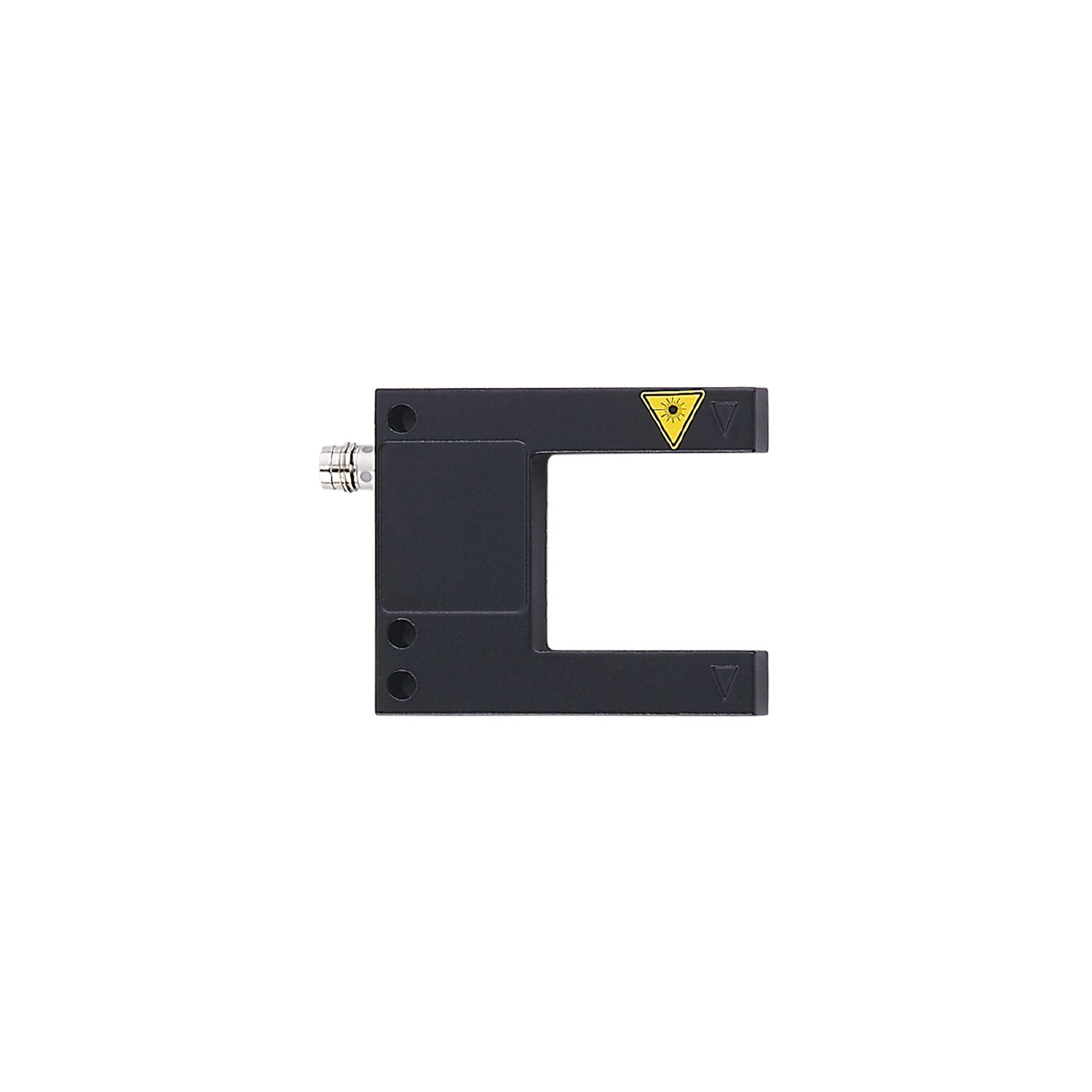

Photoelectric fork sensor

Name: OPU700
Brand: ifm
SKU: OPU700
Price: 375.50 USD

OPU700

OPULFPKG/IO-Link/AS

Photoelectric fork sensor

OPU700

OPULFPKG/IO-Link/AS

Reliable detection of tiny objects
Quick set-up: no need to align transmitter and receiver
Amount of light is continuously monitored so soiling is deteced
Operating modes can be set in accordance with the specific application

View other products in this family of sensors

Product characteristics

Type of light	red light
Laser protection class	1

Application

Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...30 DC; (cULus - Class 2 source required)
Insulation rating [V]	500
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	150
Type of light	red light
Wave length [nm]	655

Outputs

Electrical design	PNP/NPN; (configurable)
Output function	light-on/dark-on mode; (selectable)
Max. voltage drop switching output DC [V]	1
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	5000
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Diameter of the smallest detectable object [mm]	0.05

Accuracy / deviations

Repeatability [mm]	0.01

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel; Process Data Variable

SIO mode

yes

Required master port class

Min. process cycle time [ms]

3.2

IO-Link process data (cyclical)

Function	bit length
process value	16
device status	4
binary switching information	1

IO-Link functions (acyclical)

application specific tag; operating hours counter; switching cycles counter; Min./Max. Signalspeicher; Operating mode

Supported DeviceIDs

Type of operation	DeviceID
default	1209

Note

For further information please see the IODD PDF file at "Downloads"

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV
DIN EN 61000-4-6 HF conducted	10 V
DIN EN 55011	class A

Vibration resistance

EN 60068-2-6 Fc

(10-55) Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz

Shock resistance

EN 60068-2-27 Ea

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Laser protection class

Notes on laser protection

Caution:	Laser light
laser class:	1
	EN / IEC60825-1:2007
	EN / IEC60825-1:2014
	Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.

MTTF [years]

548

Mechanical data

Weight [g]	81.5
Dimensions [mm]	50 x 10 x 60
Fork depth D [mm]	35
Fork width W [mm]	30
Material	housing: diecast zinc powder-coated; lens: glass

Displays / operating elements

Display

Switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

Other data

operating mode adjustable via IO-Link

	standard	High Resolution	Power	Speed
Resolution	0.05 mm	0.03 mm	0.1 mm	0.05 mm
Repeatability	0.01 mm	0.01 mm	0.015 mm	0.015 mm
Switching frequency	5000 Hz	2000 Hz	1000 Hz	10000 Hz

Repeatability

3 σ

ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OPU700-02 — 24.10.2019 —
