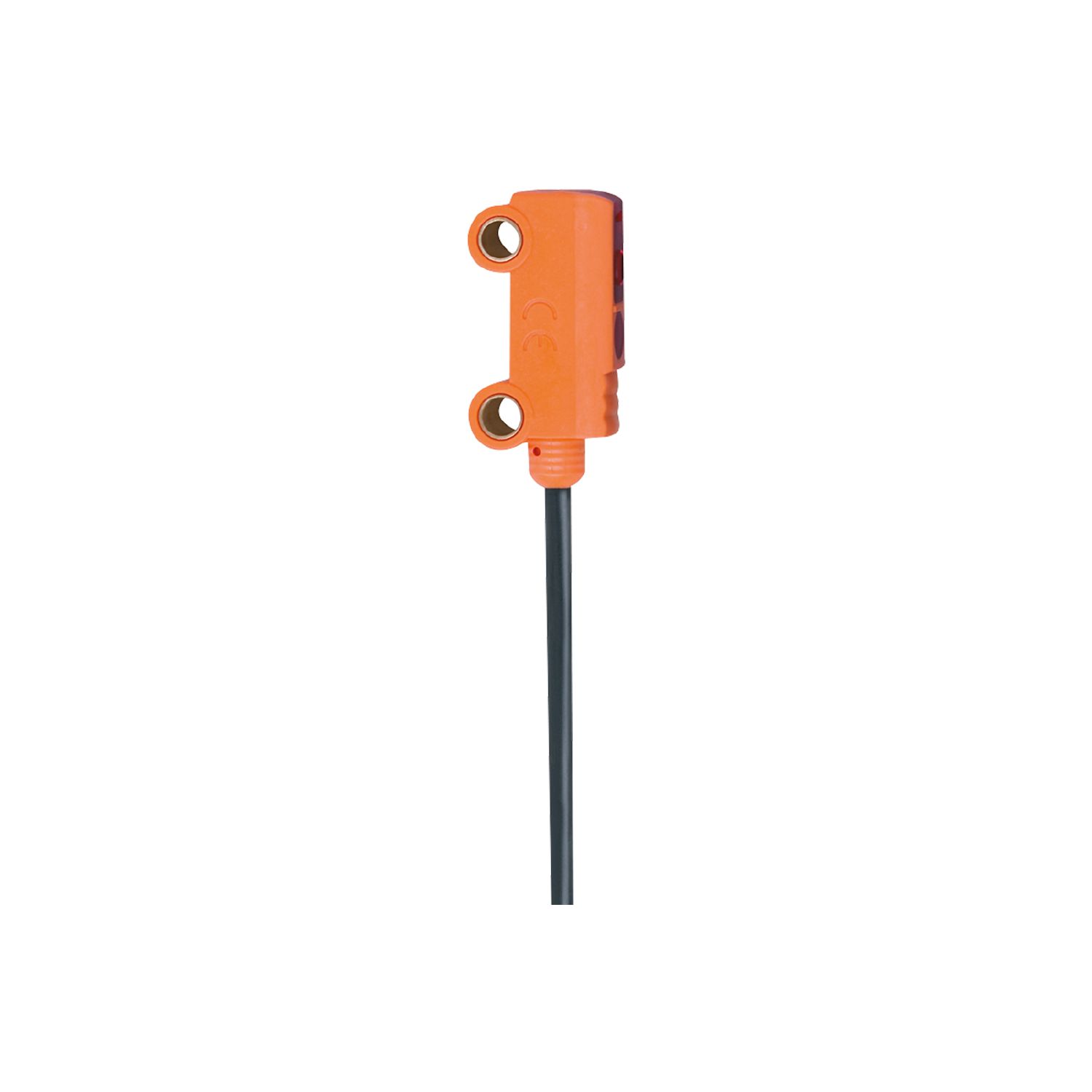

Diffuse reflection sensors with background suppression

OH5006

OHH-HPKG/2M

Diffuse reflection sensors with background suppression

OH5006

OHH-HPKG/2M

Extremely small housing for use where space is restricted
Reliable detection of tiny objects
For applications in robotics, assembly and handling technology
Visible red light for simple alignment
Ready for operation immediately thanks to fixed setting

Article no longer available - archive entry

Alternative articles: O8H206 Product comparison: OH5006 / O8H206 When selecting an alternative article and accessories please note that technical data may differ!

Product characteristics

Type of light	red light
Housing	rectangular

Application

System	Background suppression
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Typ. lifetime [h]	75000
Reference temperature for service life [°C]	25

Outputs

Electrical design	PNP
Output function	light-on mode
Permanent current rating of switching output DC [mA]	50
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Range [mm]	1...30; (white paper 200 x 200 mm 90 % remission)
Max. light spot diameter [mm]	4.5
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Reaction times

Response time [s]	< 0.6

Operating conditions

Ambient temperature [°C]	-20...50
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Weight [g]

28.2

Housing

rectangular

Dimensions [mm]

25.1 x 7.6 x 12.5

Material

ABS

Lens material

PMMA

Lens alignment

Side sensing

Displays / operating elements

Display

Switching status	1 x LED, yellow
Unsafe zone	1 x LED, yellow flashing

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.09 mm²
