  2. OG5064

Through-beam sensor receiver

OG5064

OGELFNKG/B1/V4A/US-100

Through-beam sensor receiver

OG5064

OGELFNKG/B1/V4A/US-100

Article no longer available - archive entry
Product characteristics
Type of light red light
Housing Threaded type
Application
System gold-plated contacts; Function check output
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 30
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 675
Outputs
Electrical design NPN
Output function light-on/dark-on mode; (configurable)
Max. voltage drop switching output DC [V] 2.5
Function check output yes
Max. voltage drop of function check output [V] 3.5
Max. current load for function check output [mA] 10
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 500
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Transmitter / receiver receiver
Range [m] < 60
Range adjustable yes
Diameter of the smallest detectable object [mm] 3
Operating conditions
Ambient temperature [°C] -10...50
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
Mechanical data
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 72
Thread designation M18 x 1
Material stainless steel (1.4404 / 316L); PBT
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Function 1 x LED, red
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A; Contacts: gold-plated
Diagrams and graphs

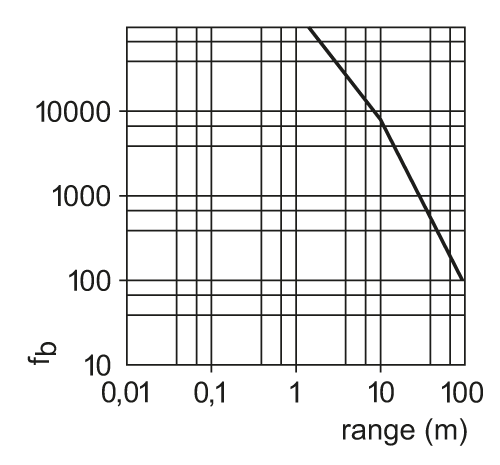

excess gain graph
