Retro-reflective sensor

OC5230

OCPGHPKG/US-100

Retro-reflective sensor

OC5230

OCPGHPKG/US-100

Article no longer available - archive entry
Alternative articles: O5G500 Product comparison: OC5230 / O5G500 When selecting an alternative article and accessories please note that technical data may differ!
Product characteristics
Type of light red light
Housing rectangular
Application
Function principle Retro-reflective sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 80
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 660
Outputs
Electrical design PNP
Output function light-on mode
Max. voltage drop switching output DC [V] 2
Max. current load for function check output [mA] 100
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [m] < 1.5; (Prismatic reflector Ø 80 E20005)
Range adjustable yes
Max. light spot height [mm] 13
Light spot dimensions refer to Range
Reaction times
Response time [s] 0.5
Operating conditions
Ambient temperature [°C] -10...55
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
Mechanical data
Housing rectangular
Dimensions [mm] 49 x 15 x 42
Material diecast zinc
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Accessories
Items supplied
screwdrivers
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Diagrams and graphs

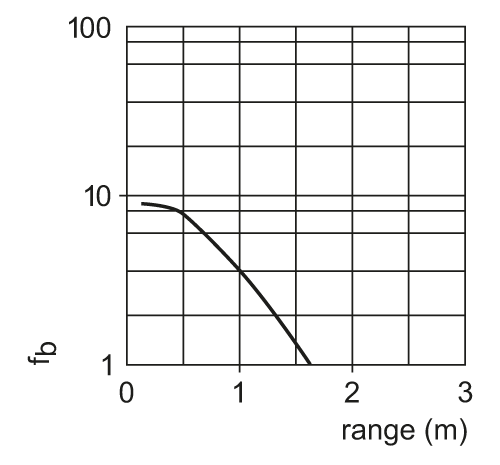

excess gain graph
