  2. OB5011

Fiber-optic amplifier

OB5011

OBF-FPKG/T

Fiber-optic amplifier

OB5011

OBF-FPKG/T

Article no longer available - archive entry
Alternative articles: OBF502 Product comparison: OB5011 / OBF502 When selecting an alternative article and accessories please note that technical data may differ!
Product characteristics
Type of light red light
Housing rectangular
Application
System Function check output
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 35; ((36 V))
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 660
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (configurable)
Max. voltage drop switching output DC [V] 2.5
Function check output yes
Max. voltage drop of function check output [V] 3.5
Max. current load for function check output [mA] 10
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 500
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Time function [s] 0.002...0.09
Monitoring range
Range [m] 0...1.2; (Through-beam sensor)
Range [mm] 0...70; (Diffuse reflection sensor)
Range adjustable yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
Mechanical data
Housing rectangular
Dimensions [mm] 36 x 15 x 60
Material $3SGLWE
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Unsafe zone 1 x LED, red
Excess gain 4 x LED, green
Remarks
Remarks
light-on mode corresponds to the NC output function for through-beam fibers
corresponds to the NO output function for diffuse-reflection fibers
dark-on mode corresponds to the NO output function for through-beam fibers
corresponds to the NC output function for diffuse-reflection fiber optics
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC; 4 x 0.34 mm²
Diagrams and graphs

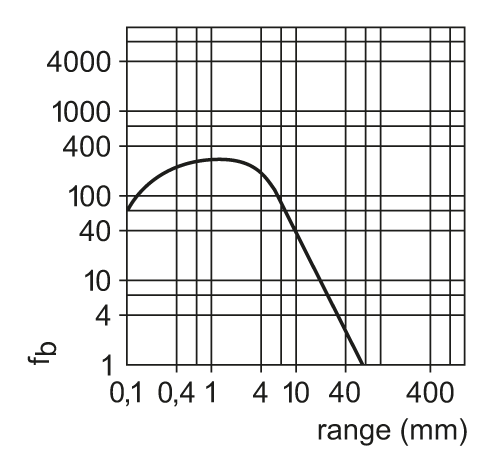

excess gain graph
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OB5011-00 — 11.02.2009 —
