OA0103

Through-beam sensor receiver

OA0103

OAE-FKOA/T

Through-beam sensor receiver

OA0103

OAE-FKOA/T

Article no longer available - archive entry

Alternative articles: OA0102 Product comparison: OA0103 / OA0102 When selecting an alternative article and accessories please note that technical data may differ!

Product characteristics

Type of light	Infrared light
Housing	rectangular

Application

Function principle	Through-beam sensor

Electrical data

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Max. power consumption [VA]	3.5
Protection class	II
Reverse polarity protection	no
Type of light	Infrared light
Wave length [nm]	880

Outputs

Electrical design	Relay
Output function	light-on/dark-on mode; (configurable)
Contact rating	250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W
Short-circuit proof	no
Overload protection	no
Time function [s]	0.5...10

Monitoring range

Transmitter / receiver	receiver
Range [m]	25...50; (depending on the transmitter)
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Weight [g]

0.304

Housing

rectangular

Dimensions [mm]

90 x 30 x 70

Material

PPO modified

Lens material

PMMA

Displays / operating elements

Display

Switching status	1 x LED, yellow
Power	1 x LED, green
Function	1 x LED, red

Operating elements

On-delay or off-delay selectable via slide switch

Accessories

Items supplied

Angle bracket: 1, E20514

screwdrivers

Remarks

Recommendation: check the unit for reliable function after a short circuit.

Pack quantity

1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5

Diagrams and graphs

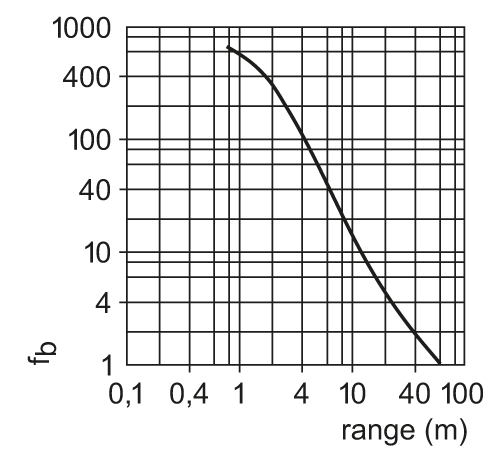

excess gain graph
