O4H500

Diffuse reflection sensors with background suppression

O4H-FPKG/US100

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Very long range
  • Precise background suppression
  • Sensitivity adjustable via teach buttons
  • Robust housing for use in harsh industrial environments
  • Programmable light-on/dark-on mode
  • ce
  • eac
  • cul
Download
Technische Details
Product characteristics
Type of light red light
Housing rectangular
Dimensions [mm] 74.4 x 27 x 63.8
Application
System Background suppression
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC; (cULus - Class 2 source required)
Current consumption [mA] 25
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 624
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [mm] 100...2600; (white paper 200 x 200 mm 90 % remission)
Range on white object (90 % remission) [mm] 100...2600
Range on grey object (18 % remission) [mm] 100...1300
Range on black object (6 % remission) [mm] 100...900
Range adjustable yes
Max. light spot diameter [mm] 50
Light spot dimensions refer to Range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 355
Mechanical data
Weight [g] 126.5
Housing rectangular
Dimensions [mm] 74.4 x 27 x 63.8
Material housing: PA; Front framework: stainless steel; operator interface: TPE
Lens material
PMMA
Lens alignment Side sensing
Displays / operating elements
Display
Switching status 1 x LED, yellow
Teach function yes
Electronic lock yes
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

a: sensor
b: object
c: background
x: distance sensor/object [mm]
y: min. distance object/background [mm]

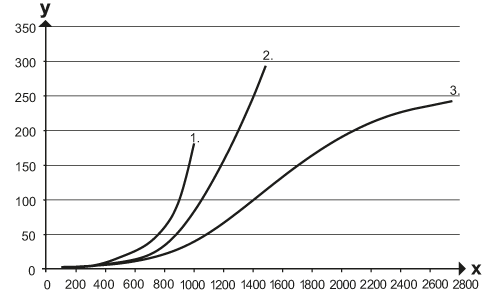

Background suppression chart
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — O4H500-00 — 02.04.2008 —
