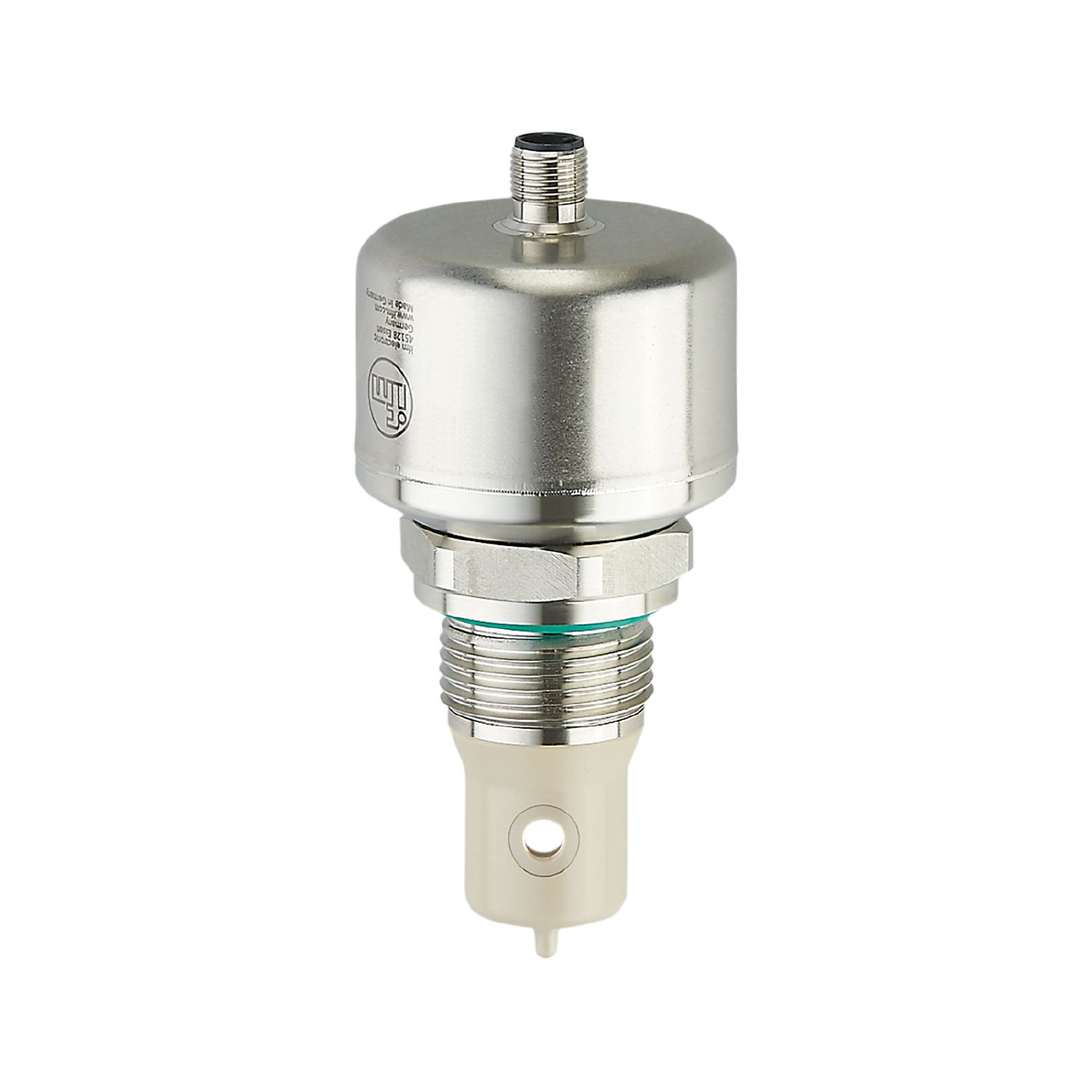

Inductive conductivity sensor

Name: LDL210
Brand: ifm
SKU: LDL210
Price: 1426.50 USD

LDL210

IND CONDUCTIVITY HYG G1 SC

Inductive conductivity sensor

LDL210

IND CONDUCTIVITY HYG G1 SC

Reduce inaccuracies associated with a time-based cleaning process
Improve process performance with flexible measurement points
Compact, high-quality sensor design prevents failures and unplanned downtime

Simplify your installation and commissioning processes
Loss-free signal transmission of measurement values

Digital meets analog: integrating modern IO-Link sensors the analog way. The EIO104 allows you to realize two analog signals from intelligent IO-Link sensors with several process values.

View other products in this family of sensors

Product characteristics

Number of inputs and outputs	Number of analog outputs: 1
Process connection	threaded connection G 1 external thread sealing cone

Application

System

gold-plated contacts

Media

Conductive liquids

Note on media

water

milk

CIP liquids

Cannot be used for

See the operating instructions, chapter "Function and features".

Medium temperature [°C]

-25...100; (< 1 h: 150)

Pressure rating [bar]

Vacuum resistance [mbar]

-1000

Electrical data

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 100
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	2
Measuring principle	inductive

Inputs / outputs

Number of inputs and outputs	Number of analog outputs: 1

Outputs

Total number of outputs	1
Output signal	analog signal; IO-Link
Output function	analog output; scalable; selectable conductivity / temperature
Number of analog outputs	1
Analog current output [mA]	4...20
Max. load [Ω]	500

Measuring/setting range

conductivity measurement

Measuring range [µS/cm]

100...1000000

Resolution [µS/cm]

0...10.000	1
10.000...100.000	10
100.000...1.000.000	100

Temperature measurement

Measuring range [°C]	-25...150

Accuracy / deviations

conductivity measurement

Accuracy (in the measuring range)	2 % MW ± 25 µS/cm
Drift [%/K]	0,1 %/K MW ± 25 µS/cm
Repeatability	1 % MW ± 25 µS/cm
Long-term stability	0,5 % MW ± 25 µS/cm

Temperature measurement

Accuracy [K]	20...50 °C: < ± 0,2 K; -25...150 °C: < ± 1,5 K
Repeatability [K]	0,2
Resolution [K]	0.1

Reaction times

conductivity measurement

Response time [s]	< 2; (T09; Damping = 0)

Temperature measurement

Response time [s]	< 40; (T09)

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Measuring Sensor, Identification and Diagnosis

SIO mode

Required master port class

Process data analog

Min. process cycle time [ms]

5.6

Supported DeviceIDs

Type of operation	DeviceID
default	922

Operating conditions

Ambient temperature [°C]	-40...60
Storage temperature [°C]	-40...85
Protection	IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68)

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-3	in a closed metal tank

Shock resistance

DIN EN 60068-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10...2000 Hz)

UL approval

File number UL

E364788

Mechanical data

Weight [g]	736.5
Material	stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Materials (wetted parts)	PEEK
Process connection	threaded connection G 1 external thread sealing cone

Remarks

Attention: The unit must only be installed in a process connection for G1 sealing cone.

The G1A sealing cone of the unit is only suited for adapters with metal end stop.

MW = Measured value

Notes

Digital meets analog: integrating modern IO-Link sensors the analog way. The EIO104 allows you to realize two analog signals from intelligent IO-Link sensors with several process values.

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12 (EN 61067-2-101); coding: A; Contacts: gold-plated
