Application
| System | gold-plated contacts; Drag chain suitability |
|---|
Electrical data
| Operating voltage [V] | < 25 AC / < 60 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 134.6 | ||
|---|---|---|---|
| Dimensions [mm] | 15.5 x 15.5 x 43.9 | ||
| Material | PUR | ||
| Molded-body material | PUR | ||
| Material nut | diecast zinc | ||
| Drag chain suitability | yes | ||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection

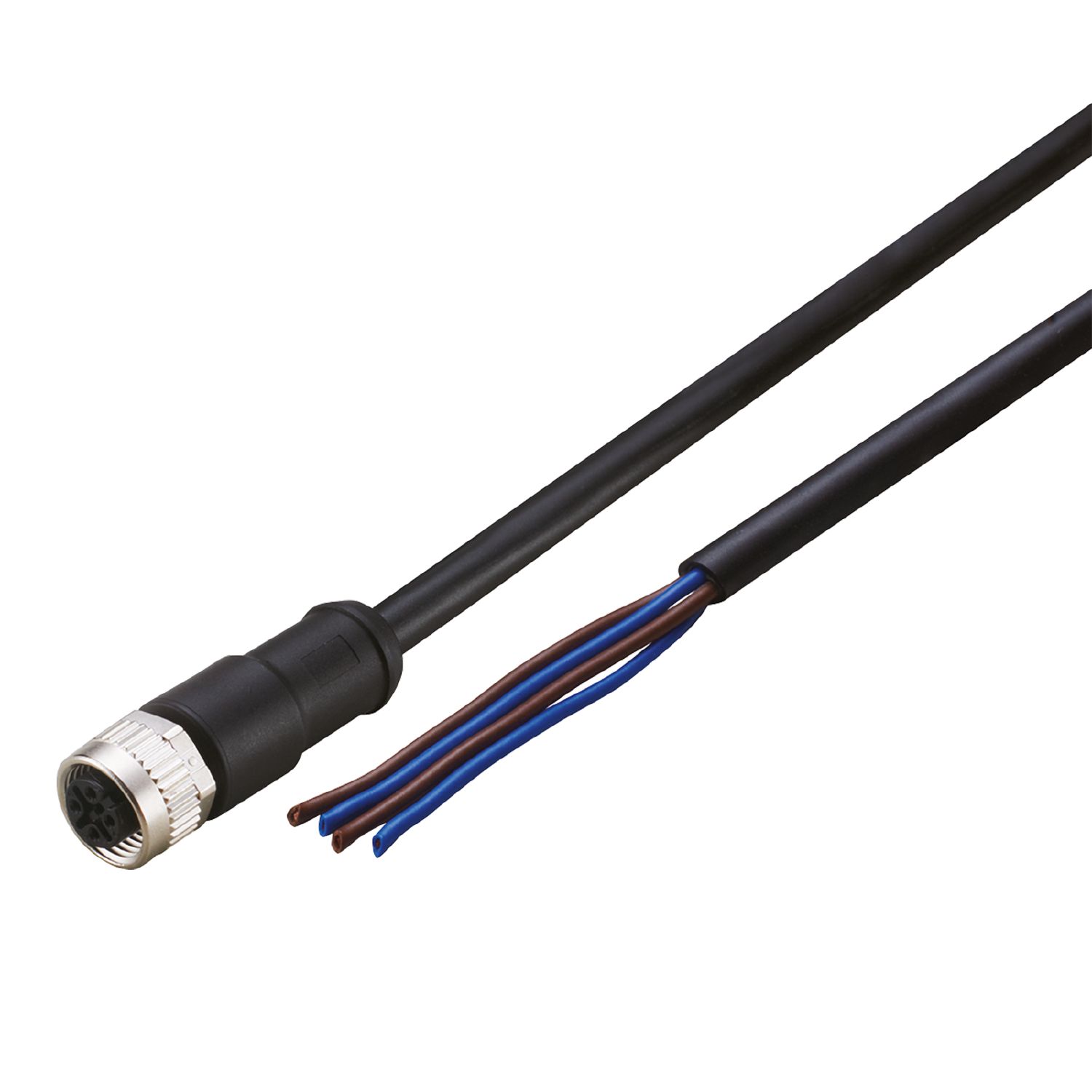

| Cable: 2 m, PUR, black, Ø 6 mm; 4 x 0.75 mm² |
Electrical connection - Socket
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E3M131-01 — 05.09.2017 —
