Adapter cables for cameras with video output
E2M260

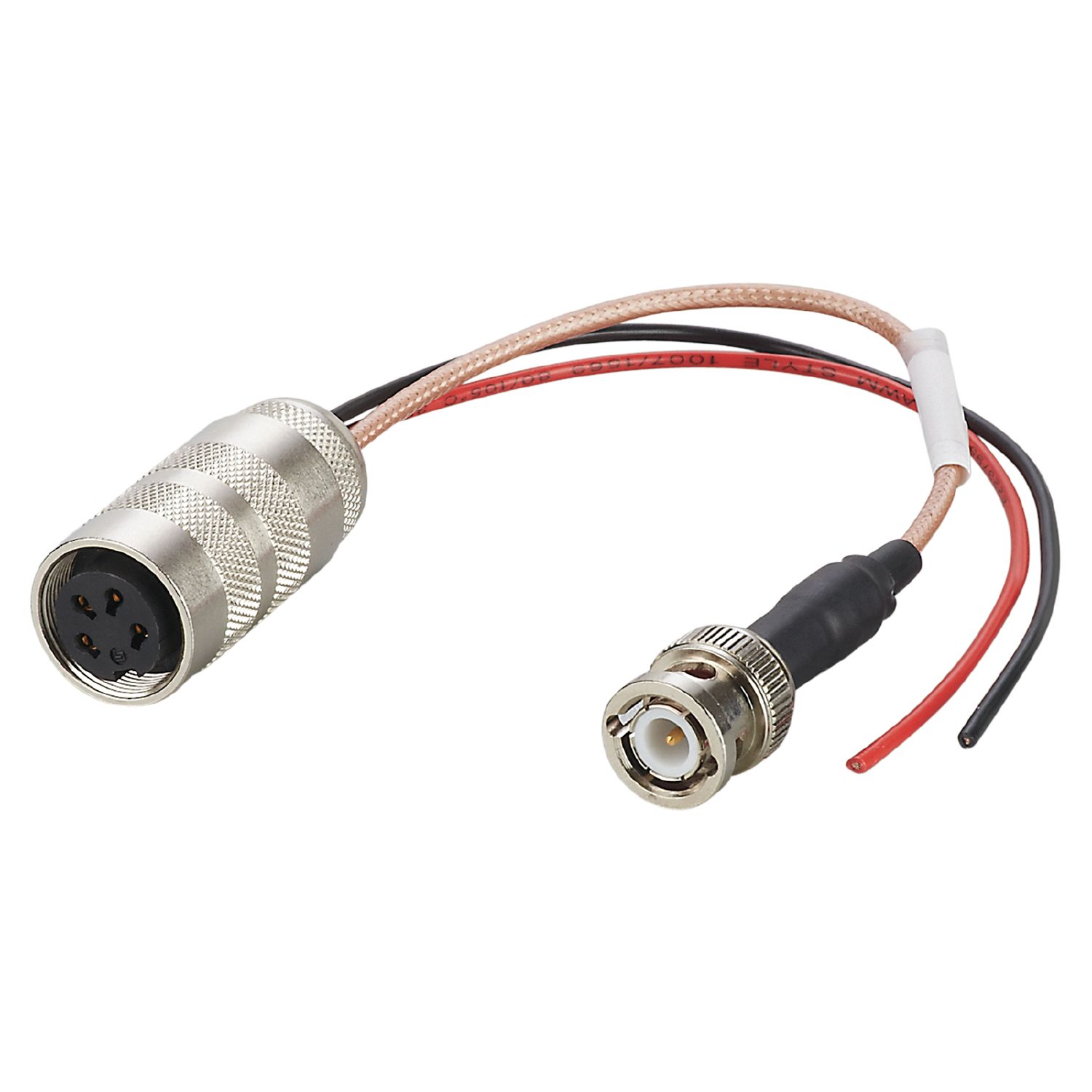

ADAPTER CABLE CAM BNC MALE-M16 4P FEMALE
Adapter cables for cameras with video output
E2M260
ADAPTER CABLE CAM BNC MALE-M16 4P FEMALE
Electrical data
| Operating voltage [V] | 12 DC; (±1,5V) |
|---|---|
| Overvoltage protection | yes |
Operating conditions
| Protection | IP 67 |
|---|
Mechanical data
| Weight [g] | 58.5 |
|---|---|
| Material | fixture: ABS |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: 1 x M16; coding: A |
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E2M260-00 — 09.11.2017 —
E2M260 –
ADAPTER CABLE CAM BNC MALE-M16 4P FEMALE
Electrical connection
- 1
- coax cable core video signal
- 2
- coax screen video GND
- 3
- U+
- 4
- 0 V
Connector: 1 x M16; coding: A
