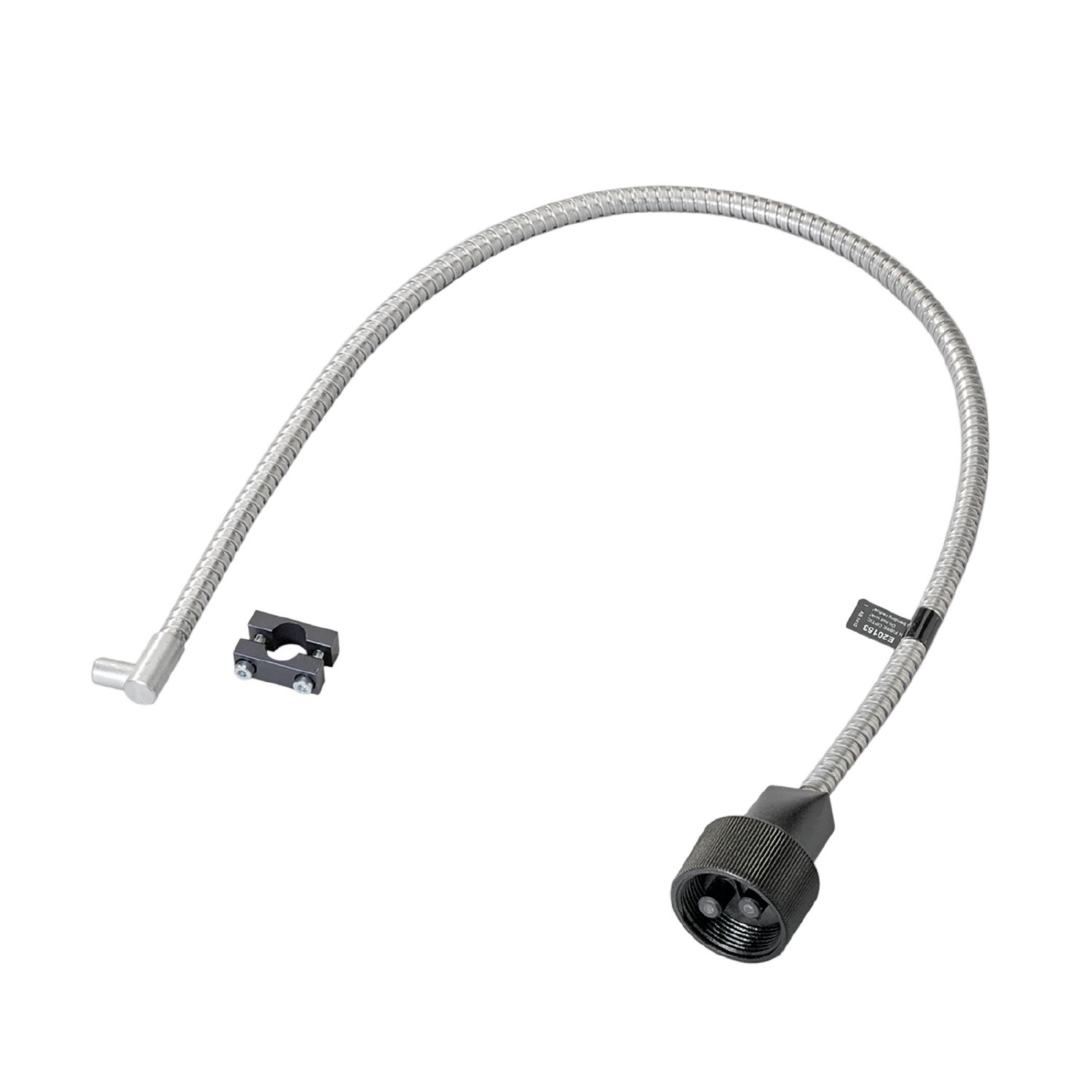

Fiber optic diffuse reflection sensor
E20153
FT-30-A-A-R8
Fiber optic diffuse reflection sensor
E20153
FT-30-A-A-R8
Article no longer available - archive entry
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | High temperature resistance; Robust design for use in harsh industrial environments |
Monitoring range
| Range with fiber optic amplifier type | OIF |
|---|
| Range fiber optics [mm] | 70 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...290 |
|---|
Mechanical data
| Weight [g] | 93.8 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter [mm] | 8 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 30; (for fixed installation) |
| Fiber arrangement |
|
| Material | Adapter: PA |
| Fiber material | glass |
| Fiber head material | aluminum |
| Fiber sheath material | aluminum |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
