E12074

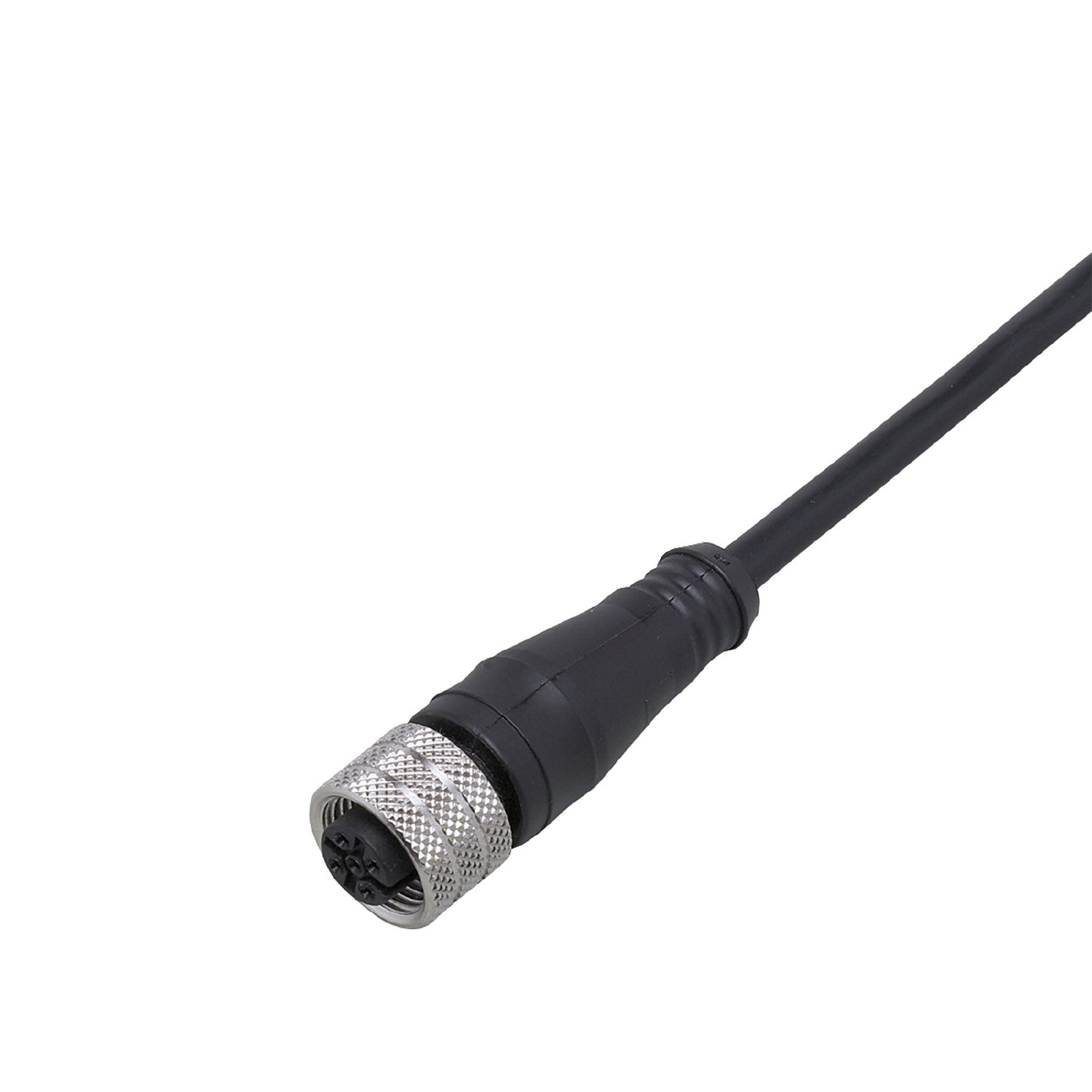

Female cordset

E12074

ADOGH050MSS0010K05

Female cordset

E12074

ADOGH050MSS0010K05

Article no longer available - archive entry

Alternative articles: EVC546 Product comparison: E12074 / EVC546 When selecting an alternative article and accessories please note that technical data may differ!

Application

System	Free from silicone; Halogen-free; gold-plated contacts; screened cable; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	< 30 AC / < 36 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Mechanical data

Weight [g]

439.4

Dimensions [mm]

15 x 15 x 46.5

Material

PUR

Molded-body material

PUR

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

Bending radius for flexible applications	min. 15 x cable diameter
Bending radius for fixed installation	min. 8 x cable diameter once only

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PUR, Halogen-free, black, Ø 5 mm, screened; 5 x 0.25 mm² (14 x Ø 0.15 mm )

Electrical connection - Socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 1.0...1.5 Nm; Shielded connection cable: shield connected

ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E12074-00 — 04.03.2014 —
