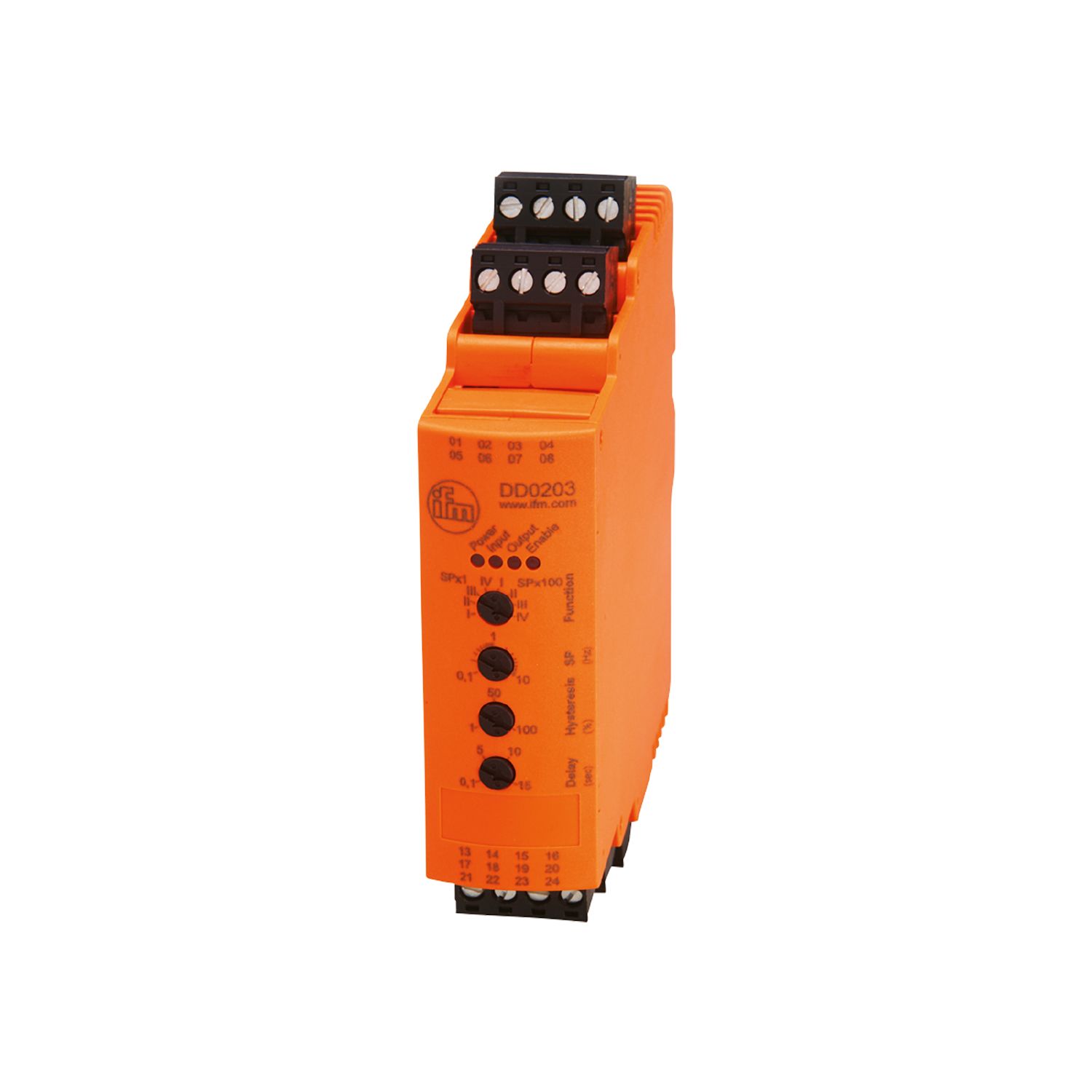

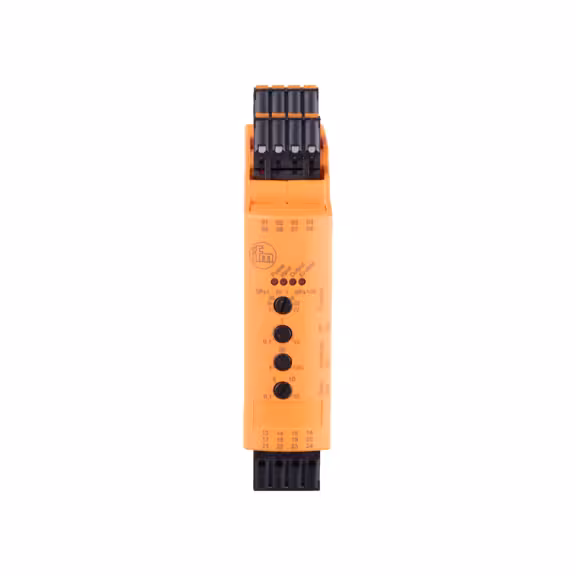

DD0203

Evaluation unit for speed monitoring

D200/FR1A 110-240VAC 24VDC

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For detecting frequency, speed and rotational speed
  • Reliable monitoring of overspeed or underspeed
  • Easy setting of the switch point via potentiometer
  • Clearly visible LEDs for displaying operation, function, switching status and release
  • Space-saving design
  • ce
  • eac
  • cul
Download
Technische Details
Product characteristics
Housing housing for DIN rail mounting
Dimensions [mm] 93 x 25.4 x 109.1
Application
Application universal evaluation of pulse sequences with regard to overspeed and underspeed; Rotational speed monitoring
Electrical data
Operating voltage tolerance 2 [%] > 20
Nominal voltage AC [V] 110...240
Nominal voltage DC [V] 27
Nominal voltage tolerance [%] > 20
Nominal voltage tolerance 2 [%] 20...10
Nominal frequency AC [Hz] 50...60
Insulation rating [V] 9
Max. power consumption AC [W] 6
Max. power consumption DC [W] 4
Auxiliary energy for sensors DC [V] 18.5...30; (SELV, ≤ 100 mA)
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of relay outputs: 1
Outputs
Number of digital outputs 1
Number of relay outputs 1
Contact rating 4 A (240 V AC, 24 V DC); (resistive load)
Short-circuit proof yes
Monitoring range
Sensing range adjustable no
Measuring/setting range
Setting range Hz [Hz] 0.1...1000
Accuracy / deviations
Hysteresis [% of Sr] 1...100
Reaction times
Start-up delay [s] 0.1...15
Software / programming
Adjustment of the switch point potentiometer
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -25...70
Max. relative air humidity [%] 80; (40 °C: 50 % non condensing)
Max. height above sea level [m] 2000
Protection IP 20
Protection rating terminals IP 20
Degree of soiling 2; (≤ 240 V AC)
Tests / approvals
Approval UL: N001
MTTF [years] 212
Mechanical data
Weight [g] 241
Housing housing for DIN rail mounting
Type of mounting rail; (TH35 EN 60715)
Dimensions [mm] 93 x 25.4 x 109.1
Material plastics: PC-GF20
Displays / operating elements
Display
voltage supply 1, green
input signal 1, yellow
Output 1, green
Enable signal 1, yellow
Accessories
Accessories (supplied)
connector: 5 x 4-wire, with screw connection, E40173
Electrical connection
Connection pin headers: 4 x ; Spacing: 5.0 mm
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — DD0203-00 — 13.02.2015 —
