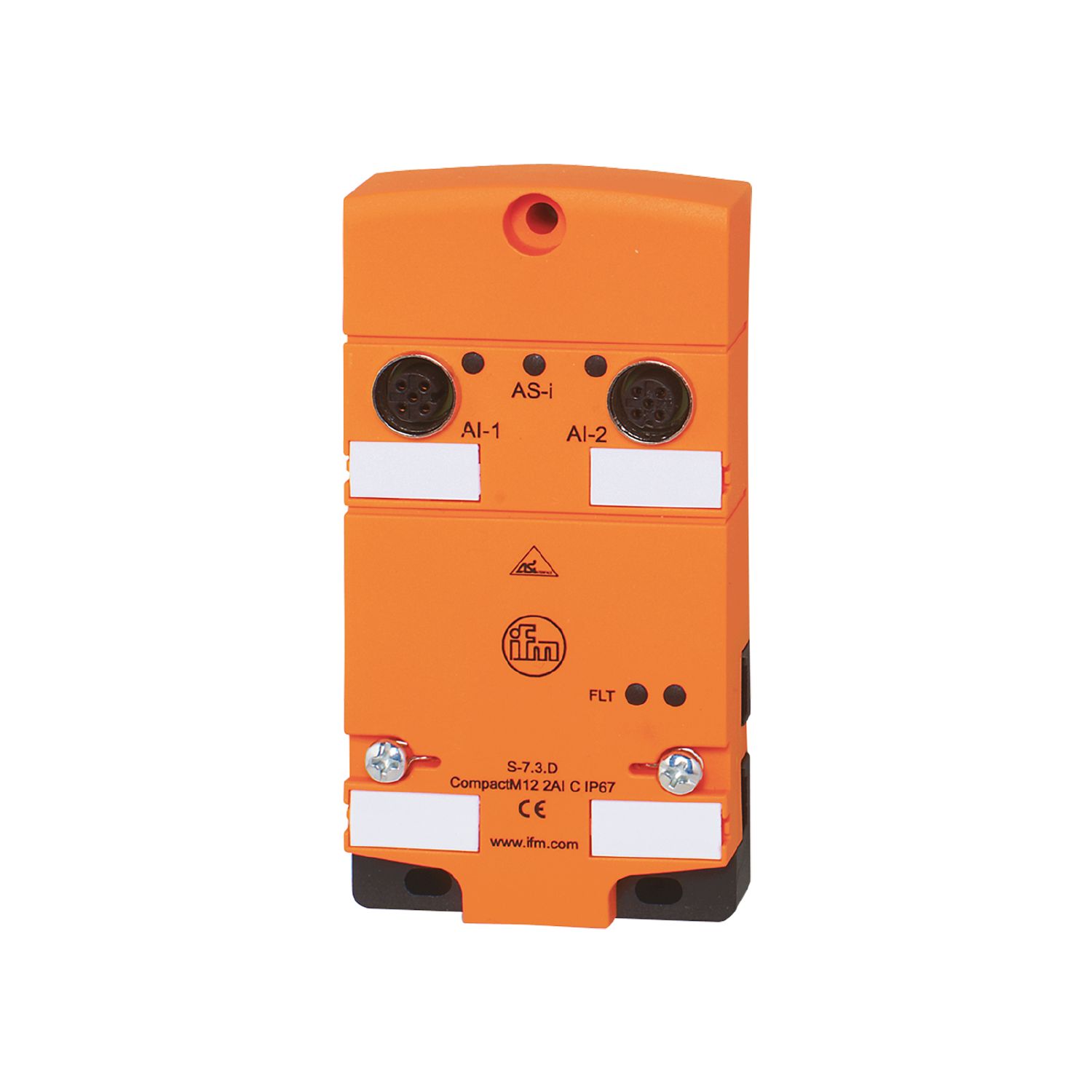

AS-Interface CompactLine module

CompactM12 2 AI C V4A

AC2402

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Easy to mount and wire
  • Fully potted for high shock and vibration resistance
  • Clearly visible powerful LEDs for displaying operation, function and error
  • High protection rating for the requirements of harsh industrial environments
  • Robust M12 connectors for connecting sensors and actuators
  • ce
  • asi
  • cul
Download
Technische Details
Electrical data
Operating voltage [V] 26.5...31.6 DC
Max. current consumption from AS-i [mA] 250
Reverse polarity protection yes
Inputs / outputs
Number of inputs and outputs Number of analog inputs: 2
Inputs
Number of analog inputs 2; (Anschluss von 2- und 3-Draht-Sensoren)
Analog input (current) [mA] 4...20
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67; (when flat cables are used E7400x / E7401x)
Tests / approvals
EMC
EN 50295
MTTF [years] 167
AS-i classification
AS-i version 2.11 + 3.0
AS-i addressing IR addressing possible
Extended addressing mode possible no
AS-i profile S-7.3.D
AS-i I/O configuration [hex] 7
AS-i ID code [hex] 3.D
AS-i certificate 99101
Mechanical data
Weight [g] 275.5
Type of mounting AS-i flat cable connection
Material PA; Socket: stainless steel (1.4404 / 316L); threaded inserts in the lower part: stainless steel (1.4404 / 316L); screws in the lower part: stainless steel (1.4578 / 316Cu); Piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
Power LED, green Voltage AS-i
errors LED, red
Function LED, yellow Channels AI1, AI2
Accessories
Accessories (optional)
Protective cap: M12, E73004
stainless steel sleeve, for installation in case of high mechanical stress , E70402
Remarks
Remarks
When the actuators are supplied from AS-i the load must not exceed a maximum of 200 mA.
There is an electrical connection between the sensor and AS-i.
The module is exclusively supplied via the yellow AS-i cable.
Pack quantity 1 pcs.
Electrical connection
Connector: M12
