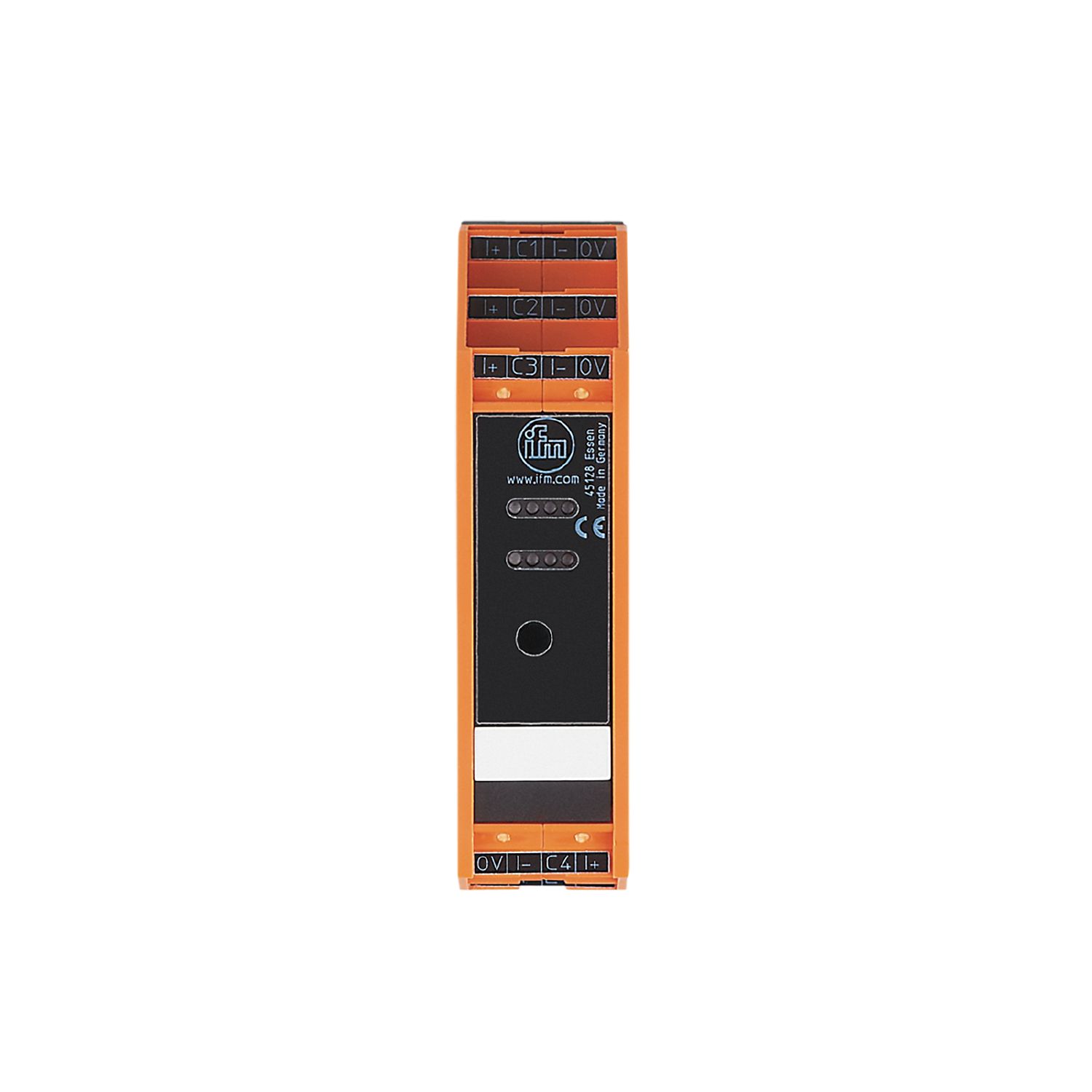

AS-Interface control cabinet module

AC2220

SmartLine25 4AI (Pt100)C IP20

AS-Interface control cabinet module AC2220
AS-Interface control cabinet module AC2220
AS-Interface control cabinet module AC2220
AS-Interface control cabinet module AC2220
AS-Interface control cabinet module AC2220
AS-Interface control cabinet module AC2220

AS-Interface control cabinet module

AC2220

SmartLine25 4AI (Pt100)C IP20

  • For use in control cabinets
  • Simple and fast wiring by means of cage clamps
  • Space-saving design
  • Double terminals for daisy-chaining the voltage supply
  • Clearly visible powerful LEDs for displaying operation, switching status and function
Article to be discontinued
Alternative articles: AC3222 Product comparison: AC2220 / AC3222 When selecting an alternative article and accessories please note that technical data may differ!
  • ce
  • asib
  • cul
Product characteristics
Number of inputs and outputs Number of Pt100 inputs: 4
Measuring range [°C] -200...850
Application
Application I/O modules for control cabinet installations
Electrical data
Operating voltage [V] 26.5...31.6 DC
Max. current consumption from AS-i [mA] 80
Reverse polarity protection yes
Inputs / outputs
Number of inputs and outputs Number of Pt100 inputs: 4
Inputs
Number of Pt100 inputs 4
Sensor supply of the inputs AS-i
Voltage supply [V] 24
Max. total current rating of inputs [mA] 80
Digital inputs protected against short circuits yes
Resolution of analog input 16 / 0.1 °C
Measuring/setting range
Measuring range [°C] -200...850
Operating conditions
Ambient temperature [°C] 0...70
Storage temperature [°C] -25...85
Protection IP 20
Tests / approvals
EMC
EN 50295
MTTF [years] 140
AS-i classification
AS-i addressing Addressing socket
AS-i master profile M3; M4
AS-i profile S-7.3.E
AS-i I/O configuration [hex] 7
AS-i ID code [hex] 3.E
Mechanical data
Weight [g] 155.5
Type of mounting Mounting on DIN rail
Material PBT
Displays / operating elements
Display
Switching status LED, yellow Channels 1...4
Power LED, green Voltage AS-i - AS-i
errors LED, red
Remarks
Remarks
cULus - Class 2 source required
Pack quantity 1 pcs.
Electrical connection
Connection COMBICON:
