AC2219

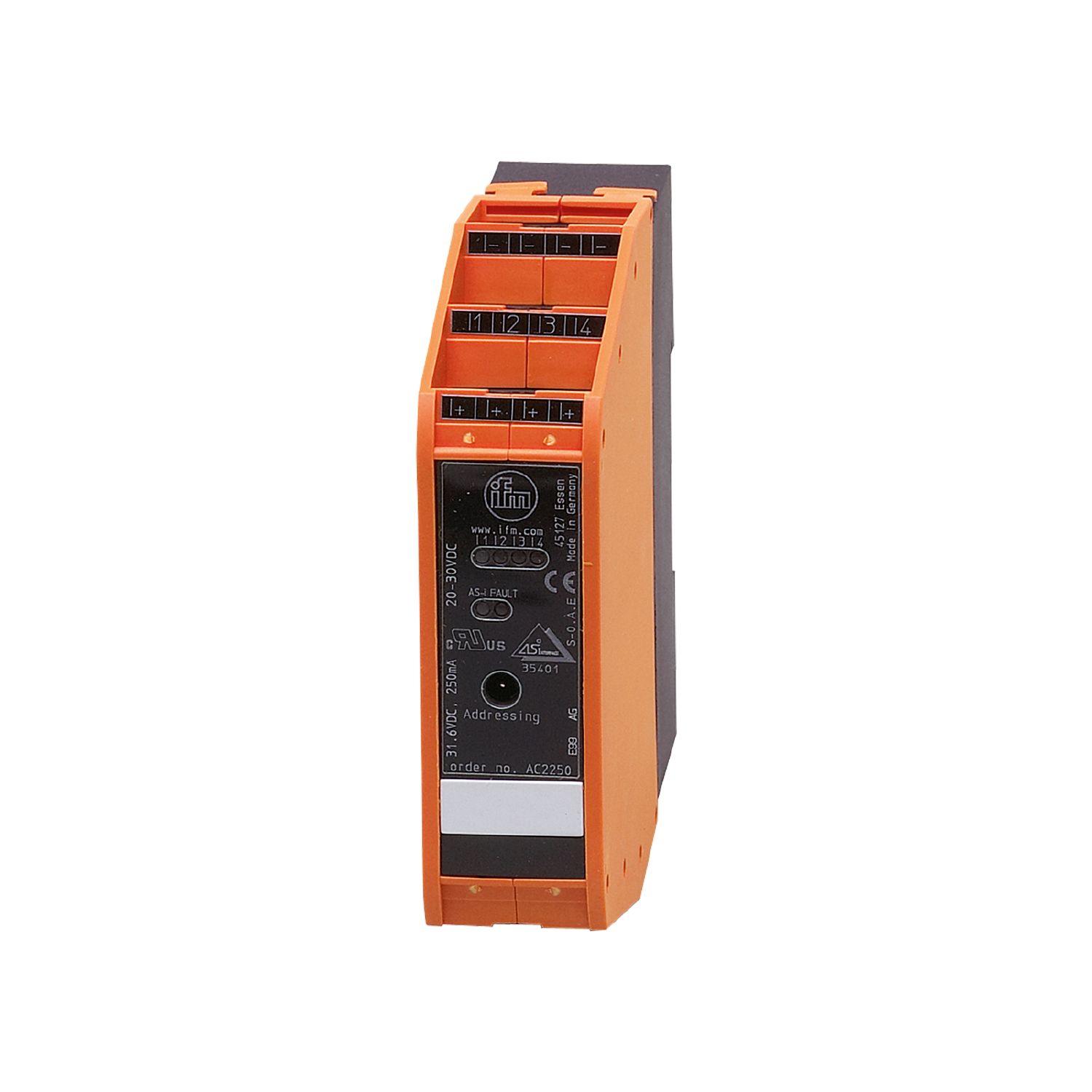

AS-Interface control cabinet module

AC2219

SmartLine25 4AO (V) C IP20

AS-Interface control cabinet module

AC2219

SmartLine25 4AO (V) C IP20

For use in control cabinets
Simple and fast wiring by means of cage clamps
Space-saving design
Double terminals for daisy-chaining the voltage supply
Clearly visible powerful LEDs for displaying operation, switching status and function

Article to be discontinued

Alternative articles: AC3219 Product comparison: AC2219 / AC3219 When selecting an alternative article and accessories please note that technical data may differ!

Application

Application	I/O modules for control cabinet installations

Electrical data

Operating voltage [V]	26.5...31.6 DC; (cULus - Class 2 source required)
Current consumption [mA]	12...57; (External supply)
Max. current consumption from AS-i [mA]	57; (with external supply: 25 mA)
Reverse polarity protection	yes
Max. current load total [A]	0.5; (with external supply; with external supply: 100 mA)
Additional voltage supply [V]	24 DC; (to PELV)
Additional voltage supply	optional

Inputs / outputs

Number of inputs and outputs	Number of analog outputs: 4

Outputs

Number of analog outputs	4; (Anschluss von 2-Draht-Aktuatoren oder 4-Draht-Aktuatoren mit separater 24 V-Versorgung)
Max. load [Ω]	600
Analog voltage output [V]	0...10
Min. load resistance [Ω]	1000
Overload protection	yes
Resolution of analog output	16 (1 bit = 1 µV)
Actuator supply outputs	AS-i / AUX

Operating conditions

Ambient temperature [°C]	0...70
Storage temperature [°C]	-20...85
Protection	IP 20

Tests / approvals

EMC

EN 50295

MTTF [years]

140

AS-i classification

AS-i addressing

Addressing socket

AS-i master profile

M3; M4

AS-i profile

S-7.3.6

AS-i I/O configuration [hex]

AS-i ID code [hex]

3.6

Parameter bits

Parameter bit	Description
P0	not used	/ 1	reserved	/ 0	reserved
P1	not used	/ 1	reserved	/ 0	reserved
P2	peripheral fault indication	: 1	activated	/ 0	disabled
P3	not used	/ 1	reserved	/ 0	reserved

Mechanical data

Weight [g]	174.5
Type of mounting	Mounting on DIN rail
Material	PA 6.6

Displays / operating elements

Display

Power	LED, green Voltage AS-i / 24 V AUX
errors	LED, red
Function	LED, yellow Channels 1...4

Accessories

Accessories (optional)

Combicon connector

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	COMBICON:

ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — AC2219-01 — 24.01.2024 —
