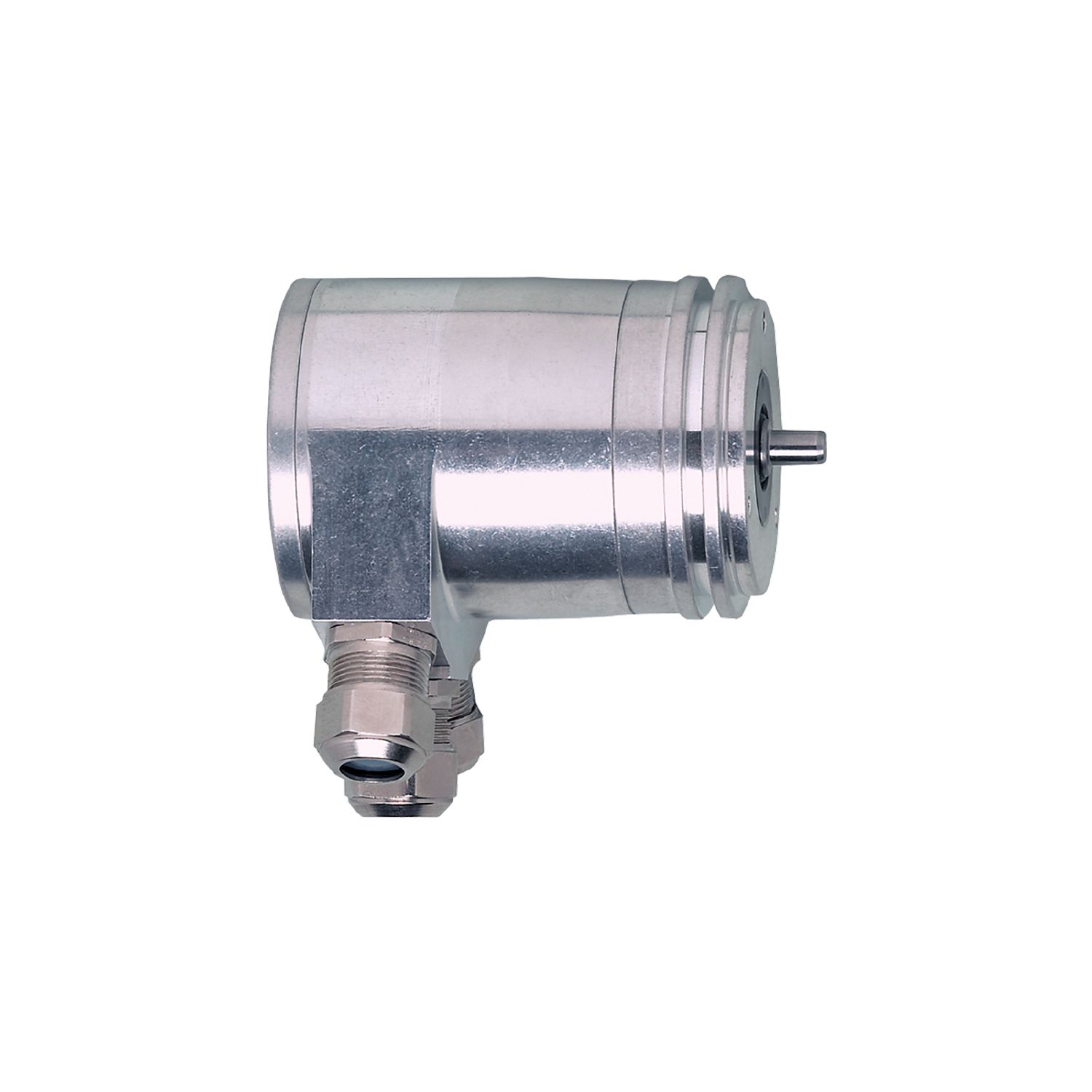

Absolute multiturn encoder with solid shaft
RM3001
RMU Profibus
Absolute multiturn encoder with solid shaft
RM3001
RMU Profibus
- For precise position, speed, angular and linear measurement
- Direct output of the values via PROFIBUS interface
- Robust housing for use in harsh industrial environments
- High shock and vibration resistance
- Easy wiring and programming
Article no longer available - archive entry
Alternative articles: RM3006 Product comparison: RM3001 / RM3006 When selecting an alternative article and accessories please note that technical data may differ!
Product characteristics
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|---|
| Communication interface | PROFIBUS DP |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 6 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 150 |
| Max. revolution electrical [U/min] | 6000 |
Outputs
| Code | Dual code |
|---|
Measuring/setting range
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|
Software / programming
| Parameter setting options | counting direction of the code values; Resolution; zero point; limit switches HI and LO; motion indicator; separation multiturn/singleturn |
|---|---|
| Diagnostic functions | alarms; warnings; status; serial number of the encoder |
| Addressing | address selector switch; 0...126 |
Interfaces
| Communication interface | PROFIBUS DP |
|---|
| Transmission standard | DPV0 Class 2 (EN50170) |
|---|---|
| Transmission rate | ...12 Mbit/s |
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|---|
| Protection | IP 66; (on the housing: IP 67; on the shaft: IP 66) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
Mechanical data
| Weight [g] | 652 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 90.5 | |
| Materials | aluminium | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Max. starting torque [Nm] | 1 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 6 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 10 | |
| Max. shaft load radial (at the shaft end) [N] | 20 | |
| Fixing flange | synchro-flange |
Electrical connection
| terminal strip in the terminal chamber: ; Maximum cable length: 100 m; 400 m (1.5 Mb/s) |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — RM3001-02 — 12.02.2014 —
RM3001 –
RMU Profibus
- 1
- M4 Depth 5 mm
Electrical connection
terminal strip in the terminal chamber: ; Maximum cable length: 100 m; 400 m (1.5 Mb/s)
